Pilot EX, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Driving Assistance Systems
>>
Lane Keeping Assist System (LKAS) System Description - System Diagram
>>

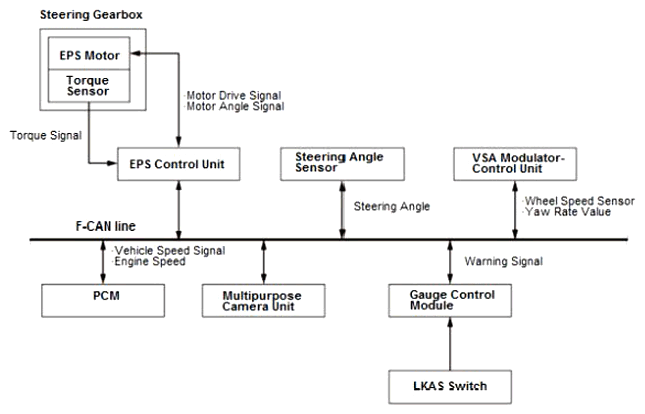

LKAS Control Block Diagram
LKAS Control Block Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
