Transmission End Crankshaft Oil Seal Replacement - In Car: Replacement

  1. Transmission - Remove
    1. Remove the transmission:
  2. Pressure Plate, Clutch Disc, and Flywheel - Remove (M/T)
  3. Drive plate - Remove (CVT)
  4. Transmission End Crankshaft Oil Seal - Remove

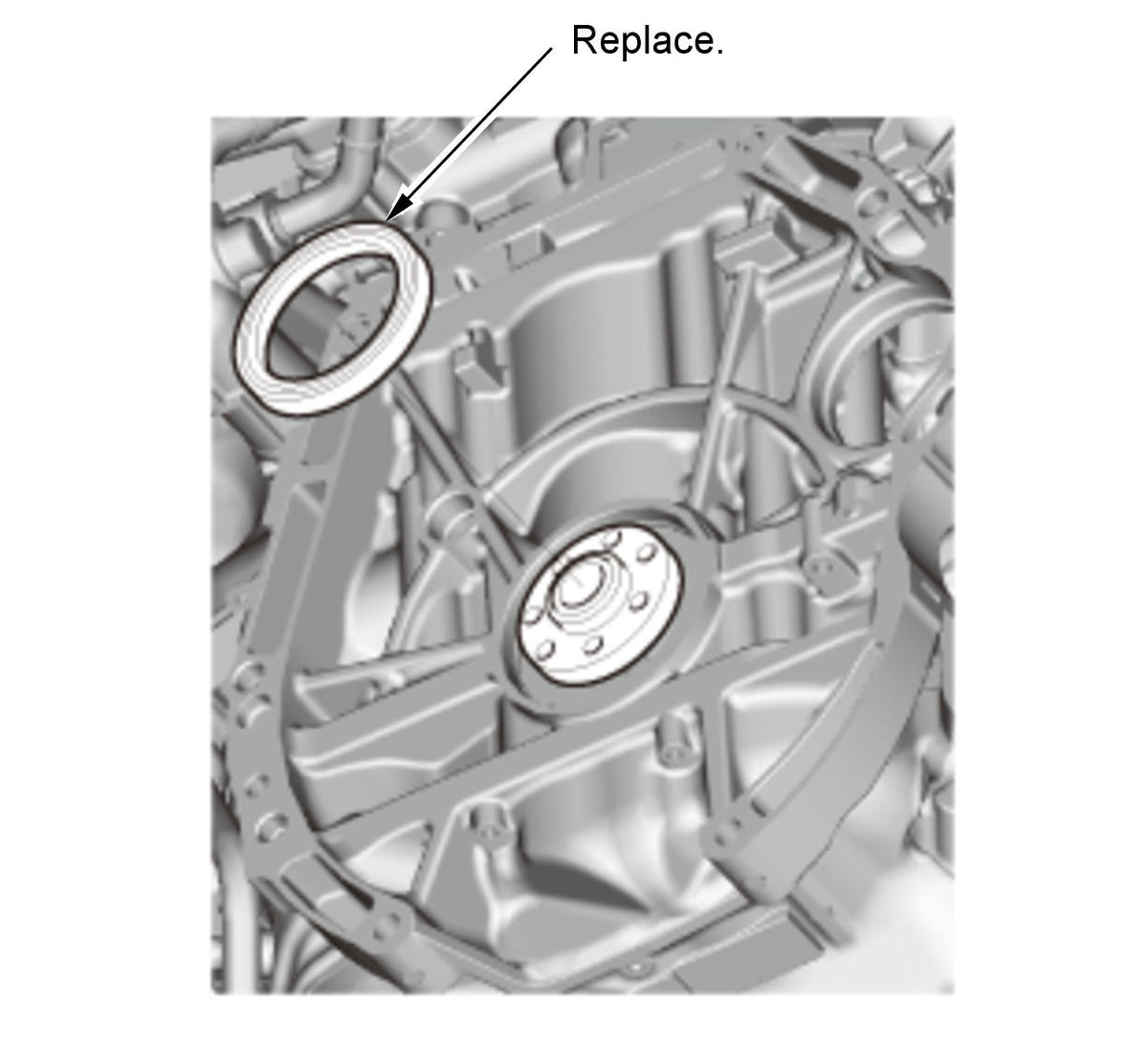

    GHH435276Courtesy of HONDA, U.S.A., INC.
  5. Transmission End Crankshaft Oil Seal - Install
    GHH435277Courtesy of HONDA, U.S.A., INC.
    		 1. Clean and dry the transmission end crankshaft oil seal housing.

    2. Apply a light coat of new engine oil to the lip of a new transmission end crankshaft oil seal.

    3. Use the driver handle, 15 x 135L (A) and the oil seal driver attachment, 96 mm (B) to drive a new transmission end crankshaft oil seal squarely into the engine block to the specified installed height.

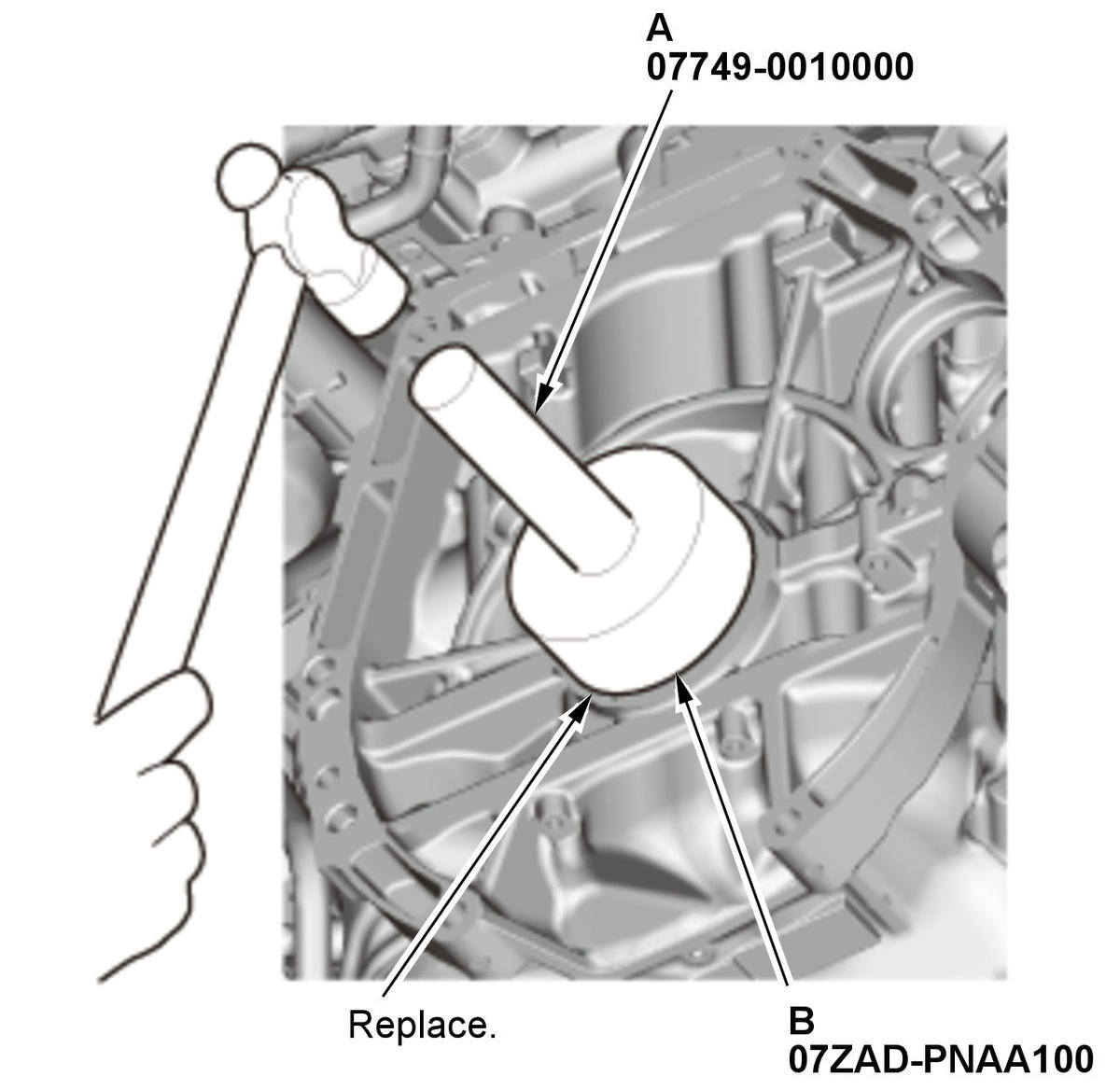

    GHH435278Courtesy of HONDA, U.S.A., INC.

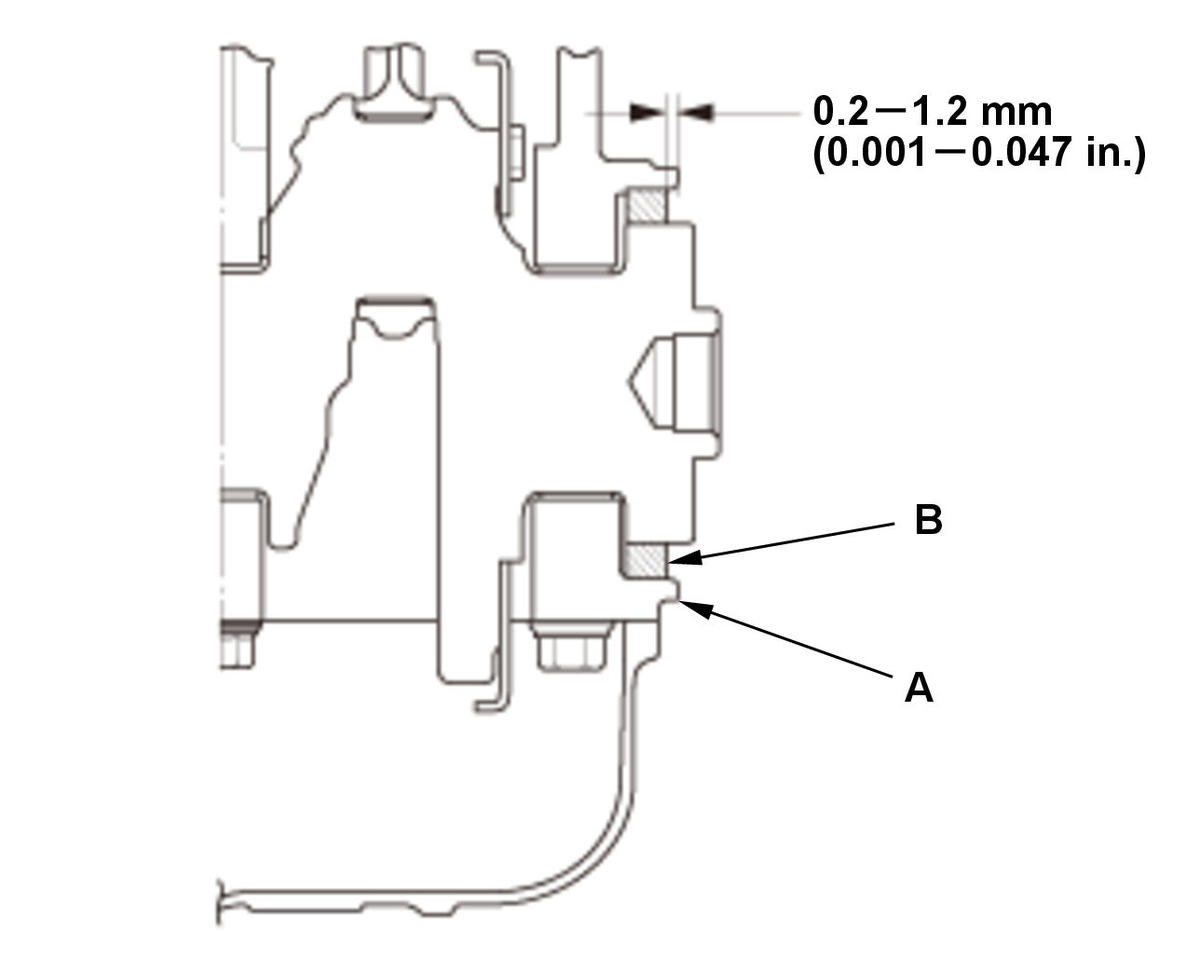

    		 4. Measure the distance between the engine block (A) and the transmission end crankshaft oil seal (B).

    Transmission End Crankshaft Oil Seal Installed Height

    5. Clean the excess oil off the crankshaft, and check that the transmission end crankshaft oil seal lip is not distorted.
    0.2-1.2 mm (0.008-0.047 in)
  6. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
