Front Passenger's Power Window Motor: Test

Motor Test

1. Front Passenger's Door Panel - Remove Front (Door) Passenger's Door Panel - Remove
2. Front Passenger's Power Window Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

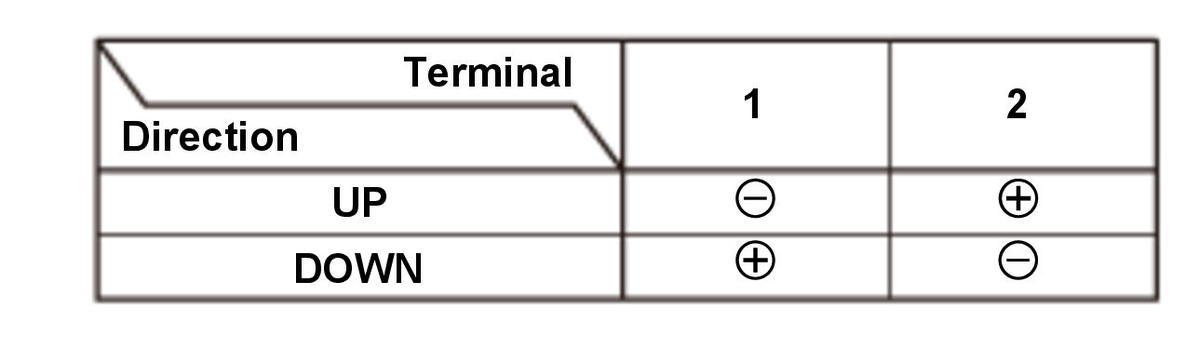

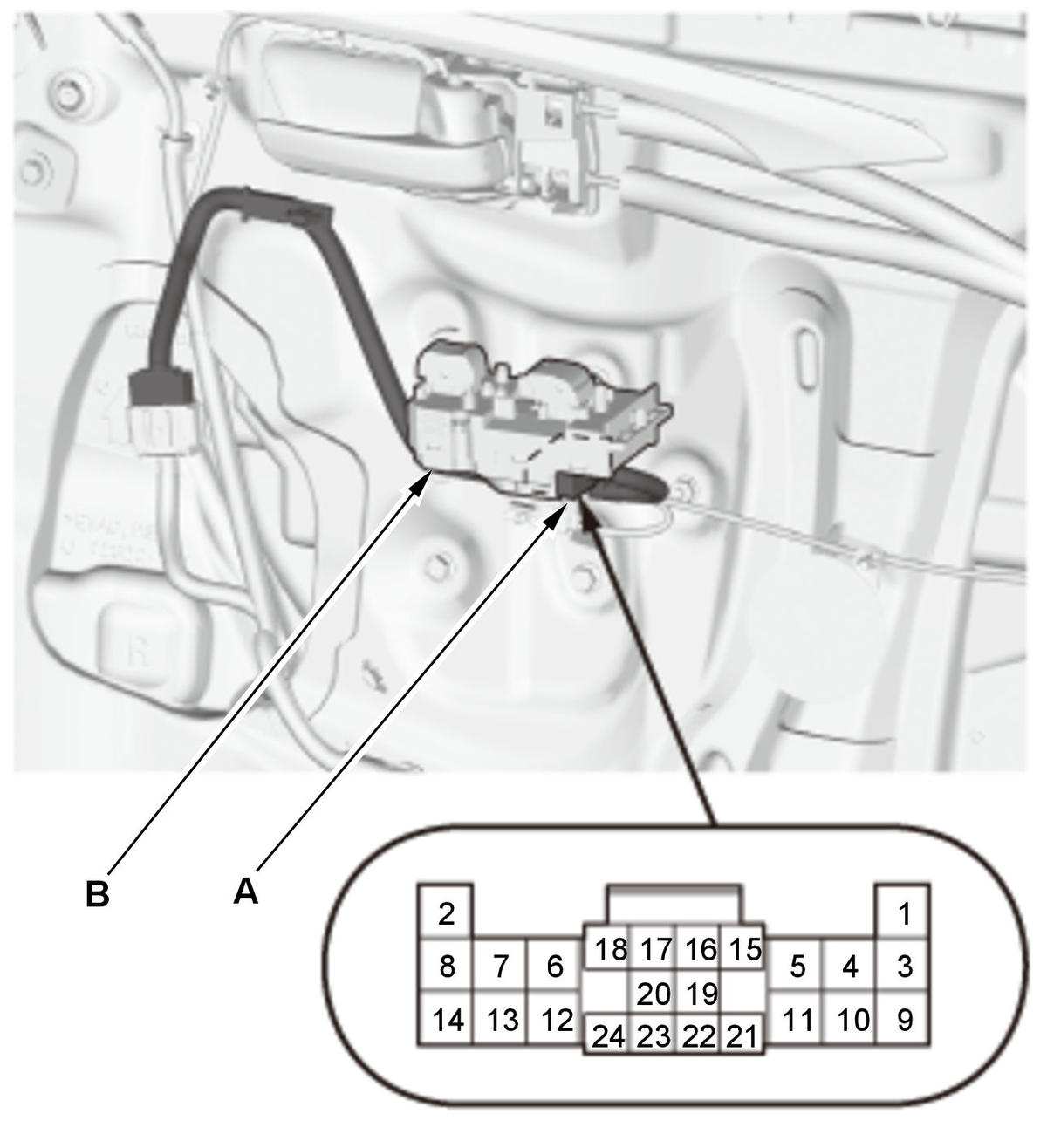

   1. Connect the connector (A), then install the door panel as needed. 2. Test the motor in each direction by connecting 12 volt battery power and ground to the connector (B) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the front passenger's door regulator Front Door (Passenger's) Door Regulator - Removal , then go to step 3. If the motor runs smoothly, go to the Hall IC Unit (Pulser) Test.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

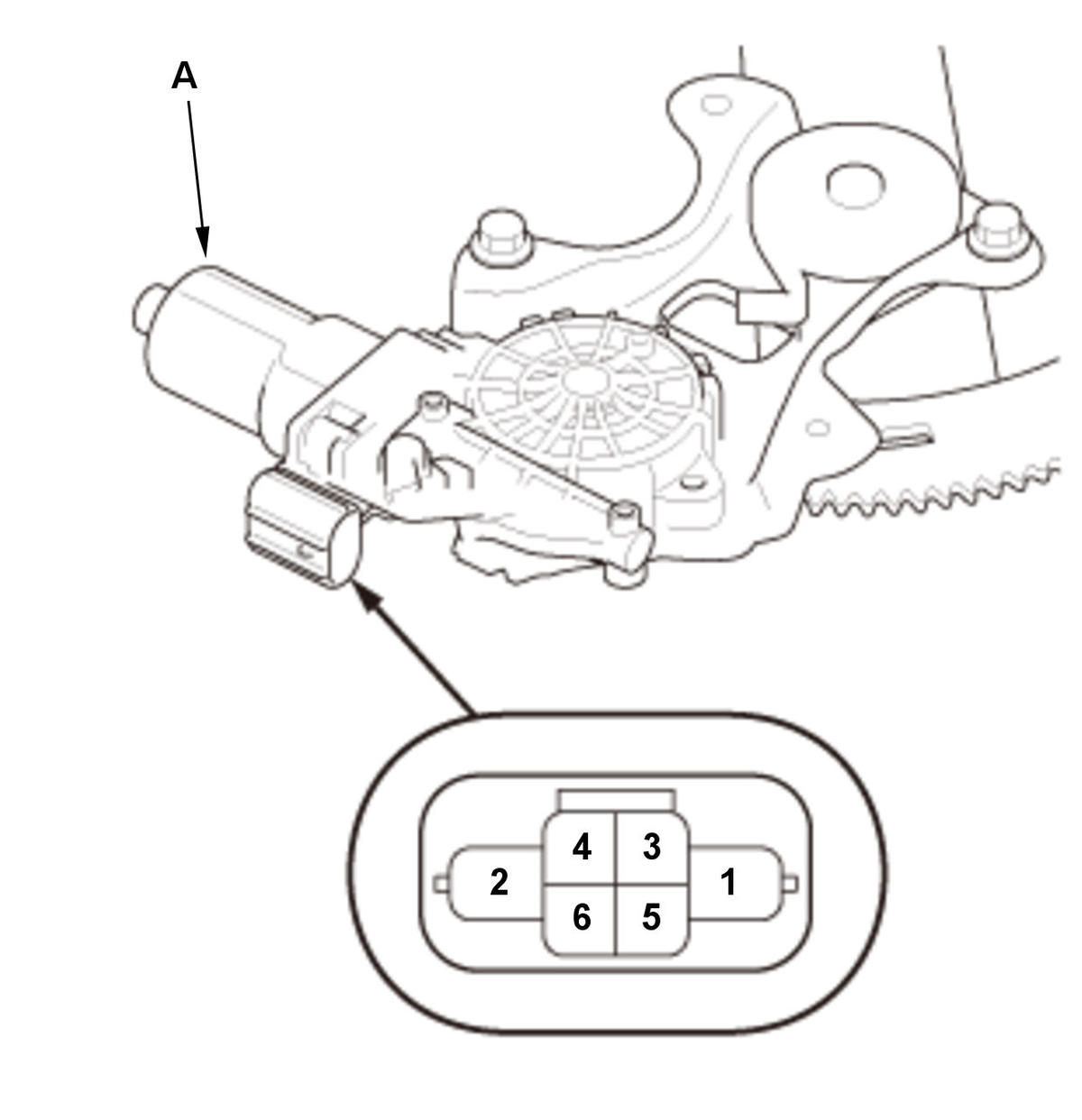

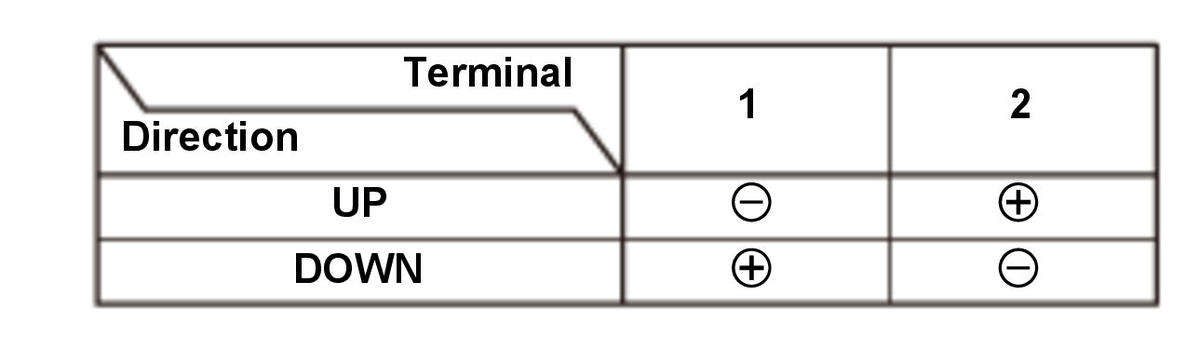

   3. Test the front passenger's power window motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 4. If the motor does not run or fails to run smoothly, the front passenger's power window motor is faulty; replace the front passenger's power window motor. Refer to: Front Passenger's Power Window Motor Removal and Installation If the motor runs smoothly, troubleshoot the front passenger's power window motor circuit.

   Hall IC Unit (Pulser) Test

3. Hall IC Unit (Pulser) - Test

   Courtesy of HONDA, U.S.A., INC.

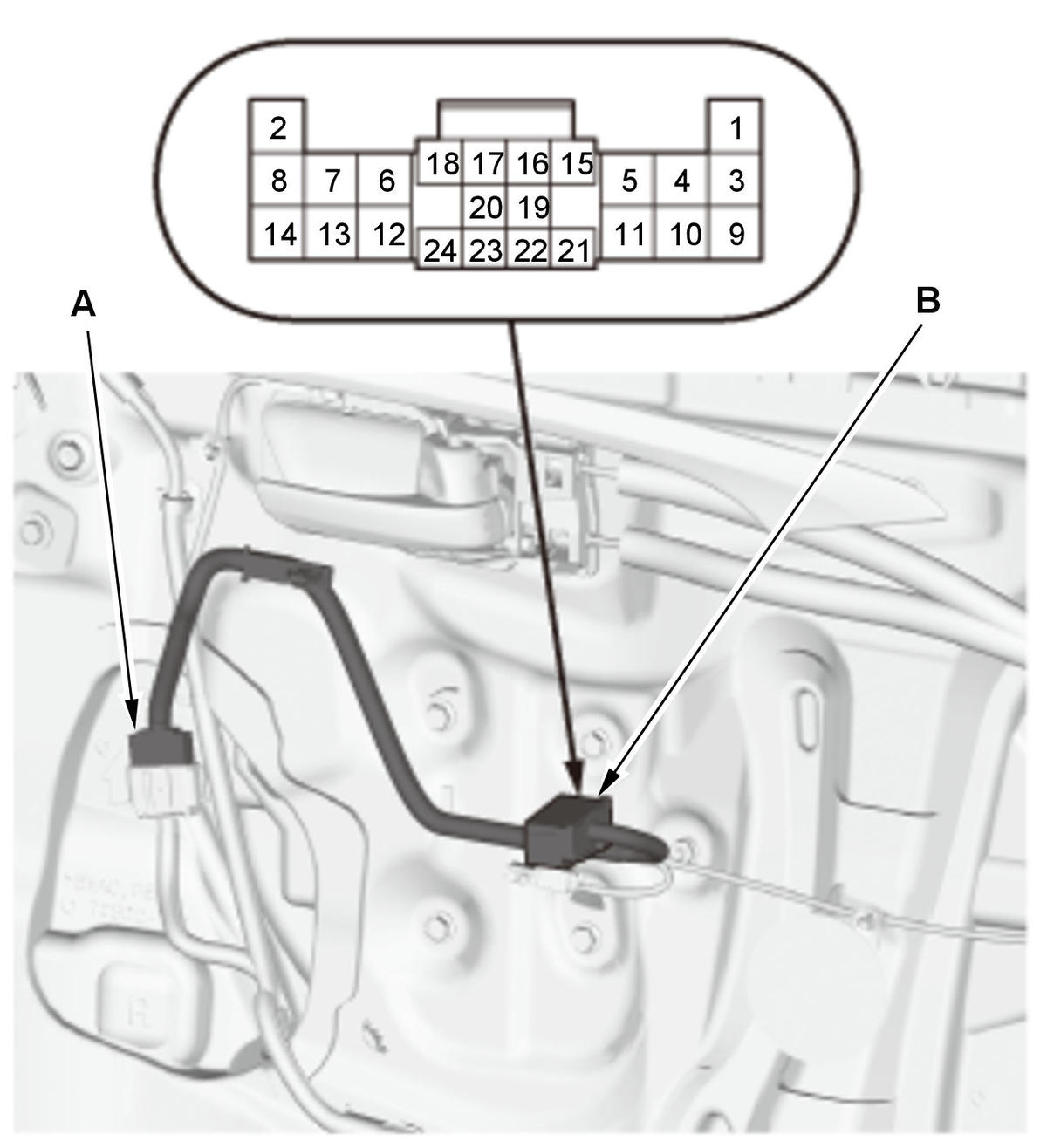

   1. Remove the front passenger's power window switch - Refer to: Front Passenger's Power Window Switch Removal and Installation, 2. Connect the connector (A). 3. Turn the vehicle to the ON mode. 4. Do the front passenger's power window switch input test terminals No. 21, No. 22, and No. 23 . If the voltage is as specified, replace the front passenger's power window switch - Refer to: Front Passenger's Power Window Switch Removal and Installation, or Rear Power Window Switch Removal and Installation (B). If the voltage is not specified, the Hall IC Unit (Pulser) is faulty; replace the front passenger's power window motor .

   MTR SVCC circuit

   Front passenger's power window switch connector
   No. 21	Body ground

   MTR FLSA and MTR FLSB circuits:

   Front passenger's power window switch connector
   No. 23	No. 10
   No. 22	No. 10

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

5. Power Window Control Unit - Reset
