BSI Radar Unit Mounting Area Check: Adjustment

  1. BSI Radar Unit - Remove

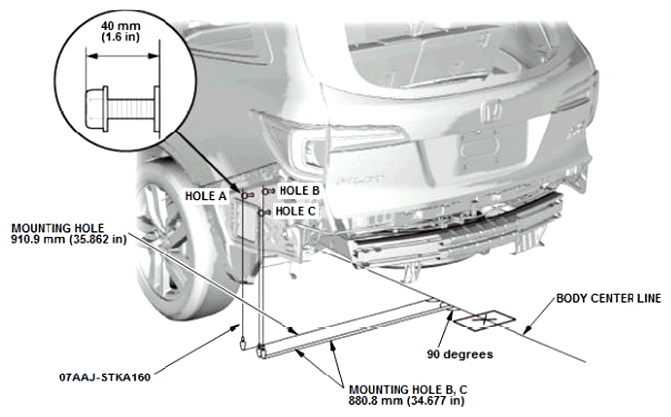

  2. Upper Body Measuring Dimensions - BSI Radar Unit Mounting Positions
    1. Install bolts on each hole of the body panel.
    2. Measure the length from the tip of the bolt installed to each hole A, B, and C to the body center line.
      NOTE: If measured lengths between a body center line and hole A to C are different from the standard, take the vehicle to a body repair shop to have the panel adjusted to standard.
    G12436901Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. BSI Radar Unit - Install
  4. Rear Bumper - Install
