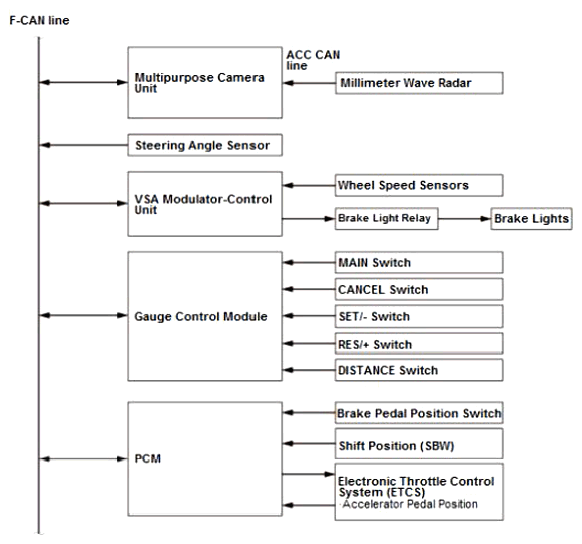

Adaptive Cruise Control (ACC) System Description - System Diagram
Adaptive Cruise Control (ACC) System Description - System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
