Valve Stem-to-Guide Clearance Inspection (1.5L Engine): Inspection

WARNING:

Please carefully read "Precaution for Handling Sodium-Filled Valves" and follow the instructions as the exhaust valves contain metal sodium .

1. Valve - Remove
2. Valve - Inspect
3. Valve Stem To Guide Clearance - Inspect

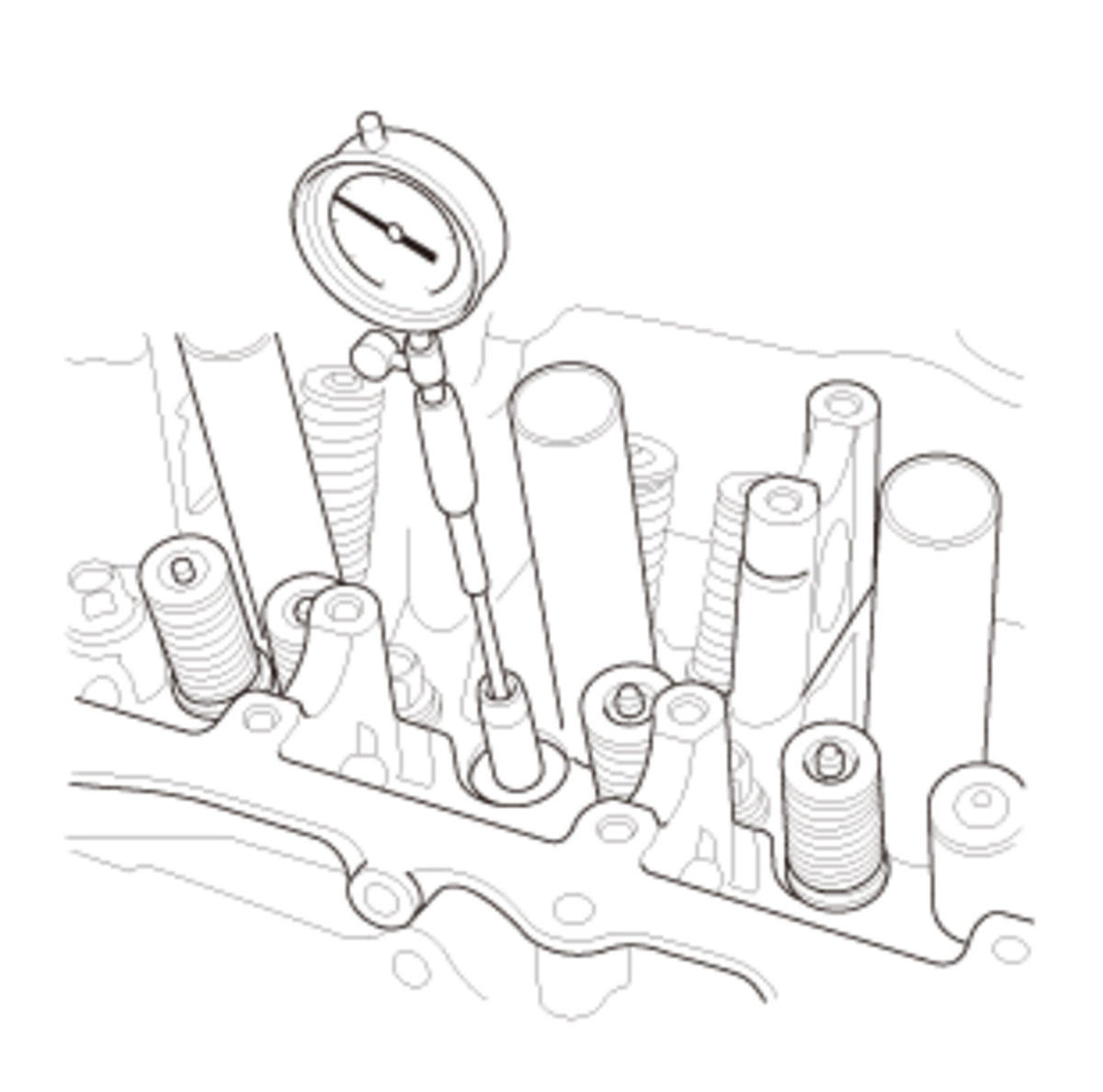

   1. Subtract the O.D. of the valve stem, measured with a micrometer, from the I.D. of the valve guide measured with an inside micrometer or a ball gauge. Take the measurements in three places along the valve stem and three places inside the valve guide. The difference between the largest guide measurement and the smallest stem measurement should not exceed the service limit.

   Intake Valve Stem-to-Guide Clearance
   Standard (New):	0.025-0.050 mm (0.00098-0.00197 in)
   Service Limit:	0.08 mm (0.0031 in)
   Exhaust Valve Stem-to-Guide Clearance
   Standard (New):	0.055-0.080 mm (0.00217-0.00315 in)
   Service Limit:	0.11 mm (0.0043 in)

   Courtesy of HONDA, U.S.A., INC.

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
