Removal and Installation

NOTE:

Where icon is shown, further information shown below.

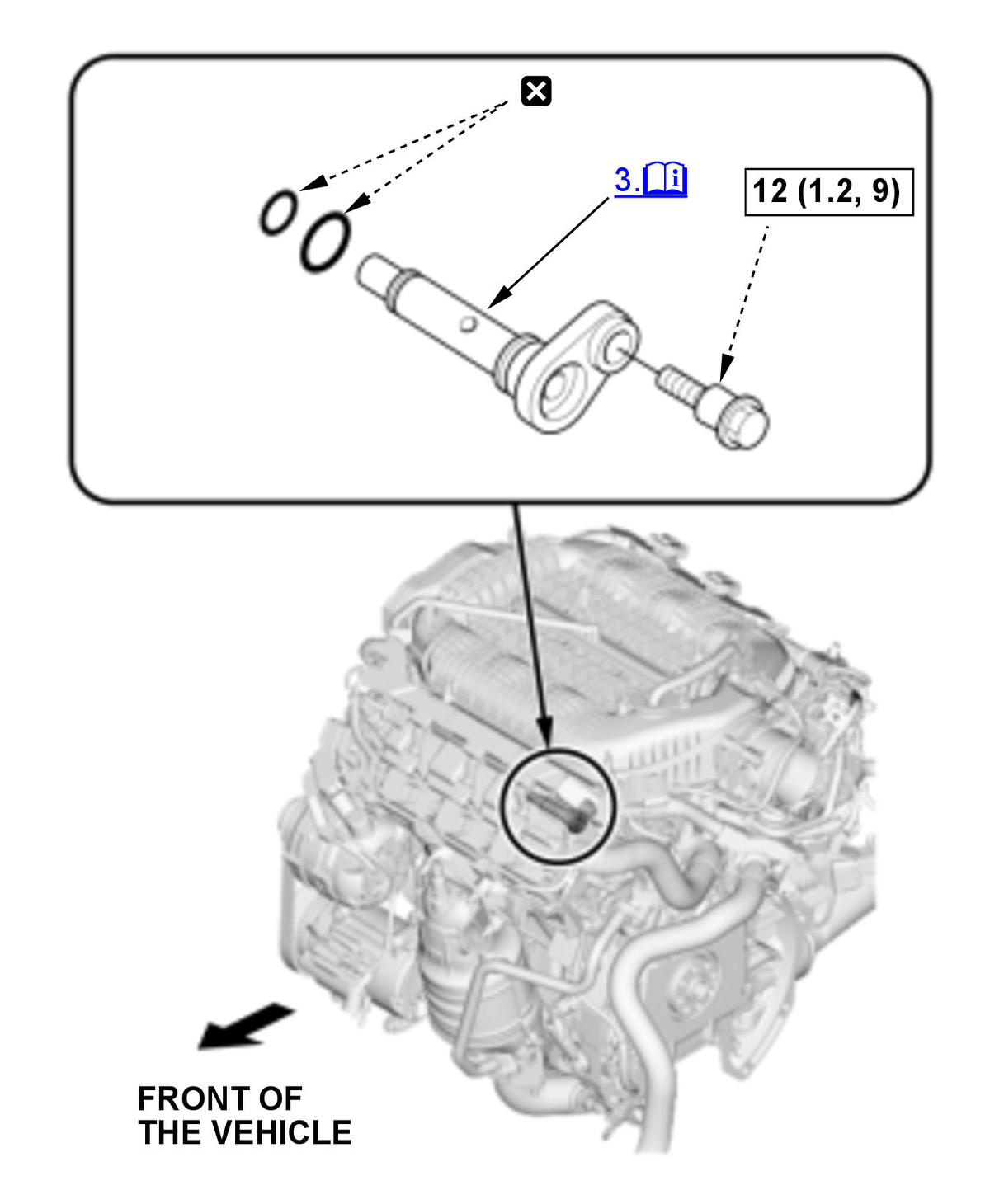

Fig 1: PCV Valve Bolt With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

Engine Cover - Remove

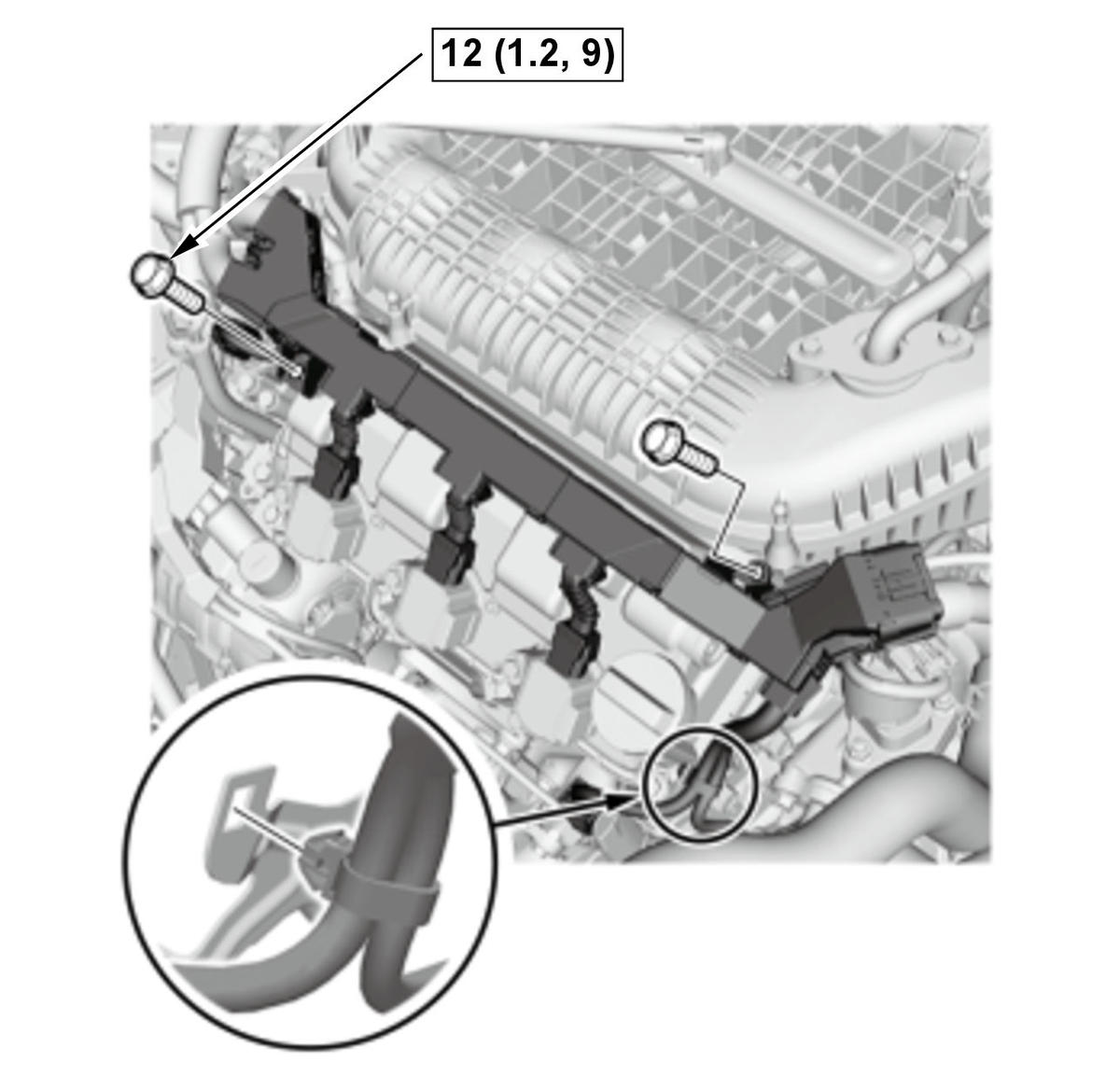

Engine Harness Holder - Lift

Courtesy of HONDA, U.S.A., INC.
PCV Valve - Remove
NOTE:
Take care not to spill any oil on the hot exhaust manifold.

All Removed Parts - Install

1. Install the parts in the reverse order of removal with new O-rings.

NOTE: Make sure the O-rings are in place.
