Driving Position Memory System (DPMS) Component Location Index (Driving Position Memory System (DPMS)) (2020 2021 2022 2023 2024 2025)

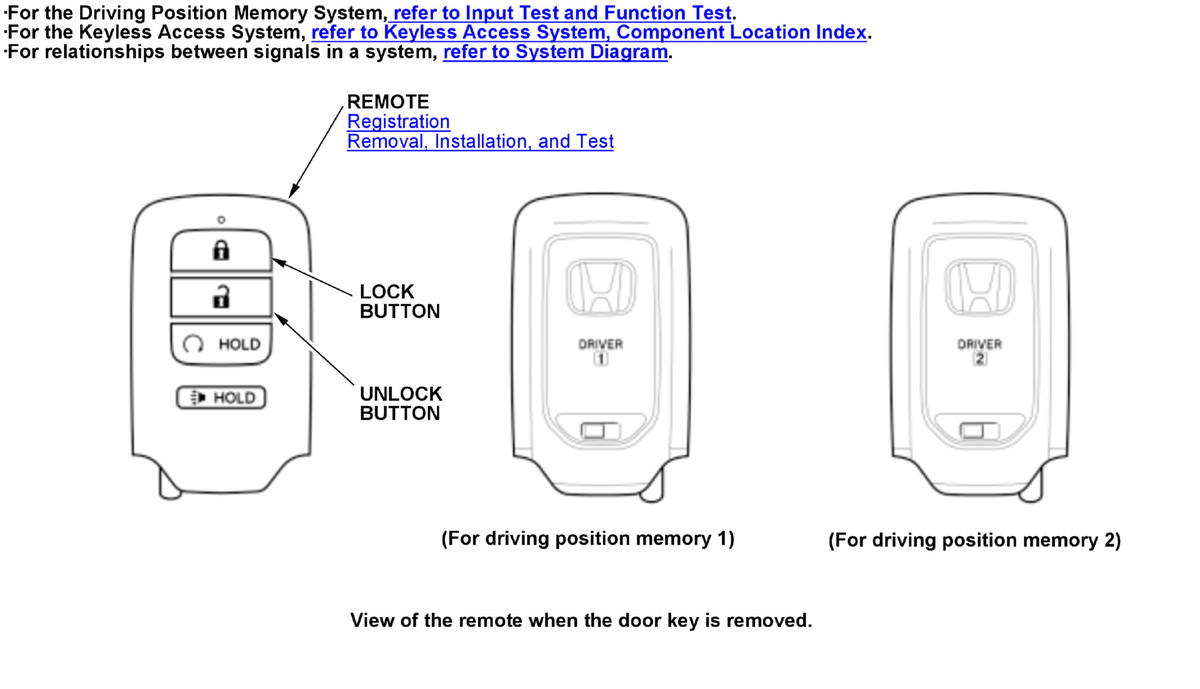

GHH457371Courtesy of HONDA, U.S.A., INC.

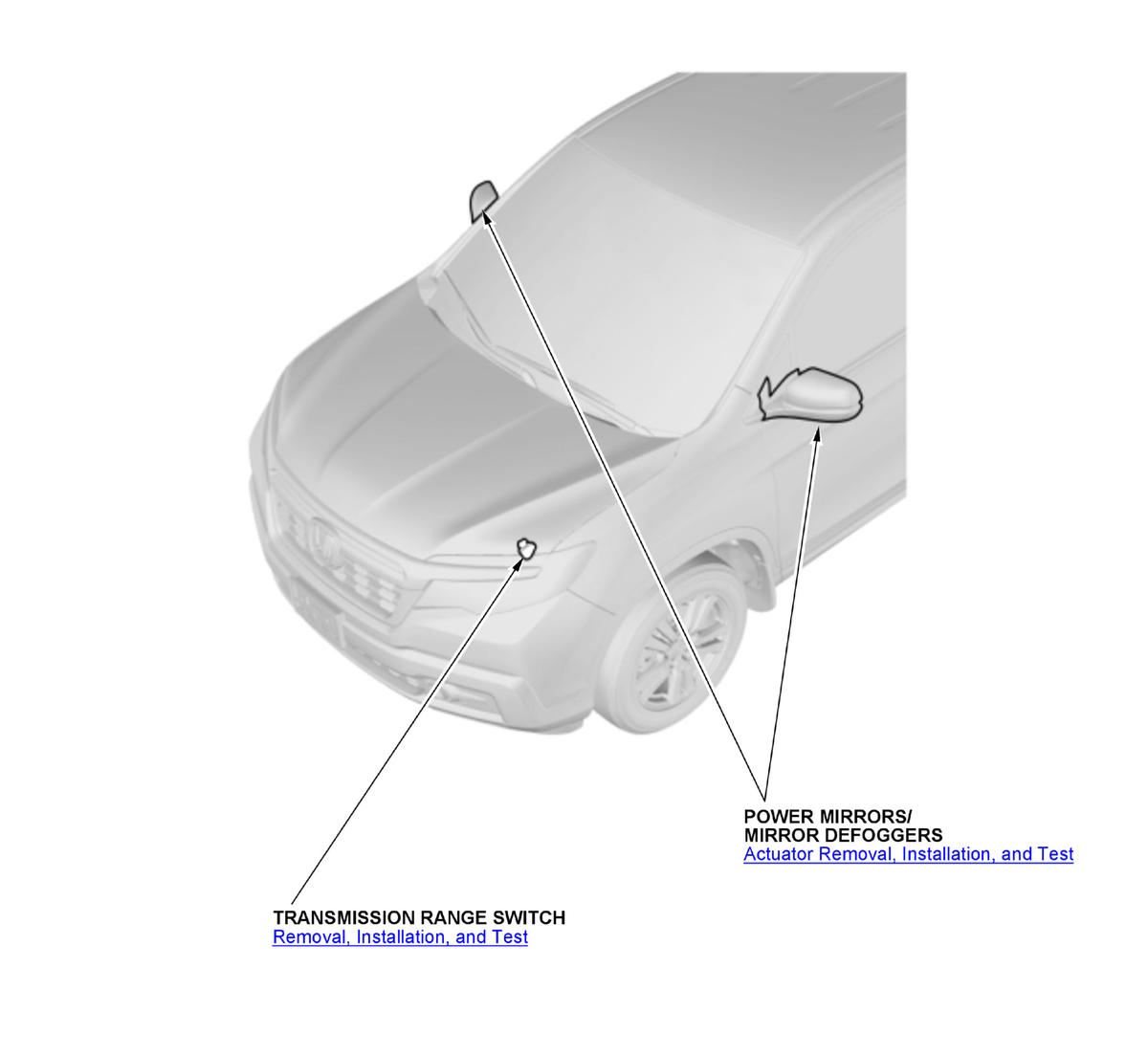

GHH457372Courtesy of HONDA, U.S.A., INC.

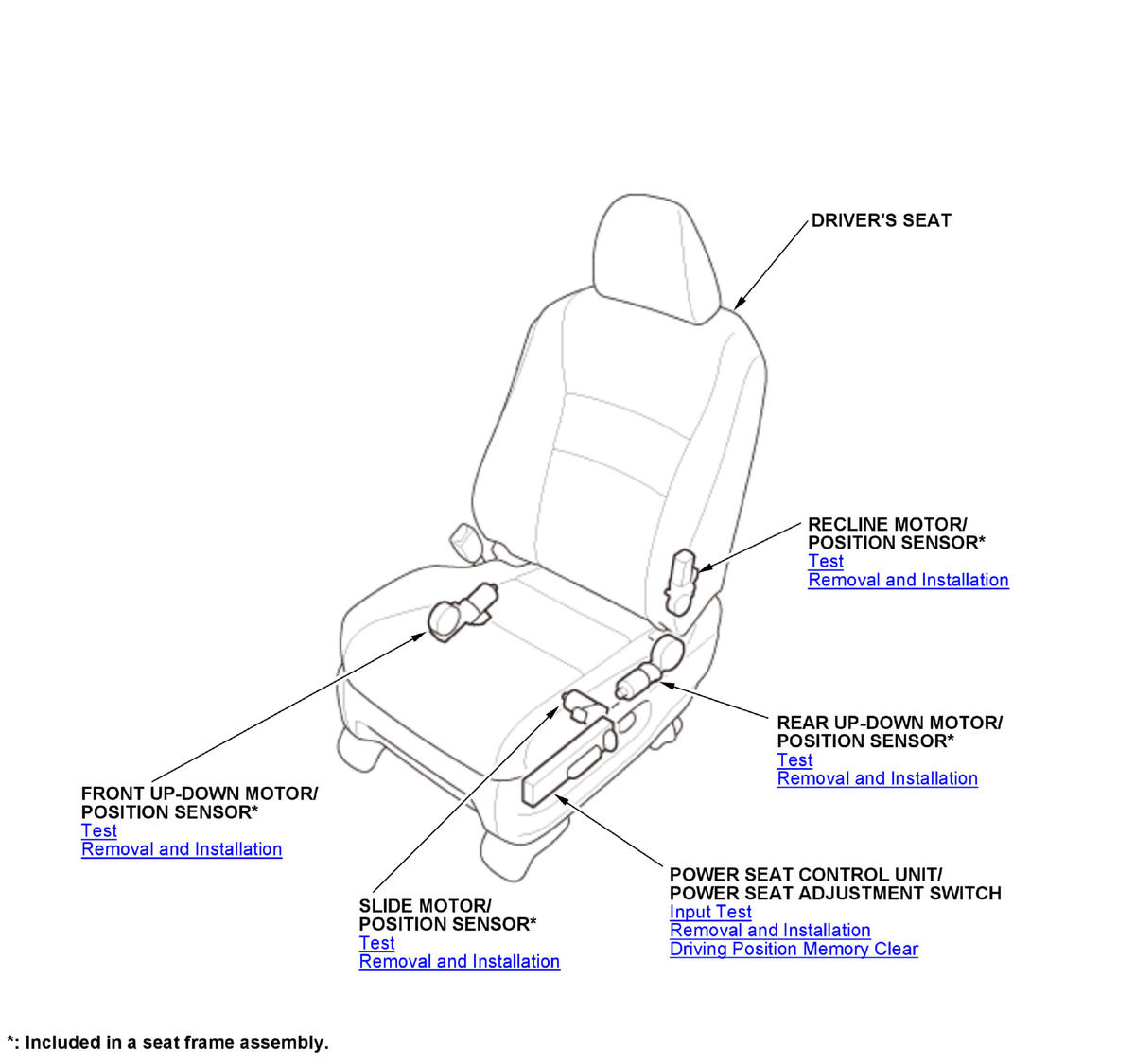

GHH457373Courtesy of HONDA, U.S.A., INC.

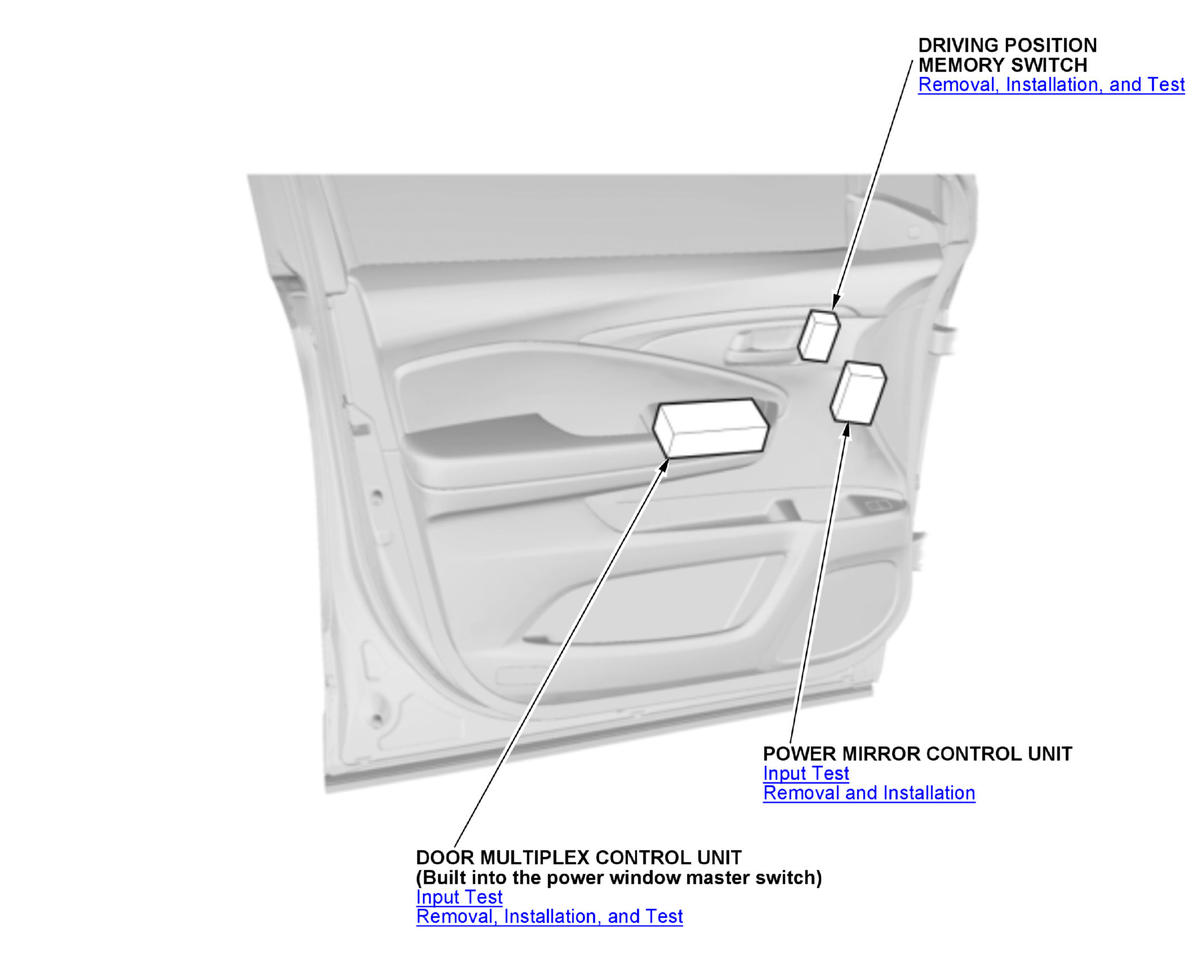

GHH457374Courtesy of HONDA, U.S.A., INC.

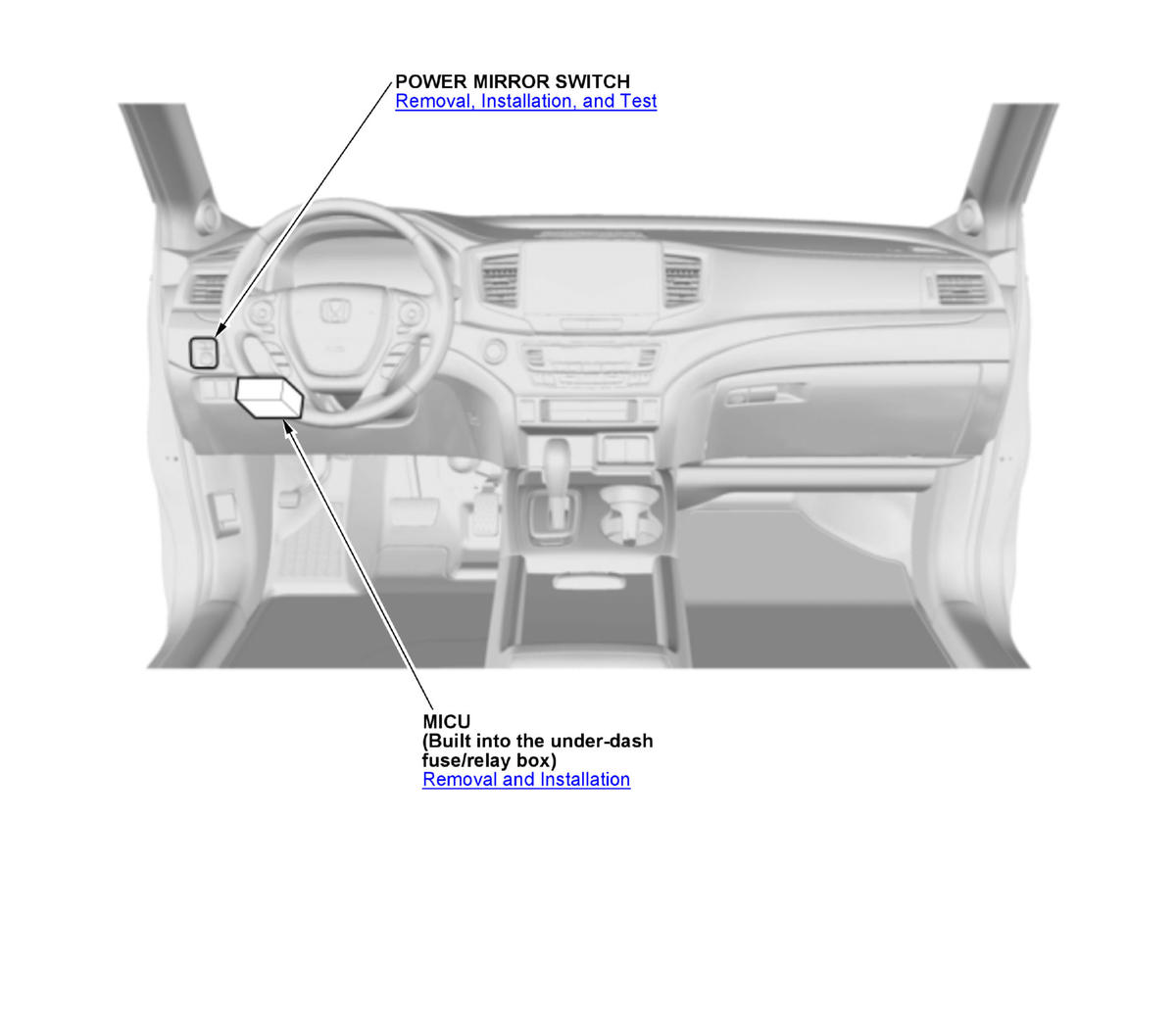

GHH457375Courtesy of HONDA, U.S.A., INC.
