Removal and Installation

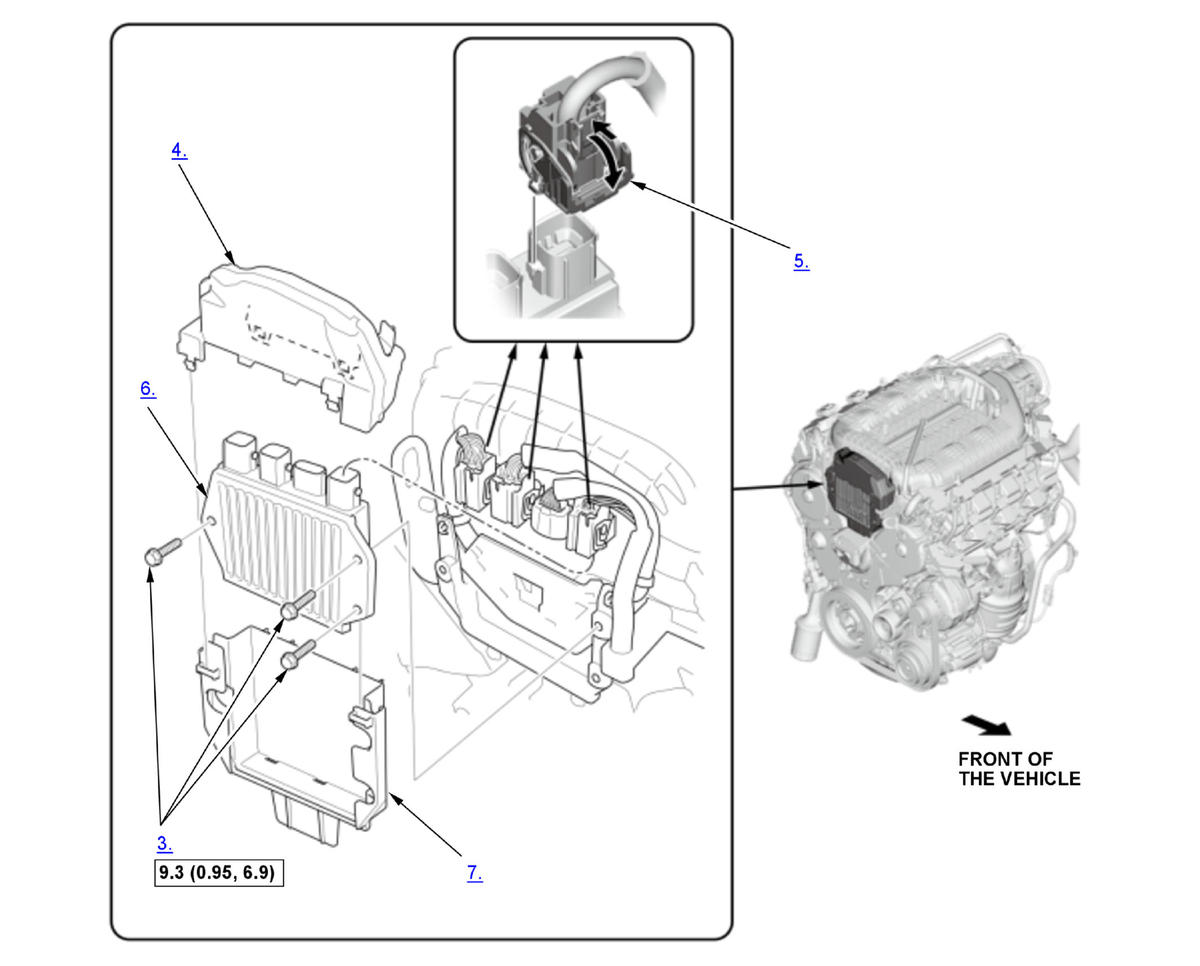

GHH455131Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. 12 Volt Battery Terminal - Disconnect
  2. Engine Cover - Remove
  3. Injector Control Module Bolts - Loosen and Remove
  4. Injector Control Module Cover A - Remove
  5. Connectors (Injector Control Module) - Disconnect
  6. Injector Control Module - Remove
  7. Injector Control Module Cover B - Remove
  8. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
