Driving Position Memory System (DPMS) Circuit Diagram (2020)

Driver's Power Seat

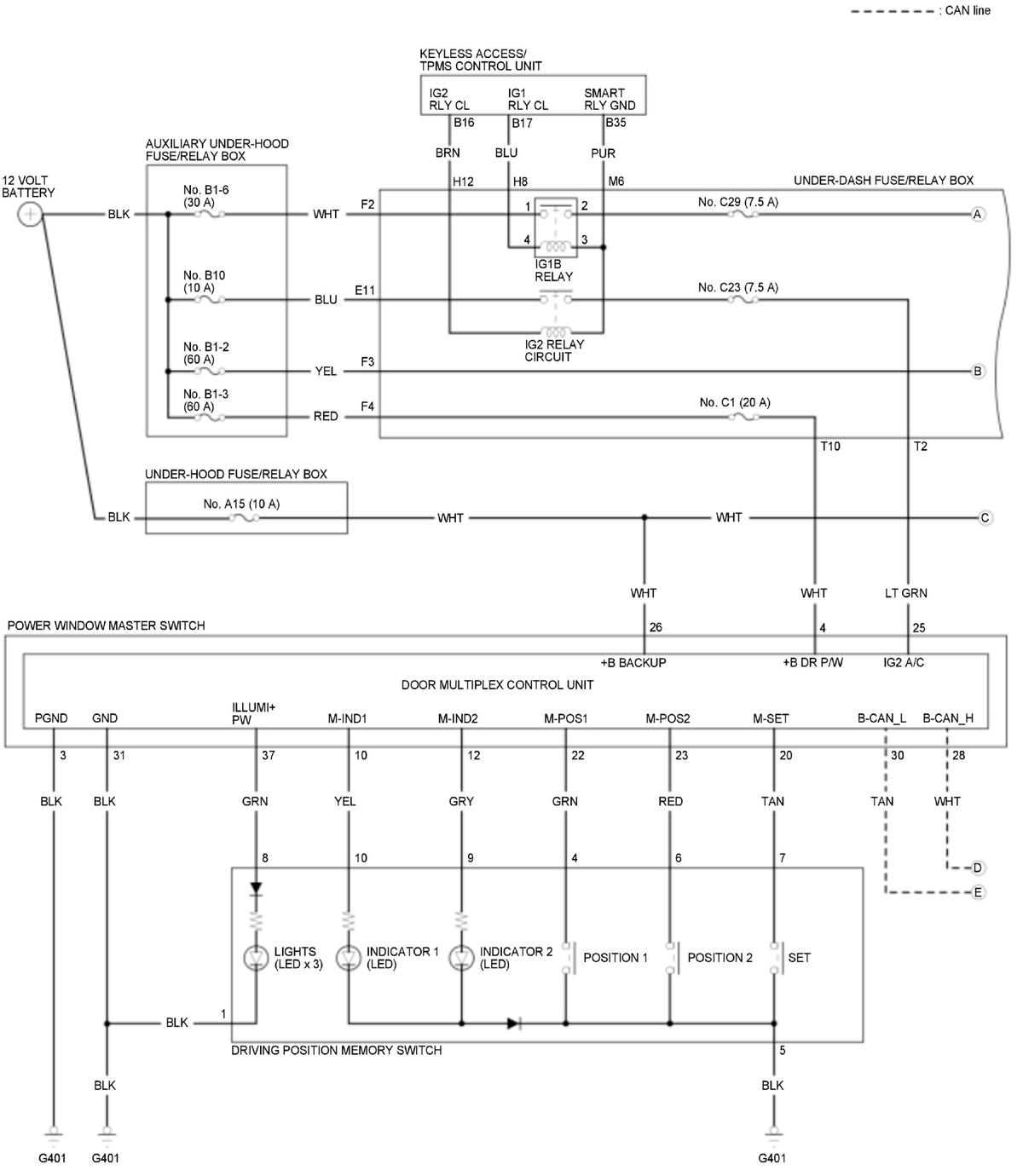

GHH457356Courtesy of HONDA, U.S.A., INC.

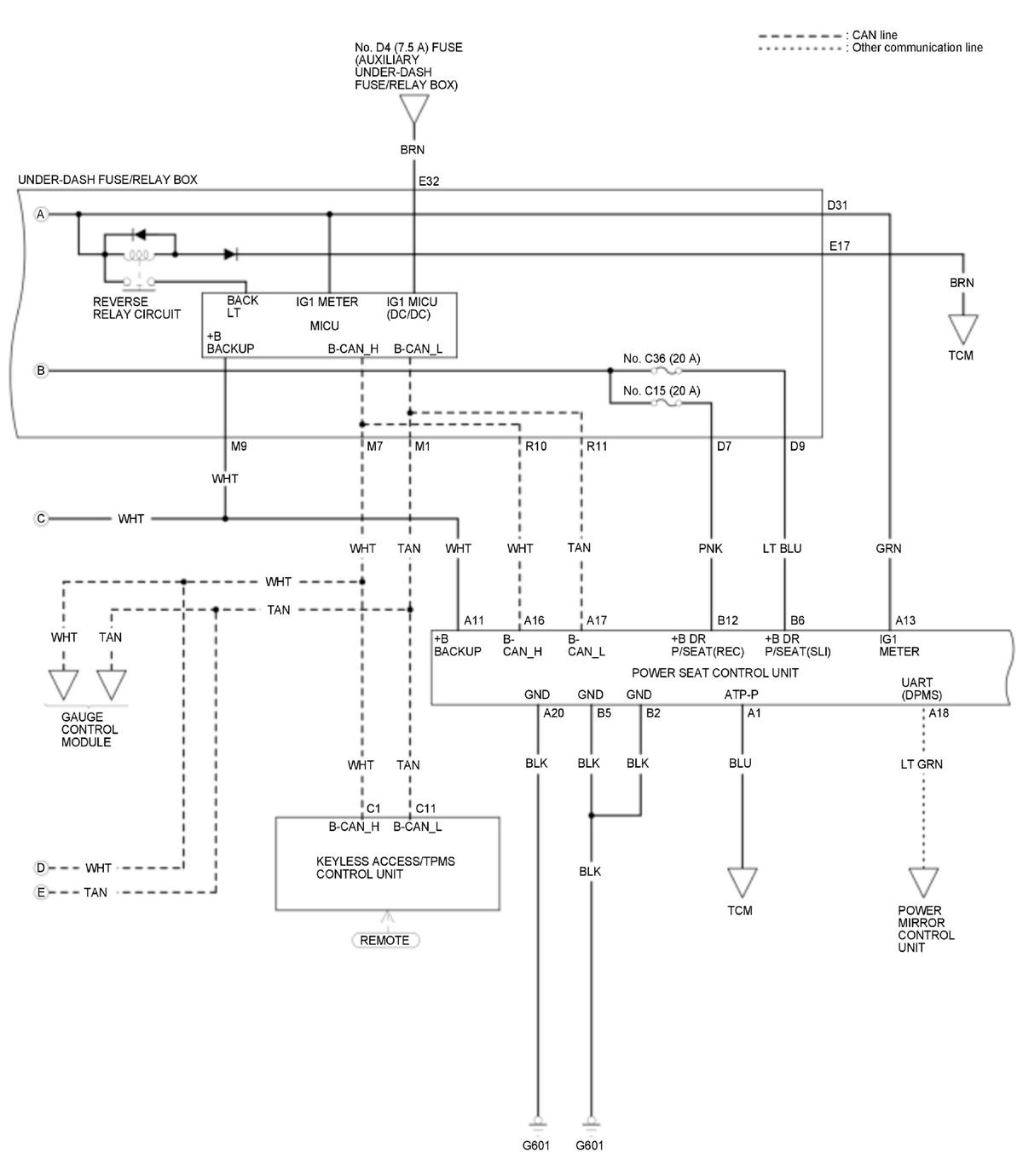

GHH457357Courtesy of HONDA, U.S.A., INC.

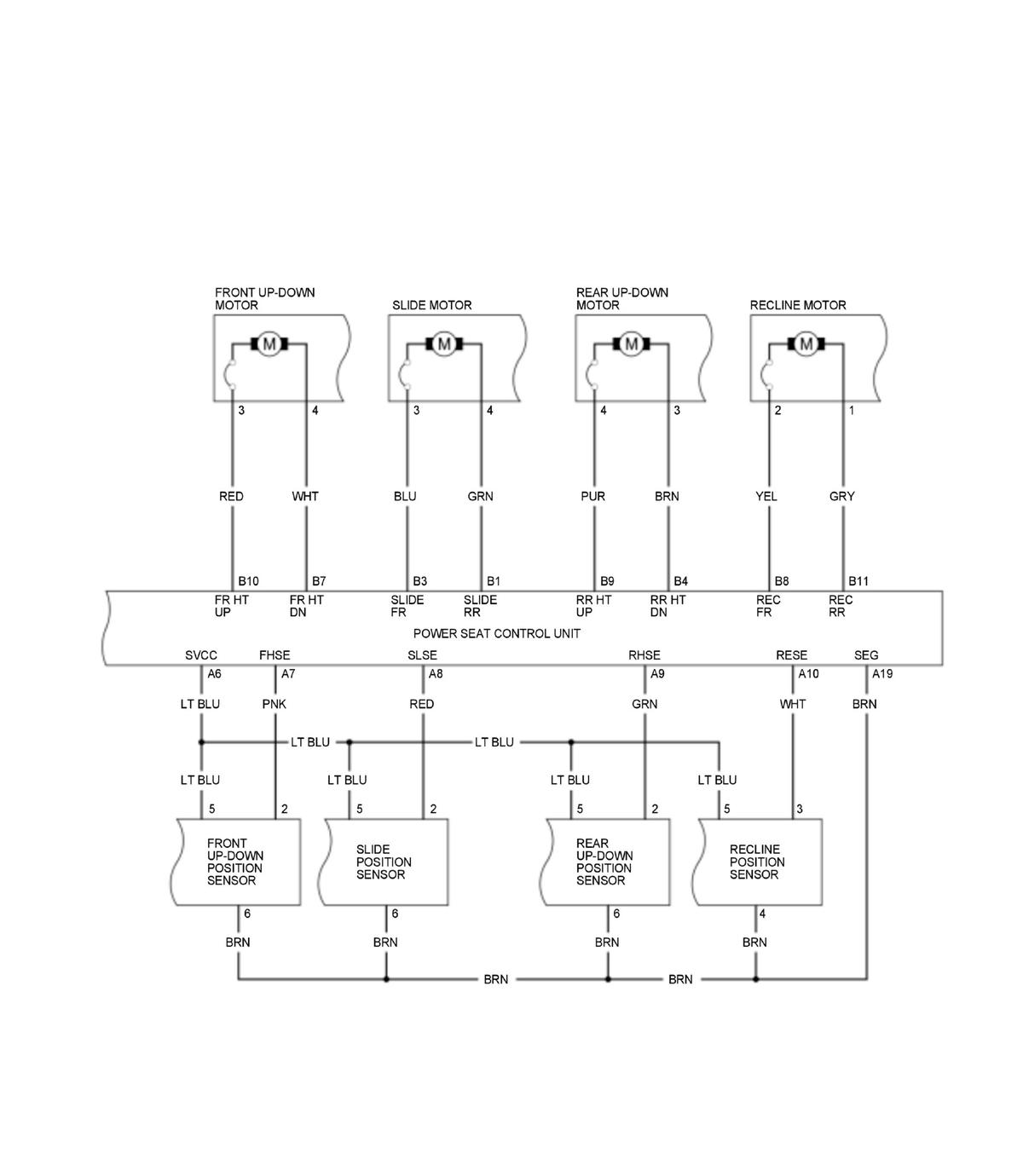

GHH457358Courtesy of HONDA, U.S.A., INC.

Power Mirror

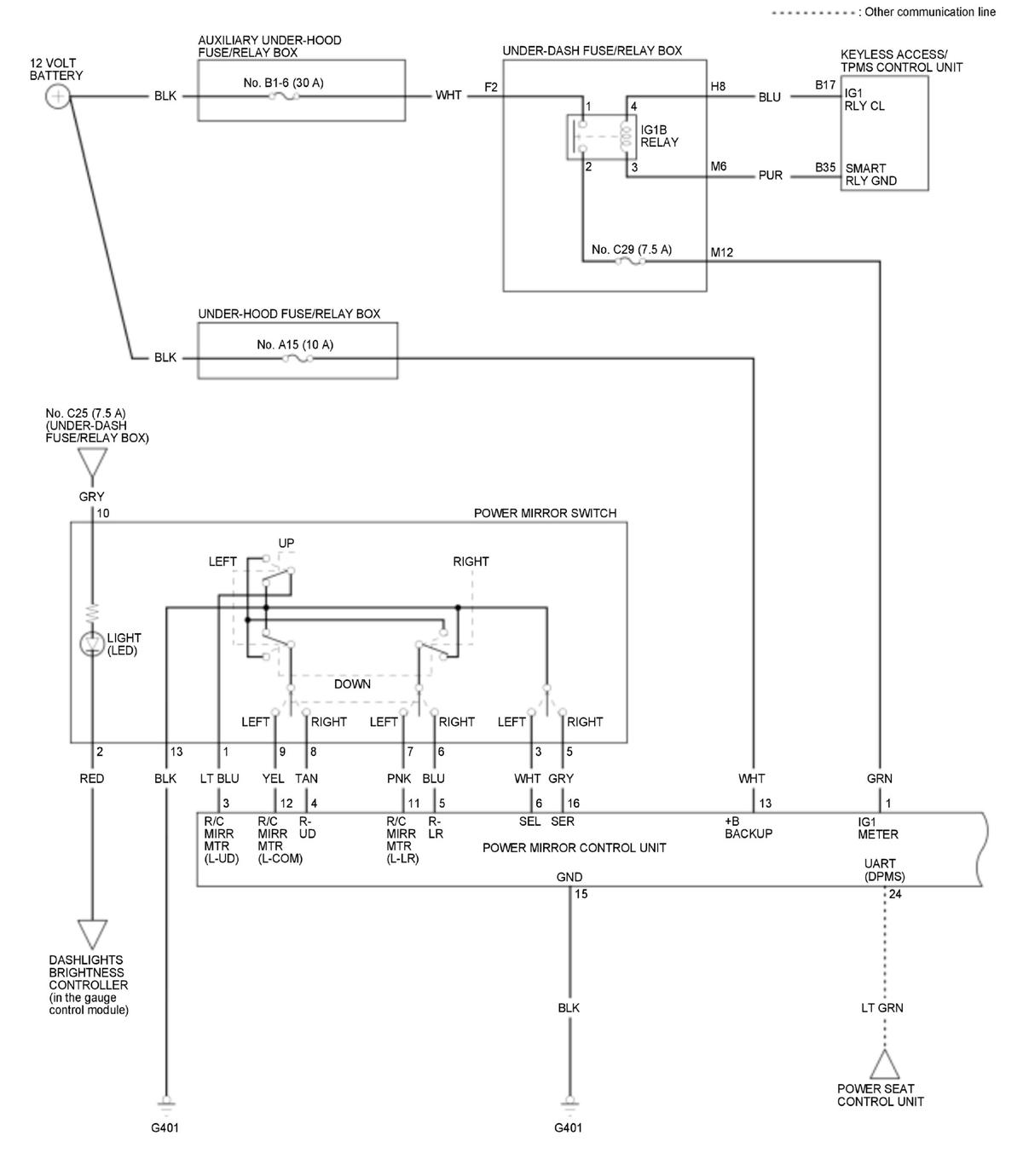

GHH457359Courtesy of HONDA, U.S.A., INC.

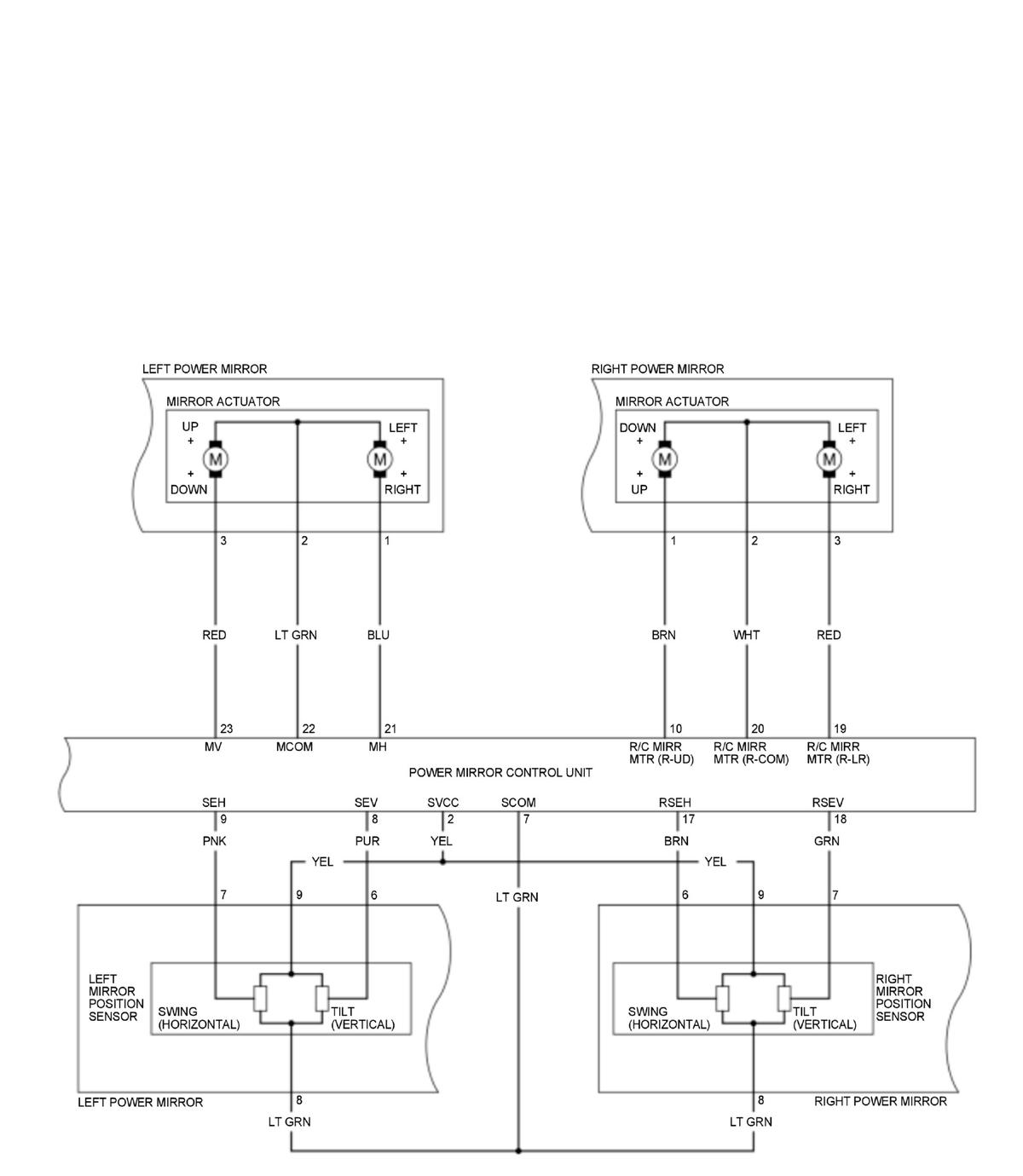

GHH457360Courtesy of HONDA, U.S.A., INC.
