DTC P16F4 (16-20 6-Speed A/T)

DTC P16F4  : Starter Cut Relay 2 Control Circuit Low Voltage

NOTE:  Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

DTC (PGM-FI)

1. Engine starting check

   - 1. Try to start the engine.

   Does the engine start?

   YES

   Go to step 2.

   NO

   Go to step 4.

2. Problem verification

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Turn the vehicle to the ON mode.

   - 3. Clear the DTC with the HDS.

   - 4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P16F4 Starter Cut Relay 2 Control Circuit Low Voltage

   DTC (PGM-FI)

   Is DTC P16F4 indicated?

   YES

   The failure is duplicated. Go to step 3.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at starter cut relay 2 and the PCM.

   If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

3. Shorted wire check (STRLY2 line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

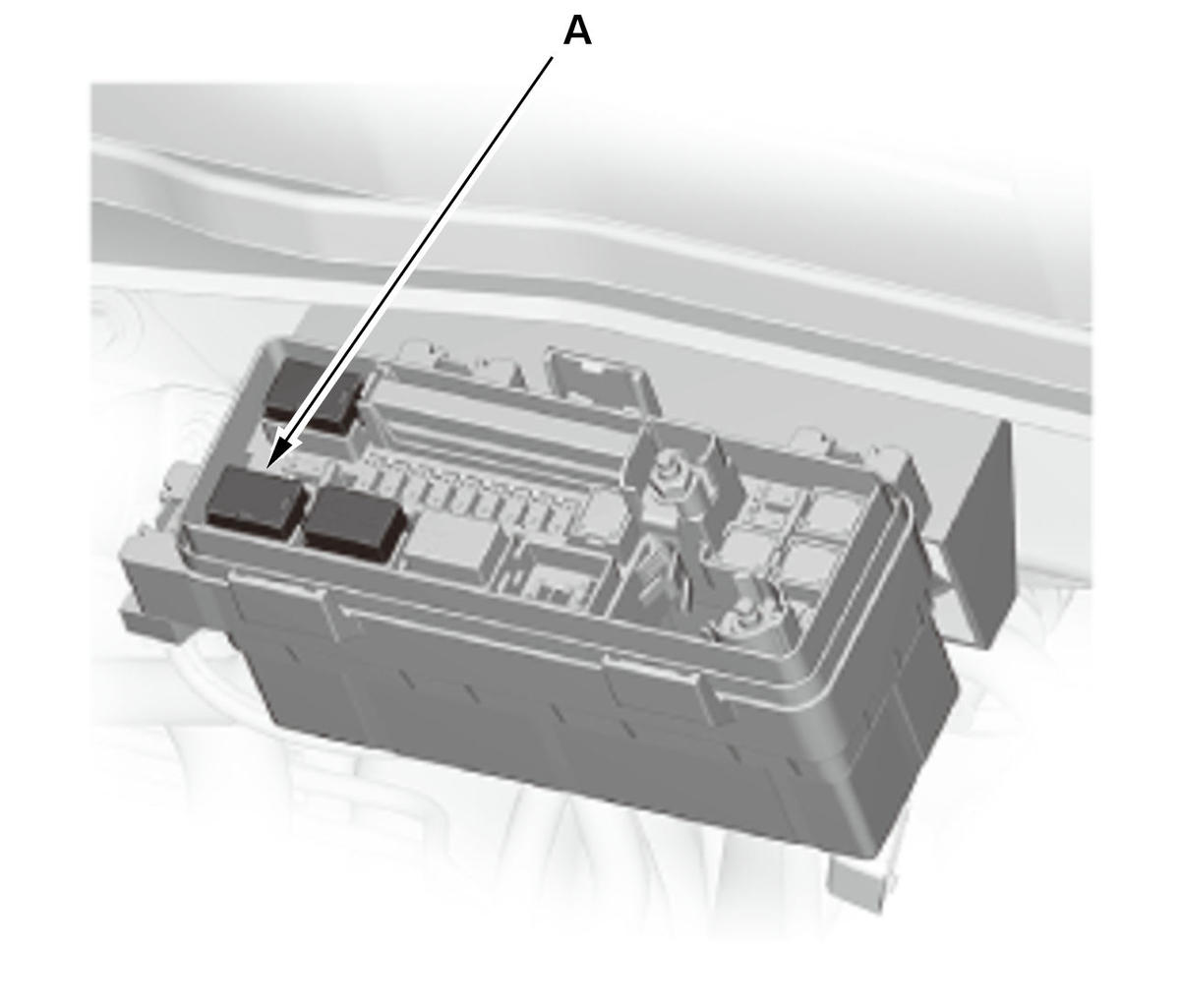

   - 2. Remove starter cut relay 2 (A) from the auxiliary under-hood fuse/relay box.

   Courtesy of HONDA, U.S.A., INC.

   - 3. Jump the SCS line with the HDS, and wait more than 1 minute.

   SCS short

   - 4. Disconnect the following connector.

   PCM connector A (51P)

   - 5. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Starter cut relay 2: disconnected
   	PCM connector A (51P): disconnected
   Test point 1	PCM connector A (51P) No. 4 - Refer to: PCM Connector for Inputs and Outputs (16-20 6-Speed A/T)
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short in the STRLY2 wire between the PCM (A4) and starter cut relay 2.

   NO

   The STRLY2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good PCM - Refer to:

   PCM Removal and Installation (6-Speed A/T, 16-18 9-Speed A/T) .

4. Starter system check

   - 1. Turn the vehicle to the ON mode.

   - 2. Shift the transmission to P or N position/mode.

   - 3. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   STARTER CUT CTRL RETURN	ON

   Do the current condition (s) match the threshold?

   YES

   Go to step 5.

   NO

   Go to the symptom troubleshooting for engine will not start - Refer to:

   Fuel and Emissions Systems Symptom Troubleshooting - Engine will not start, engine starts but stalls immediately, or engine is hard to start .

5. Determine possible failure area (PCM, others)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

   SCS short

   - 3. Disconnect the following connector.

   PCM connector A (51P)

   - 4. Turn the vehicle to the ON mode.

   - 5. Shift the transmission to P or N position/mode.

   - 6. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	PCM connector A (51P): disconnected
   Test point 1	PCM connector A (51P) No. 4 - Refer to: PCM Connector for Inputs and Outputs (16-20 6-Speed A/T) .
   Test point 2	Body ground

   Is there battery voltage?

   YES

   Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good PCM - Refer to: PCM Removal and Installation (6-Speed A/T, 16-18 9-Speed A/T) .

   NO

   Go to step 6.

6. Open wire check (STRLY2 line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Remove starter cut relay 2 (A) from the auxiliary under-hood fuse/relay box.

   Courtesy of HONDA, U.S.A., INC.

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector A (51P): disconnected
   	Starter cut relay 2: disconnected

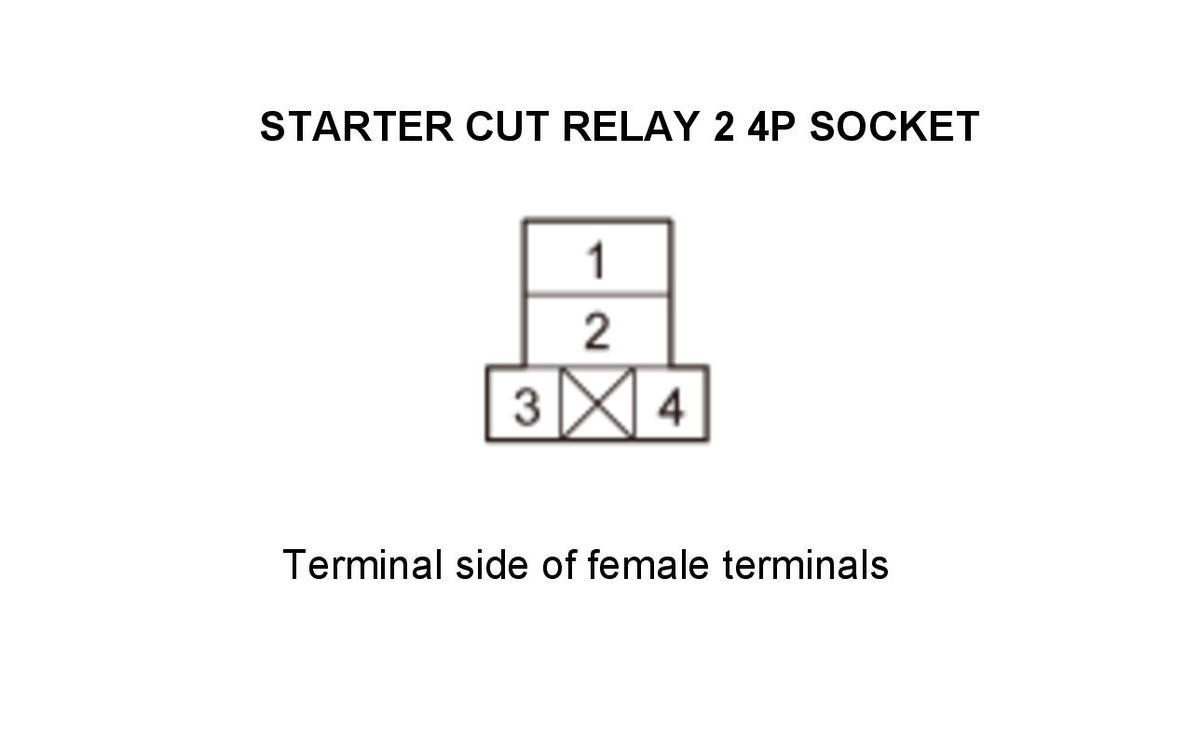

   Test point 1	Starter cut relay 2 4P socket No. 4
   Test point 2	PCM connector A (51P) No. 4 - Refer to: PCM Connector for Inputs and Outputs (16-20 6-Speed A/T)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The STRLY2 wire is OK. Go to step 7.

   NO

   Repair an open in the STRLY2 wire between the PCM (A4) and starter cut relay 2.

7. Fuse check

   - 1. Check the following fuse.

   Fuse	No. C7 (15 A)

   Location

   Under-dash fuse/relay box

   Is the fuse OK?

   YES

   Go to step 8.

   NO

   Check for a short in the IG1 ACG wire between the No. C7 (15 A) fuse and the under-hood fuse/relay box, and repair it if needed. Also replace the No. C7 (15 A) fuse.

8. Open wire check (IG1 ACG line)

   - 1. Disconnect the following connector.

   Under-dash fuse/relay box connector F (18P)

   - 2. Connect terminals A and B with a jumper wire.

   Terminal A	Under-dash fuse/relay box connector F (18P) No. 11
   Terminal B	Body ground

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector A (51P): disconnected
   	Starter cut relay 2: disconnected
   	Under-dash fuse/relay box connector F (18P): disconnected
   	Under-dash fuse/relay box connector F (18P) No. 11: jumped to body ground

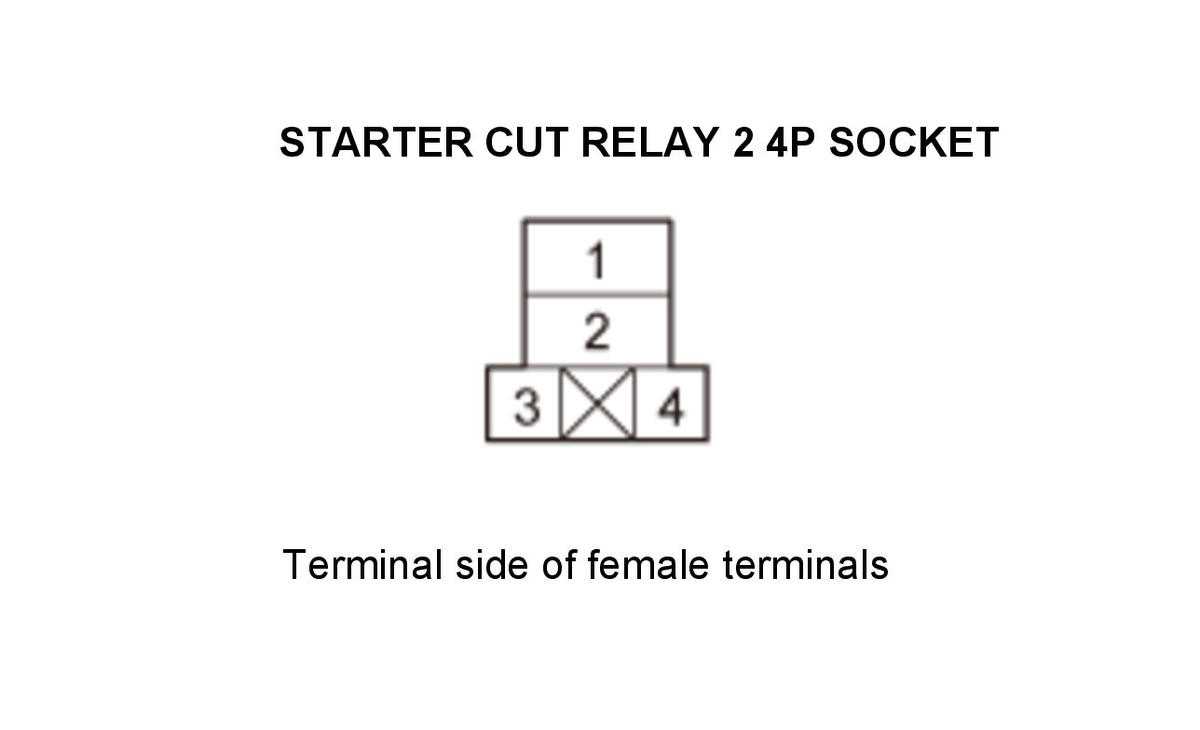

   Test point 1	Starter cut relay 2 4P socket No. 3
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The IG1 ACG wire is OK. Replace the under-dash fuse/relay box .

   NO

   Repair an open in the IG1 ACG wire between the under-dash fuse/relay box and starter cut relay 2.
