Transfer Output Shaft Bearing Replacement (6-Speed A/T): Replacement
- Transfer Output Shaft Bearing - Remove

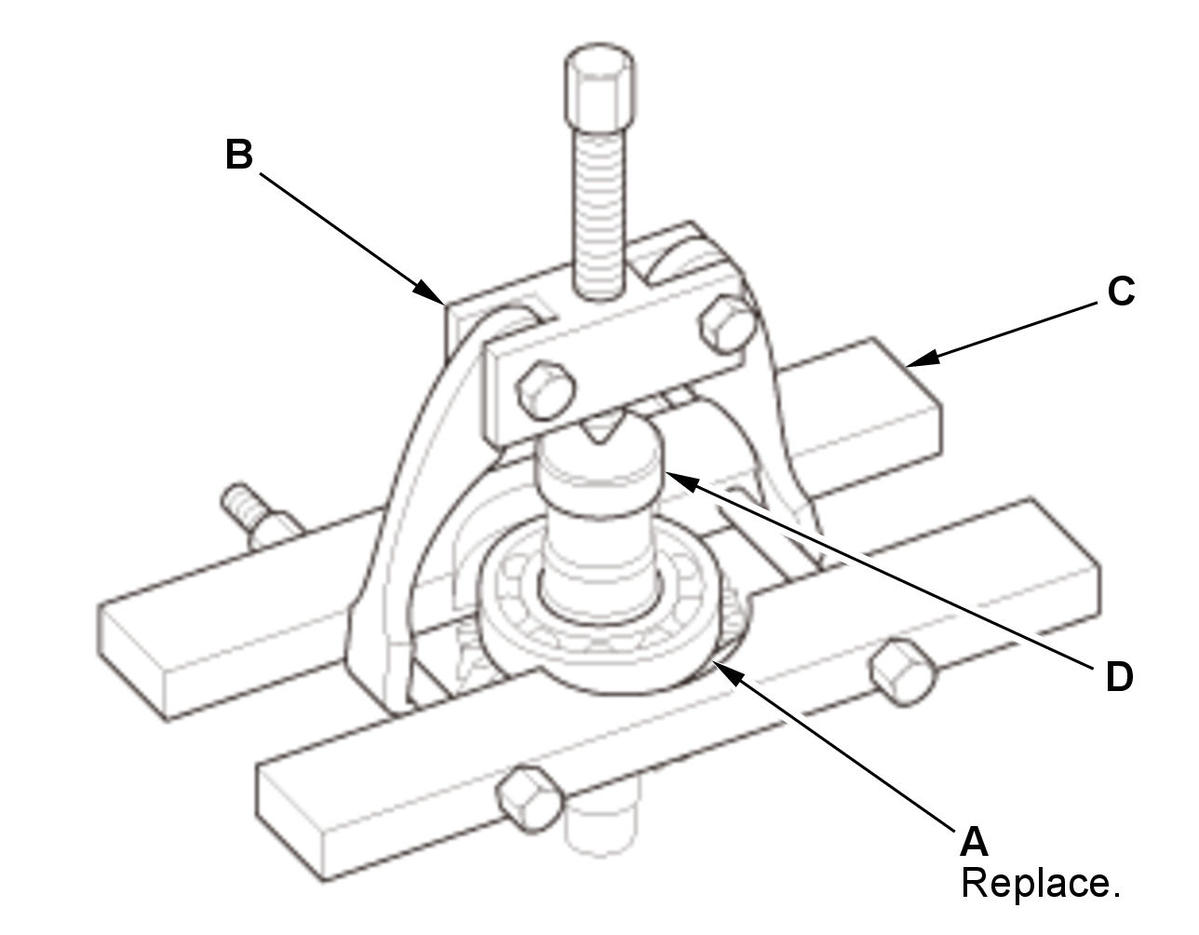

1. Remove the transfer output shaft bearing (A) using a commercially available puller (B), a bearing separator (C), and a spacer (D). Place a spacer between the transfer output shaft and the puller to prevent damaging the transfer output shaft. - Transfer Output Shaft Bearing - Install

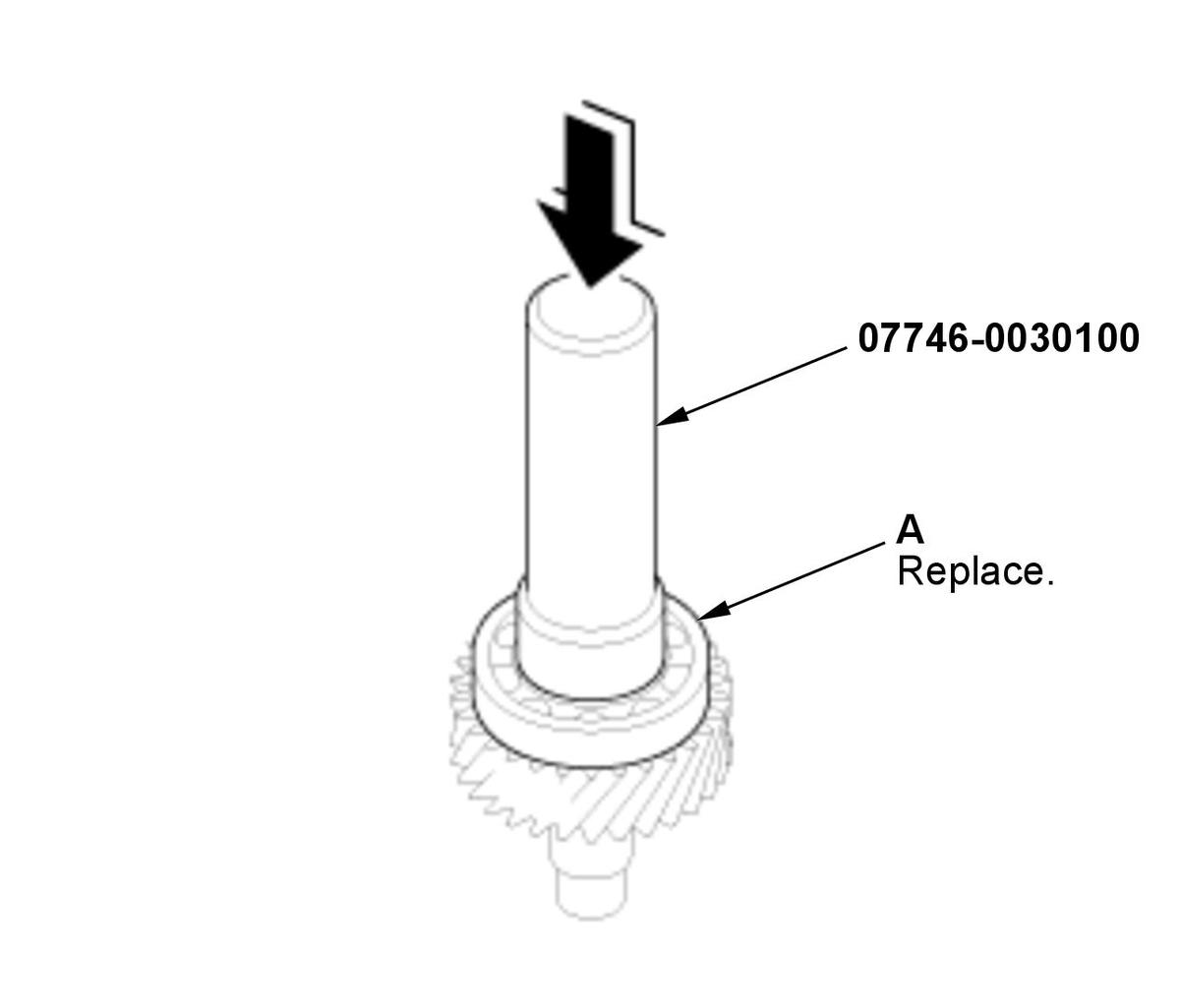

1. Install the transfer output shaft bearing (A) until it bottoms using the 40 mm I.D. driver handle and a press.
