Torque Converter Housing Selector Control Shaft Bearing Replacement (6-Speed A/T): Replacement

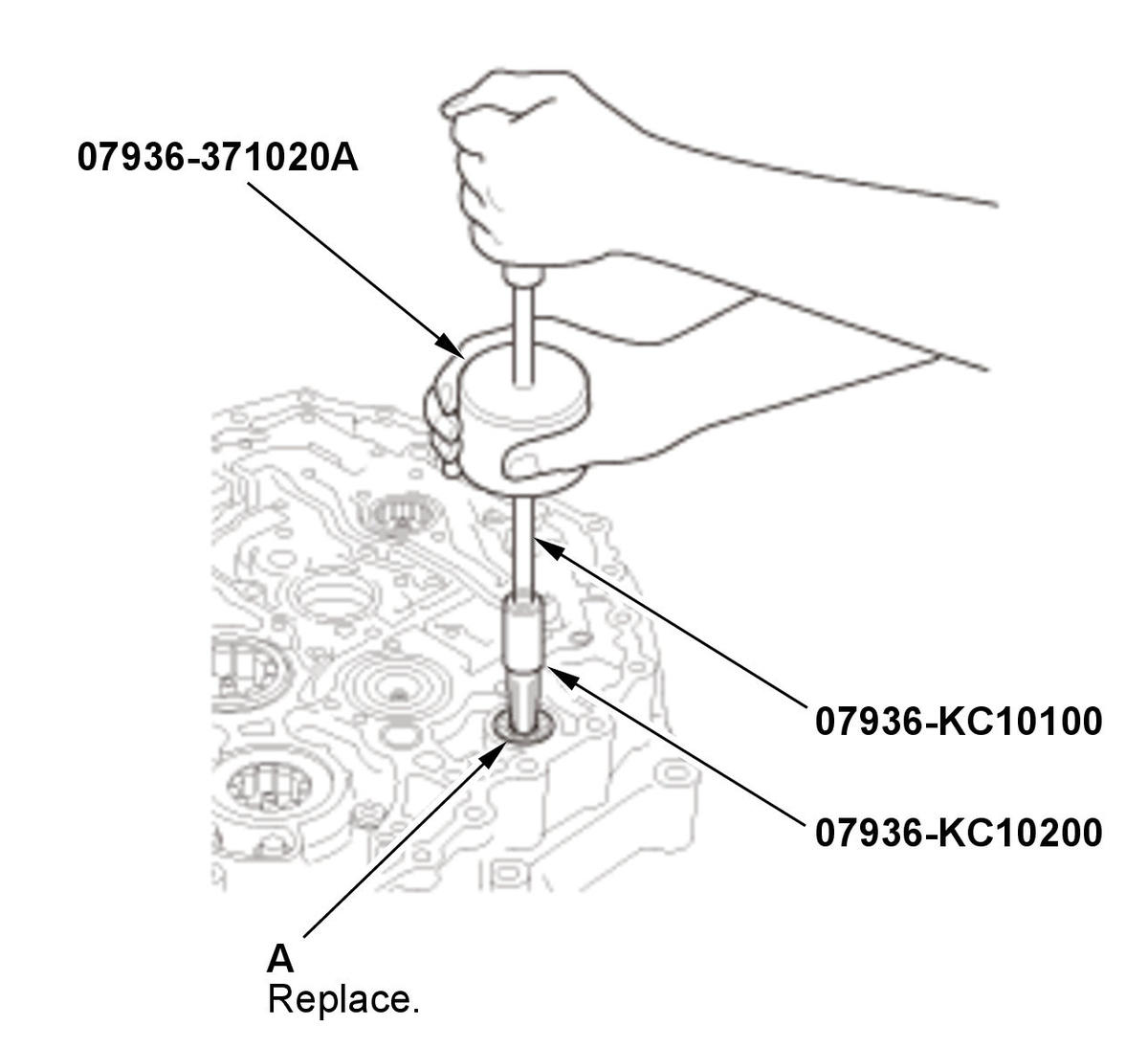

  1. Selector Control Shaft Bearing - Remove
    GHH304754Courtesy of HONDA, U.S.A., INC.
    1. Remove the selector control shaft bearing (A) using the 15 mm remover shaft, the 15 mm remover head, and the slide hammer.

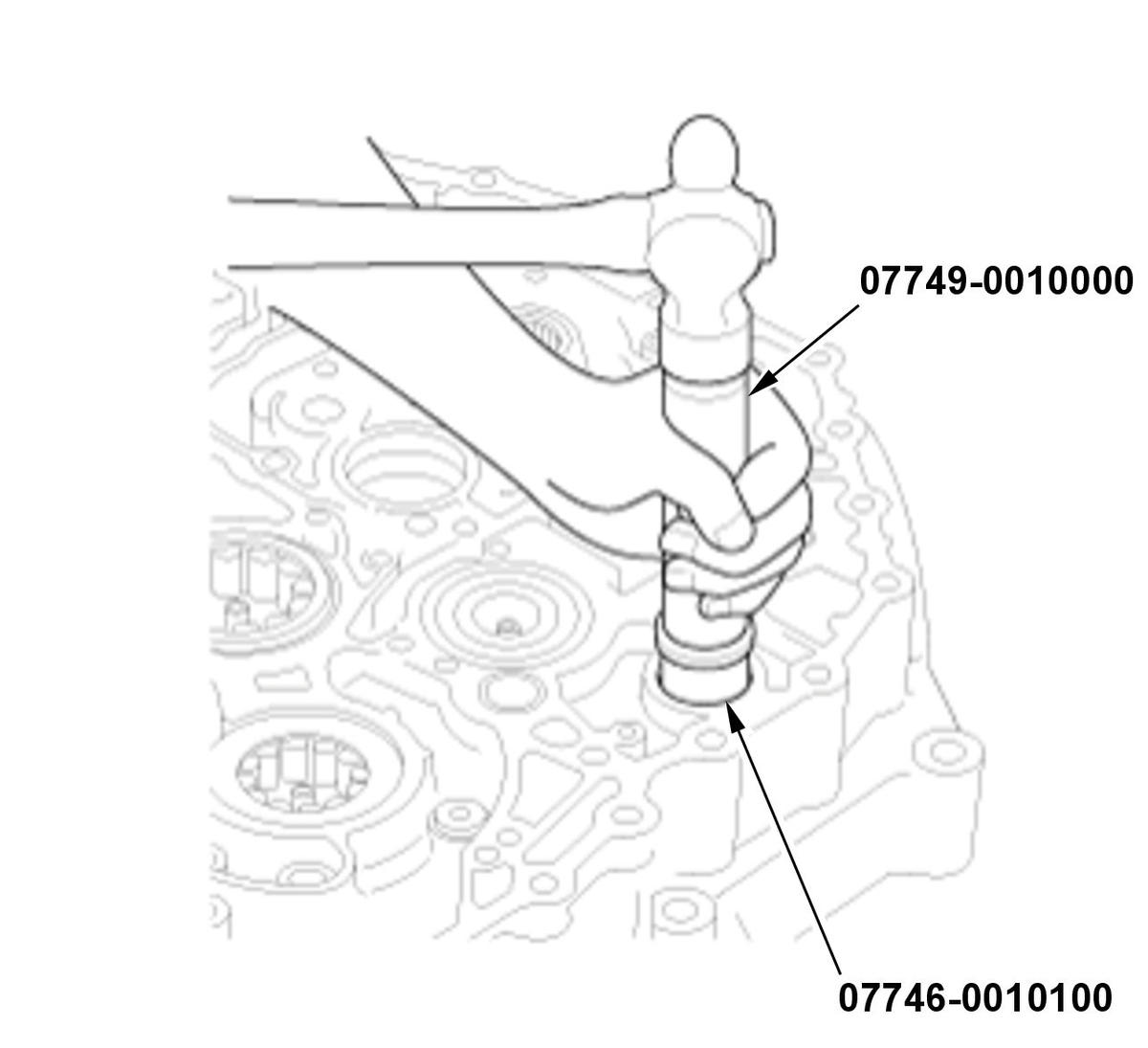

  2. Selector Control Shaft Bearing - Install
    GHH304755Courtesy of HONDA, U.S.A., INC.
    1. Install the selector control shaft bearing until it bottoms using the 15 x 135L driver handle and the 32 x 35 mm bearing driver attachment.
