Right BSI Radar Unit Connector End View (BSI System) (View 265)
WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
BLK
Behind Right Side of Rear Bumper
On Rear Bumper Sub-harness

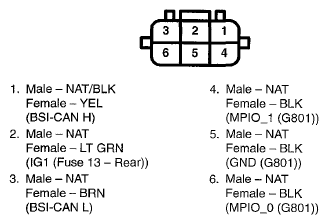

Fig 1: Right BSI Radar Unit (BSI System) Connector Terminals (View 265)
