Left Power Sliding Door Control Unit Connector End View (Power Sliding Doors) (View 391)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Behind Left Rear Side Trim Panel
On Left Side Wire Harness (Left Rear Branch)
Connector A
- GRY

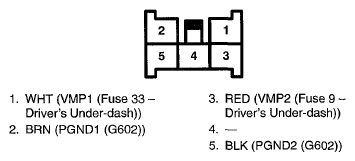

Fig 1: Left Power Sliding Door Control Unit (Power Sliding Doors) Connector Terminals - Connector A (View 391)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- GRY

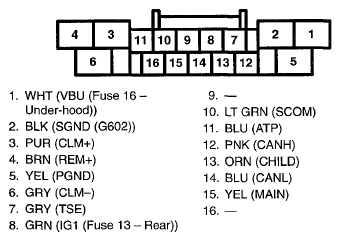

Fig 2: Left Power Sliding Door Control Unit (Power Sliding Doors) Connector Terminals - Connector B (View 391)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- WHT

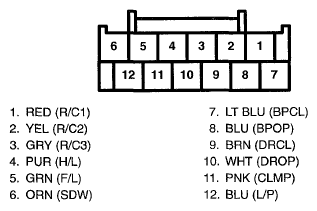

Fig 3: Left Power Sliding Door Control Unit (Power Sliding Doors) Connector Terminals - Connector C (View 391)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
