Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:

• Where icon is shown, further information shown below.
• If the body control module is replaced, do the keyless access system registration . If the original body control module is installed, confirm that all systems work properly.
• The body control module has a component of the immobilizer system. The body control module must be registered when the body control module is replaced, or the vehicle will not start.

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
*1	View is from behind the steering hanger beam.

1. Under-Dash Fuse/Relay Box - Remove

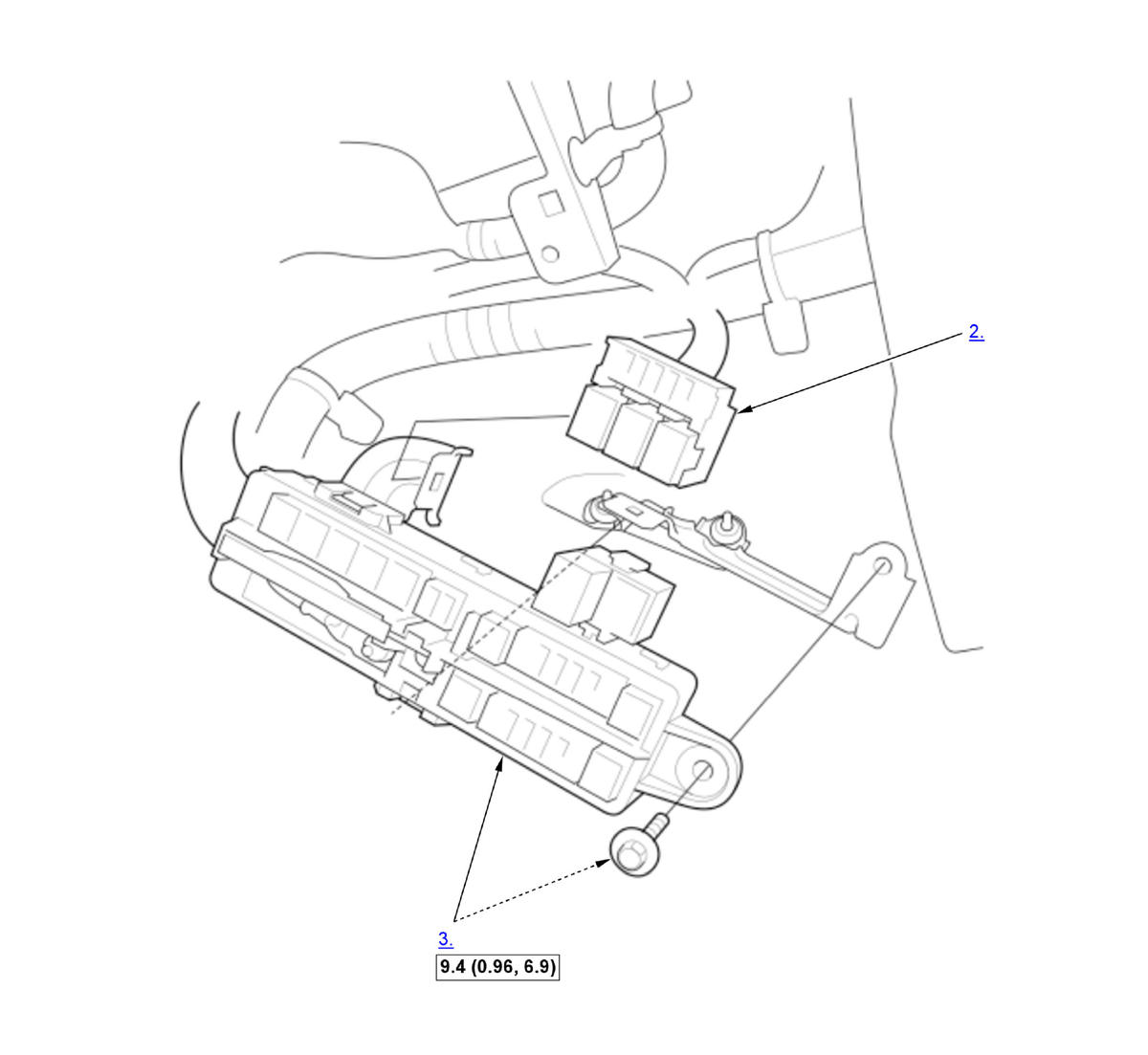

2. Fuse/Relay Holder A - Remove
3. Fuse Holder - Remove

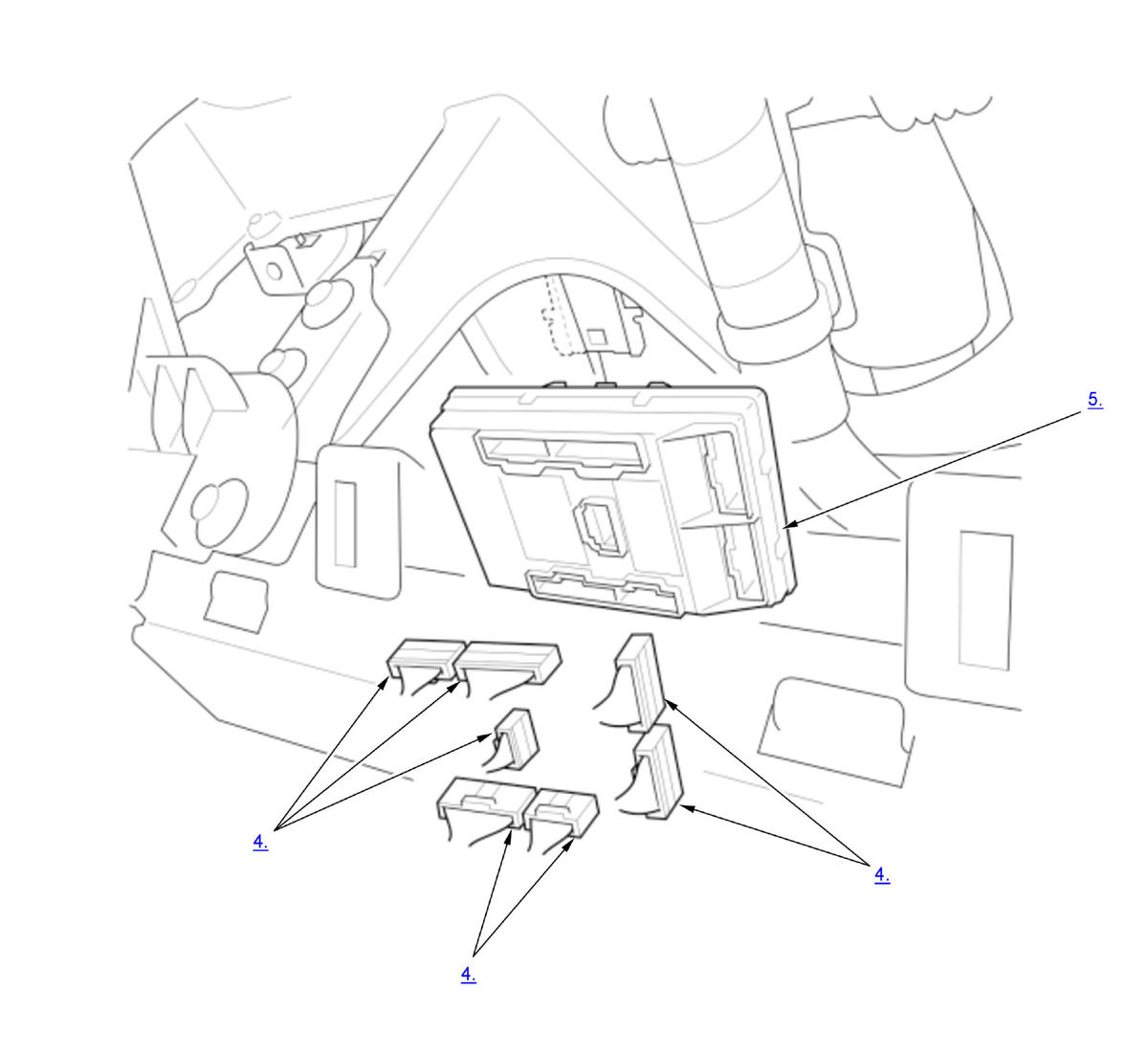

4. Connectors - Disconnect
5. Body Control Module - Remove
6. Dashboard - Remove

   NOTE:  Only required if removing the bracket.

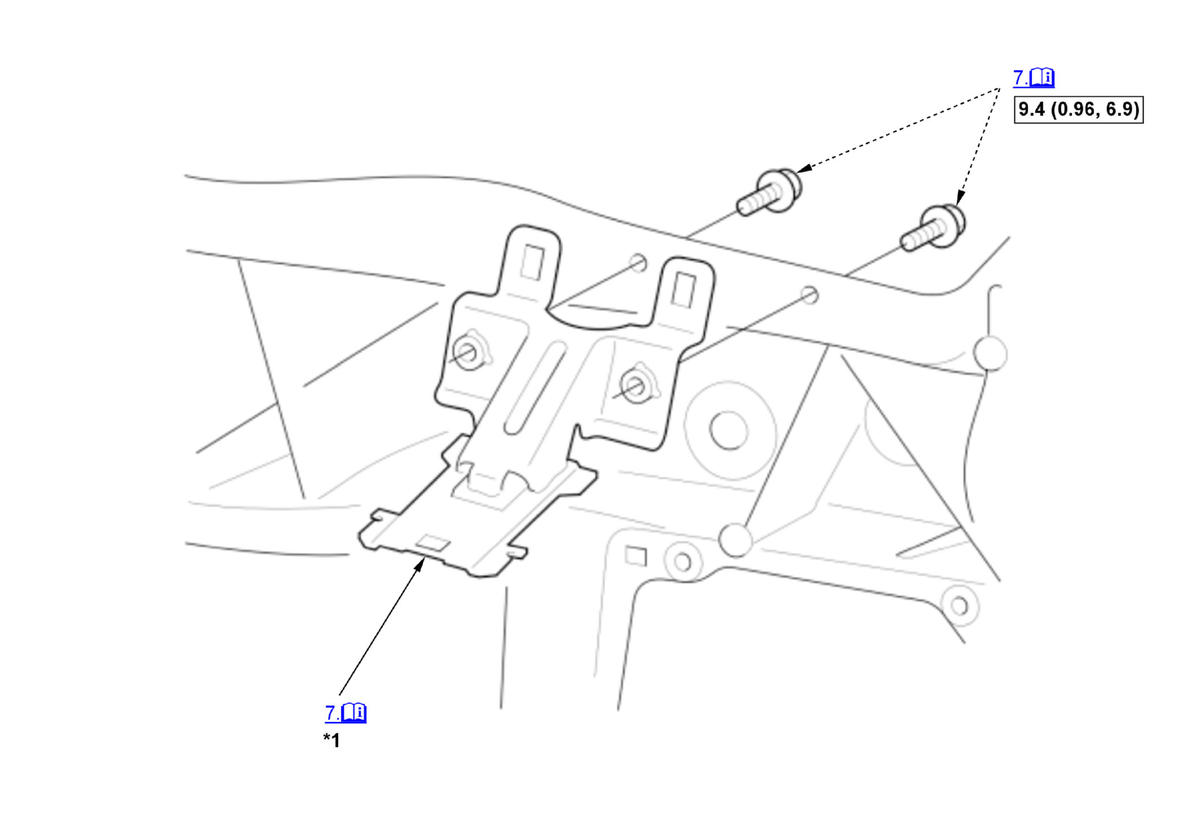

7. Bracket - Remove

   1. If necessary, remove the bracket.

8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

9. Keyless Access System - Register
10. Body Control Module - Update
