ANC/Active Sound Control Unit Connector for Inputs and Outputs (2025)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

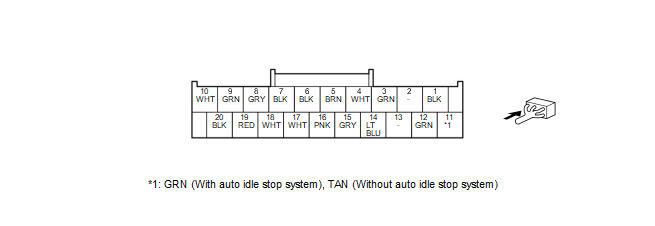

ANC/Active Sound Control Unit 20P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | SGND | Ground for ANC/active sound control unit (G406) |
| 2 | Not used | --- |
| 3 | SWD+B | Inputs signal for ANC/active sound control unit switching on/off |
| 4 | F-CAN A_H | Communication signal |
| 5 | F-CAN A_L | Communication signal |
| 6 | SH ANC R MIC | Shield for terminal No. 17 |
| 7 | SH ANC F MIC | Shield for terminal No. 18 |
| 8 | ANC SH | Shield for terminals No. 9, No. 10, No. 19, and No. 20 |
| 9 | ANC R- | Outputs noise cancelling/acceleration sound enhancement signal |
| 10 | ANC F- | Outputs noise cancelling/acceleration sound enhancement signal |
| 11 | +B BACKUP2 MAIN *1+B AUDIO *2 | Continuous power source |
| 12 | IG1 METER(DC/DC) *1IG1 METER *2 | IG1 power source |
| 13 | Not used | --- |
| 14 | K LINE | Detects scan tool signal (serial data) |
| 15 | AUD F MIX GND | Basis ground for terminal No. 16 |
| 16 | AUD F MIX | Inputs audio mixing signal for front channels |
| 17 | ANC R MIC+8V | Inputs sound signal from rear ANC/active sound control microphone |
| 18 | ANC F MIC+8V | Inputs sound signal from front ANC/active sound control microphone |
| 19 | ANC R+ | Outputs noise cancelling/acceleration sound enhancement signal |
| 20 | ANC F+ | Outputs noise cancelling/acceleration sound enhancement signal |
*1: With auto idle stop system*2: Without auto idle stop system
