Breather Line and Suction Line Inspection (AWD: KA/KC): Inspection

  1. Front seat (driver's side) - Remove
  2. Rear Heater Duct (Left Side) - Remove
    GHH435234Courtesy of HONDA, U.S.A., INC.
  3. Access Panel - Remove
    GHH435235Courtesy of HONDA, U.S.A., INC.

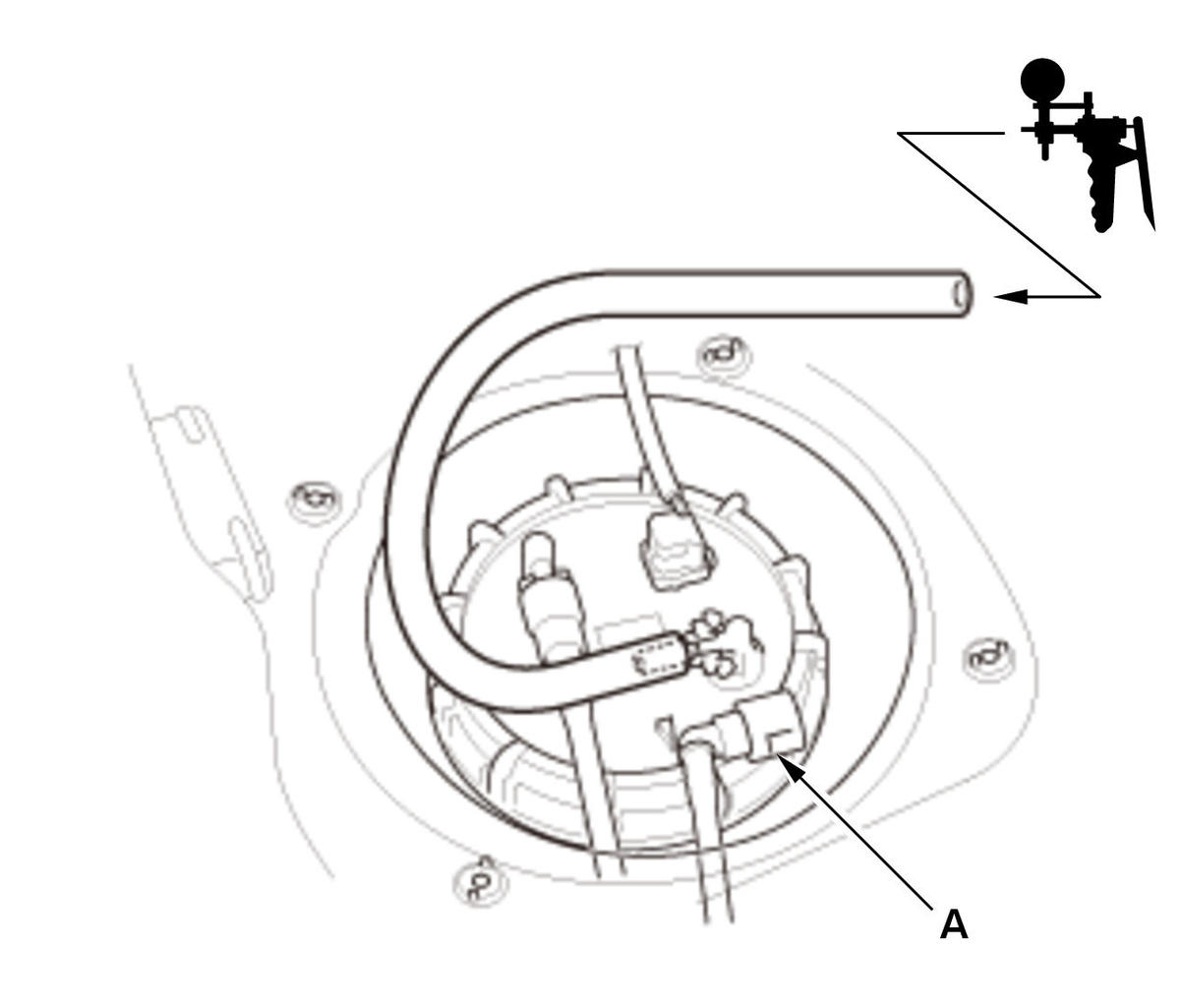

    		 1. Remove the access panel (A) from the floor.
  4. Breather Line and Suction Line - Inspect
    GHH435236Courtesy of HONDA, U.S.A., INC.

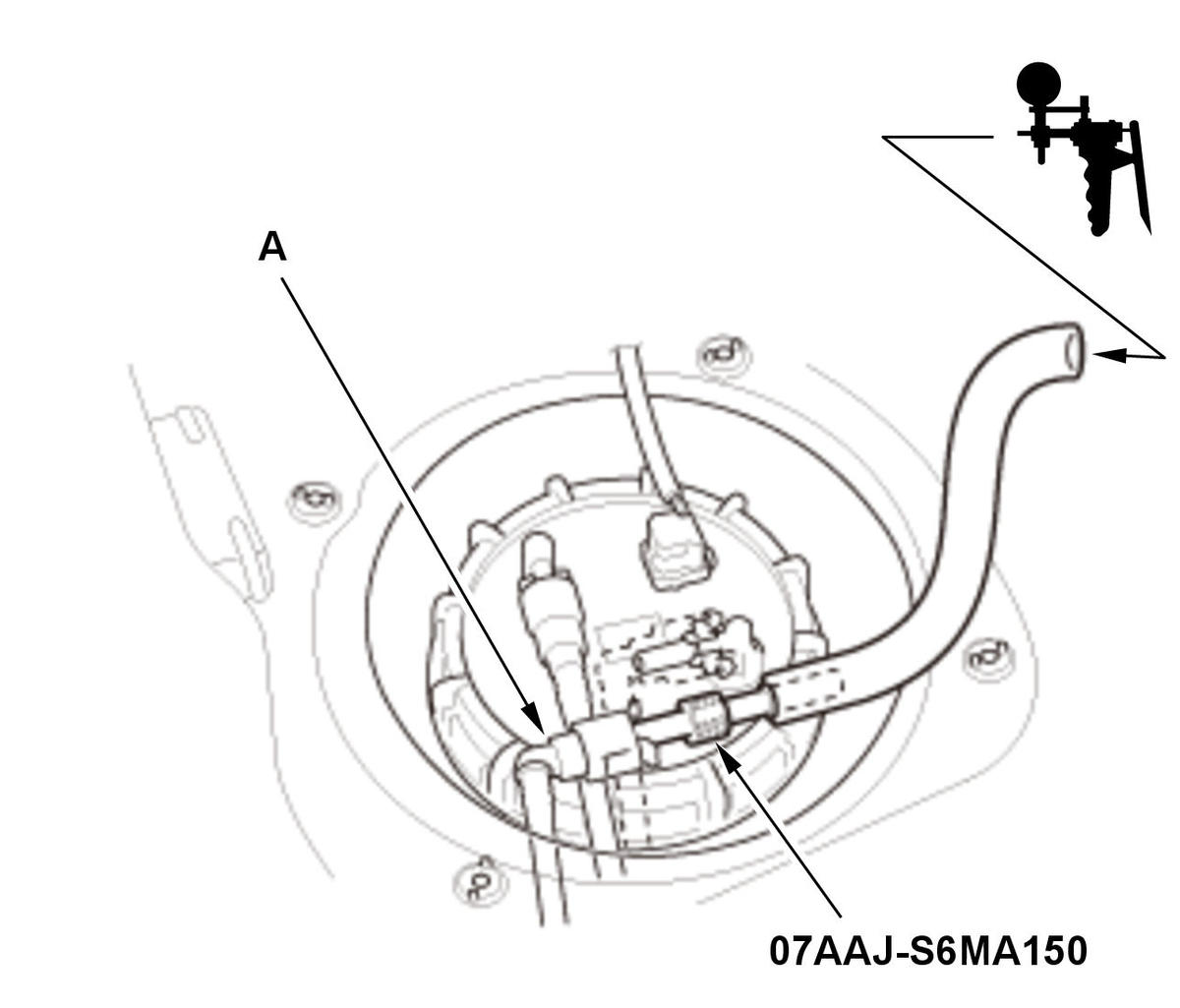

    		 1. Disconnect the quick-connect fitting (A) from the fuel tank unit

    , and connect a vacuum pump/gauge, 0-30 inHg, to the fuel tank unit as shown.

    2. Start the engine, and check the vacuum.
    GHH435237Courtesy of HONDA, U.S.A., INC.
    		 3. Turn the vehicle to the OFF (LOCK) mode.

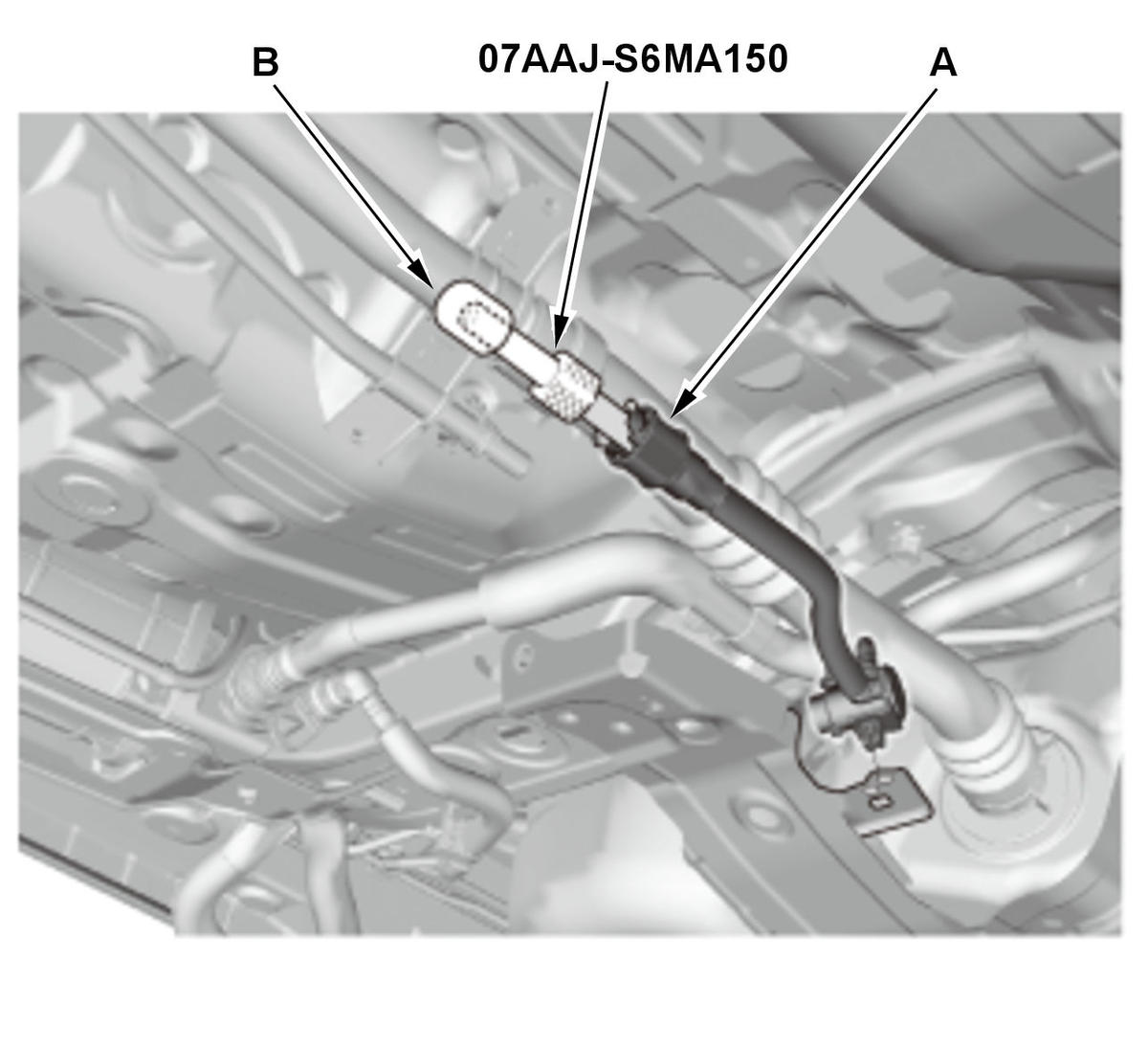

    4. Connect a vacuum pump/gauge, 0-30 inHg, to the suction line (A) with the joint in the fuel pressure gauge set, and apply vacuum to the line.
    GHH435238Courtesy of HONDA, U.S.A., INC.
    		 5. Raise the vehicle on the lift.

    6. Remove the front center member

    7. Disconnect the quick-connect fitting (A) from breather line , then plug the suction line with the joint in the fuel pressure gauge set and a rubber cap (B).
    GHH435239Courtesy of HONDA, U.S.A., INC.
    		 8. Lower the vehicle.

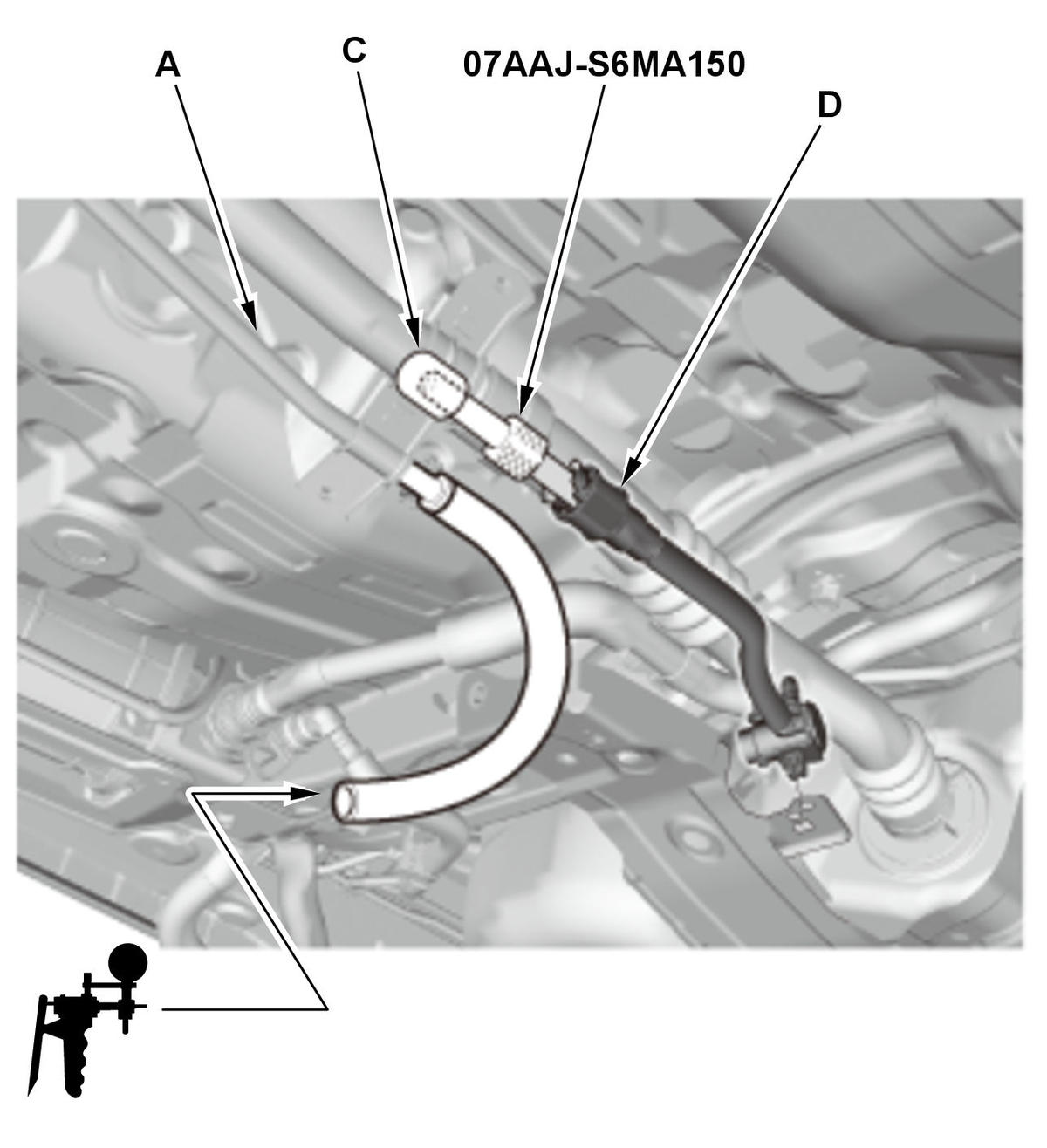

    9. Connect a vacuum pump/gauge, 0-30 inHg, to the suction line (A) with the joint in the fuel pressure gauge set, and apply vacuum to the line.

    • If the line holds vacuum, check for a blockage in the breather line between the fuel tank and the suction joint. If there is blockage, replace the fuel tank .
    • If the line does not hold vacuum, go to next step.
    GHH435240GHH435241Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH435240GHH435241Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 10. Raise the vehicle on the lift.

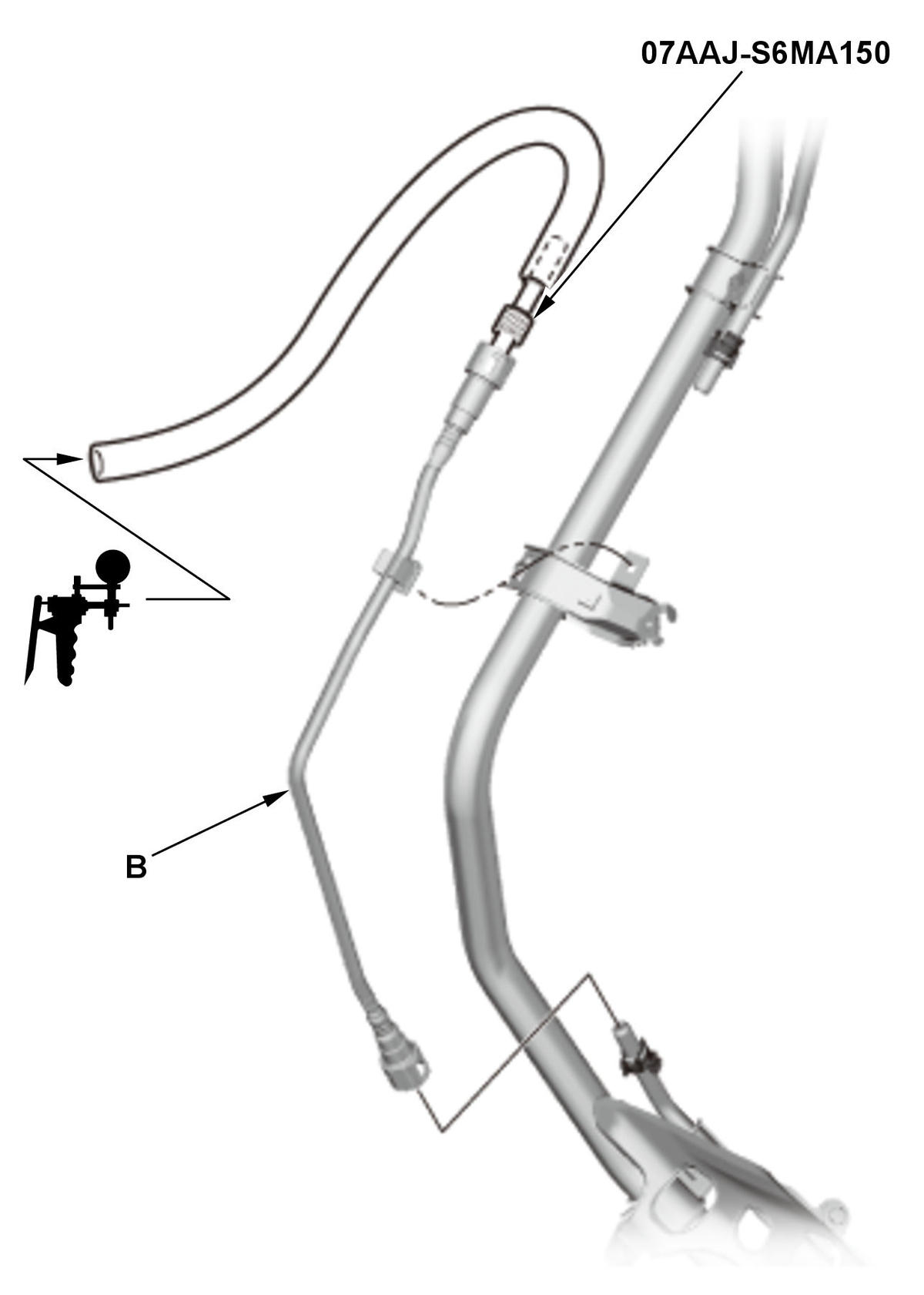

    11. Connect a vacuum pump/gauge, 0-30 inHg, to the fuel fill pipe side breather line (A), and apply air pressure to the line.

    • If the air pressure holds, or a blockage between the suction line and the fuel fill neck on the breather pipe, and replace the part that is causing the blockage.
    • If the air pressure does not hold, go to next step.

    NOTE: When check for the one way valve tube (B), remove it , then connect a vacuum pump/gauge, 0-30 inHg, with the joint in the fuel pressure gauge set, and apply vacuum or air pressure by one direction to the valve as shown.

    12. Remove the joint and the rubber cap (C) from the suction line (D), and reconnect the quick-connect fitting .

    13. Install the front center member .
    Pressure Hold Not hold
    Vacuum NG OK
    Pressurization OK NG
    GHH435242Courtesy of HONDA, U.S.A., INC.
    		 14. Lower the vehicle.

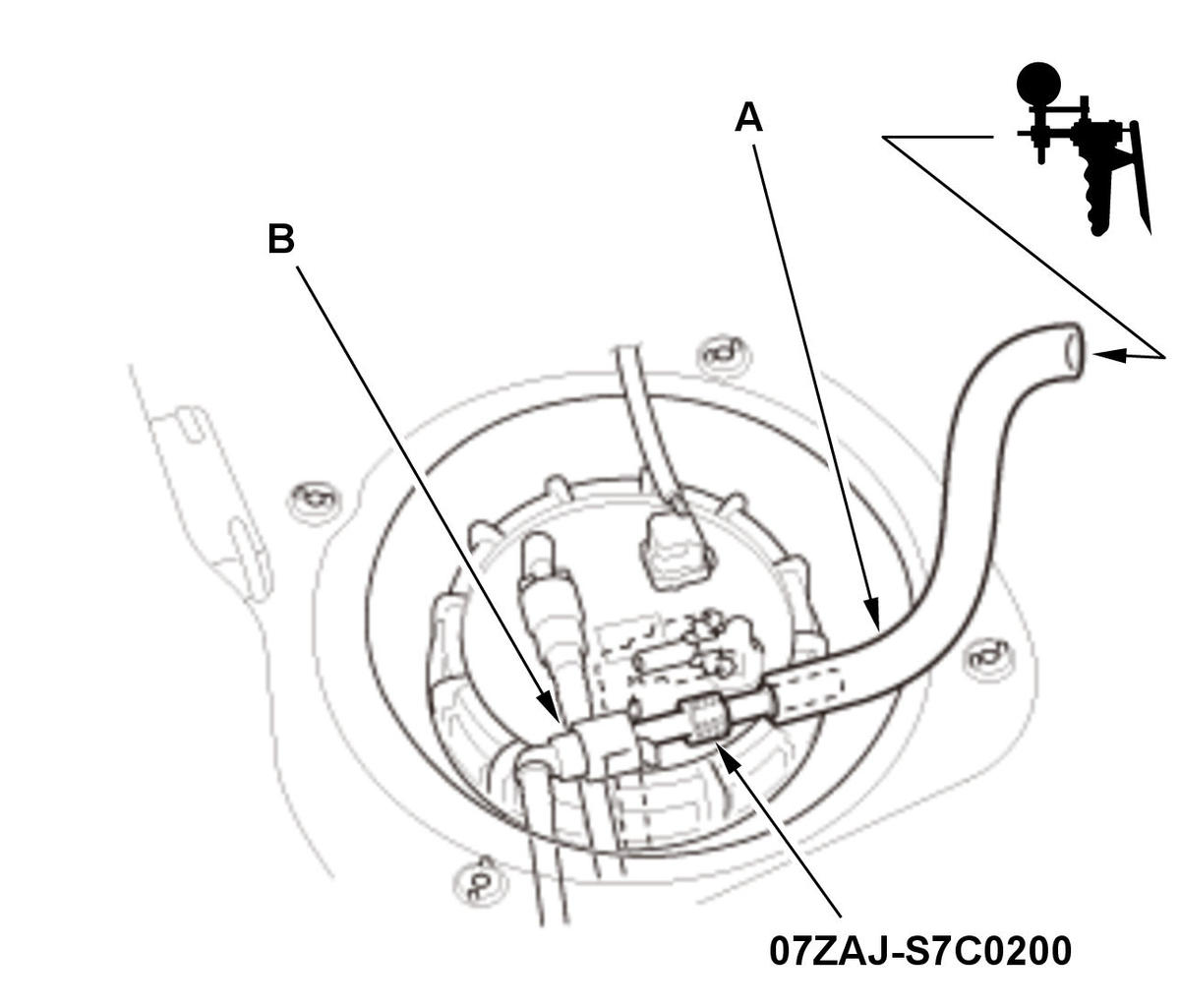

    15. Connect a vacuum pump/gauge, 0-30 inHg, to the suction line (A) with the joint in the fuel pressure gauge set, and apply pressure to the line.

    • If the air pressure holds, the breather line and the suction line are OK.
    • If the air pressure does not hold, check for a vacuum leak in the suction line, and replace the suction line if needed.

    16. Reconnect the quick-connect fitting (B) .

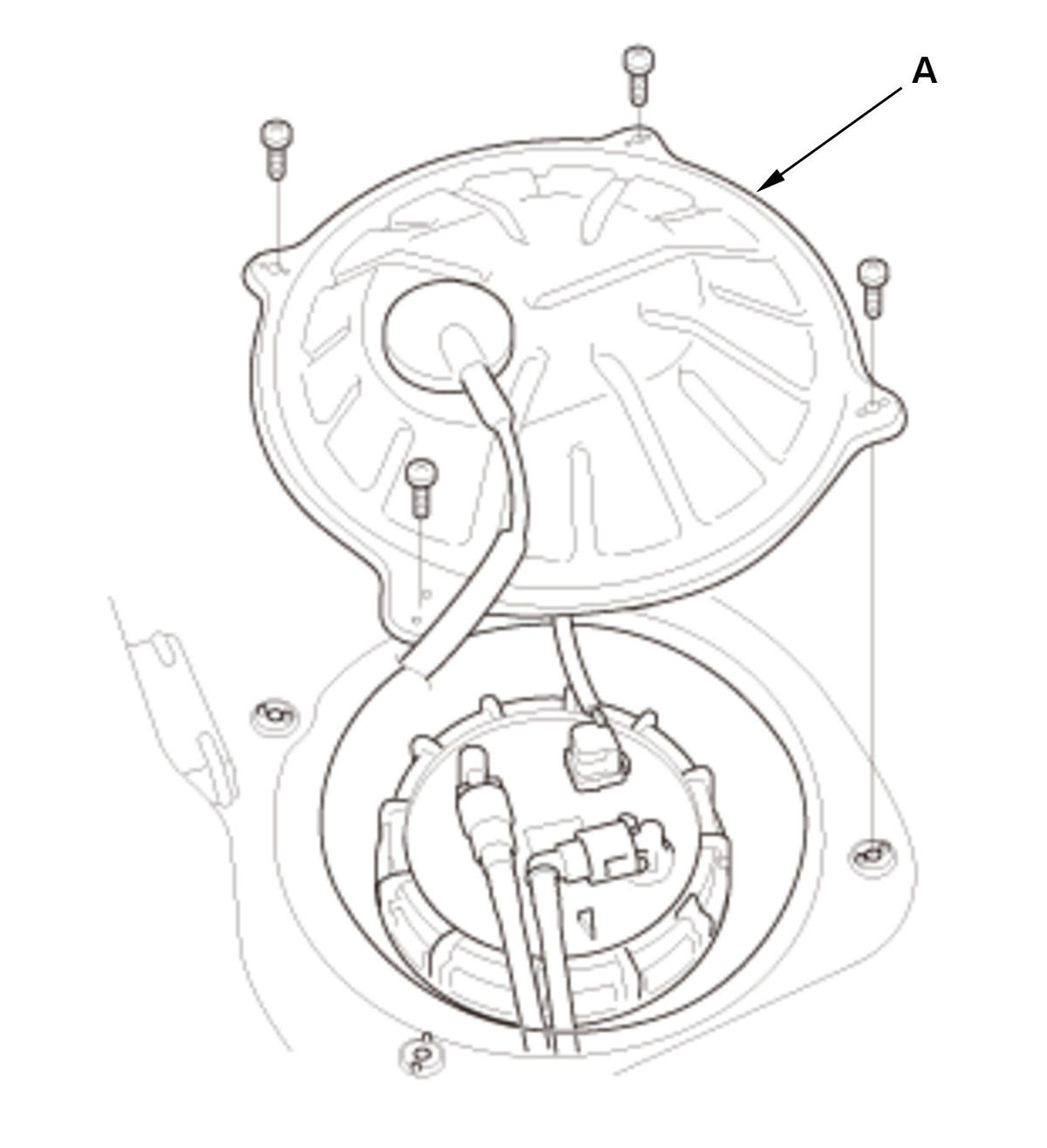

  5. Access Panel - Install
    GHH435243Courtesy of HONDA, U.S.A., INC.
    		 1. Install the access panel (A).

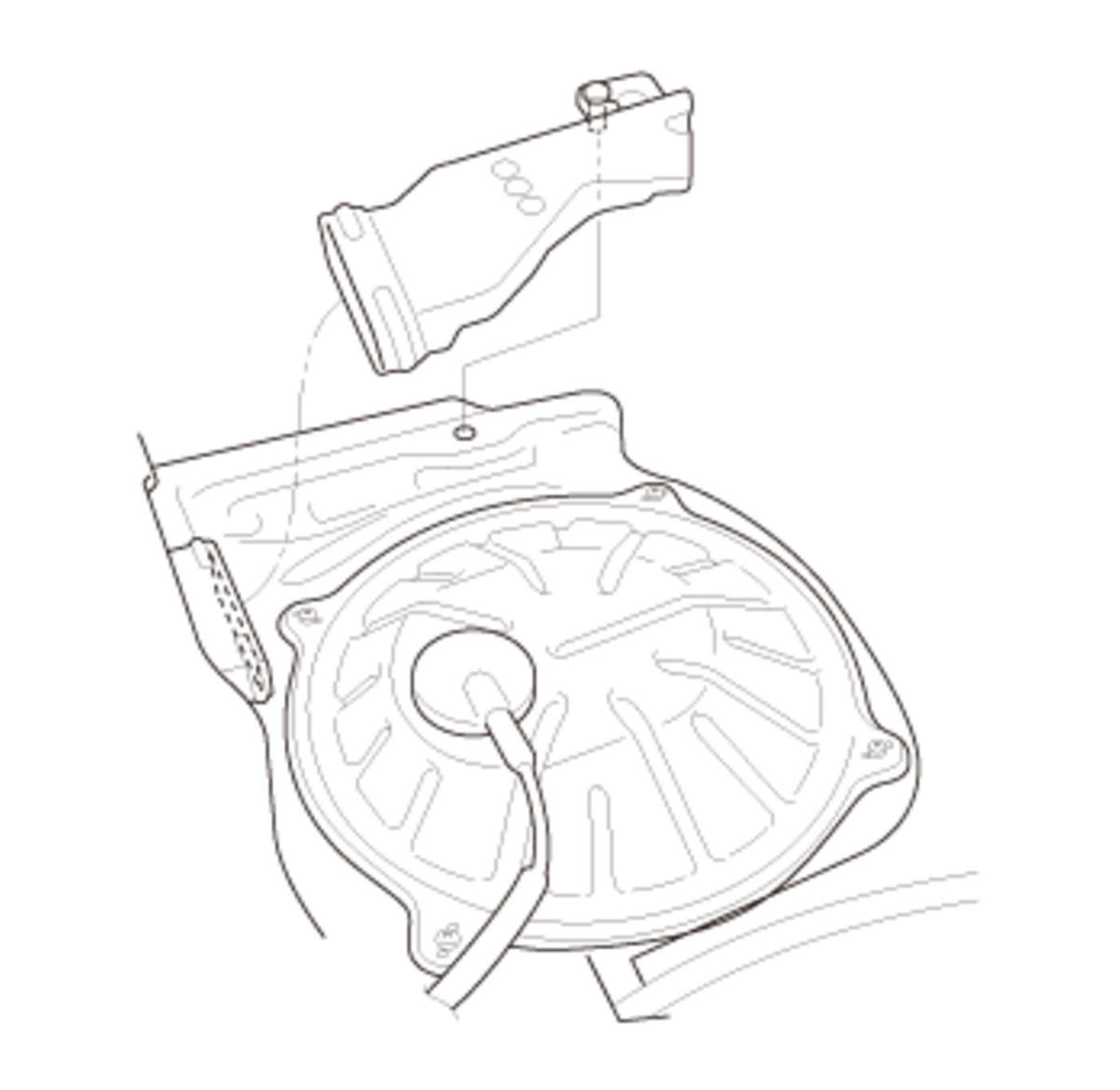

  6. Rear Heater Duct (Left Side) - Install
    GHH435244Courtesy of HONDA, U.S.A., INC.
  7. Front seat (driver's side) - Install
