VTEC/VTC System Description - VTC (L4)

Overview

The VTC system makes continuous intake valve timing changes based on operating conditions. Intake valve timing is optimized to allow the engine to produce maximum power. Cam angle is advanced to obtain the EGR effect and reduce pumping loss. The intake valve is closed quickly to reduce the entry of the air/fuel mixture into the intake port and improve the charging effect. The system reduces the cam advance at idle, stabilizes combustion, and reduces engine speed. If a malfunction occurs on the VTEC system, the VTC system control is disabled and the valve timing is fixed at the fully retarded position.

Courtesy of HONDA, U.S.A., INC.

Construction

VTC Actuator

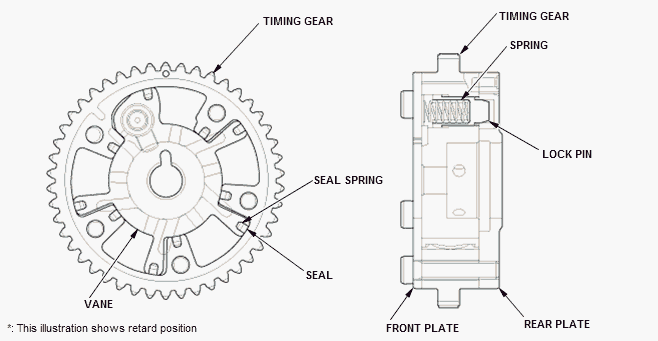

The VTC actuator is composed of a vane part that is operated by hydraulic pressure and a housing that is integrated with a timing gear, and is installed at the intake camshaft. When the VTC actuator vane rotates to the advance or retard position, the intake camshaft timing is changed.

Courtesy of HONDA, U.S.A., INC.

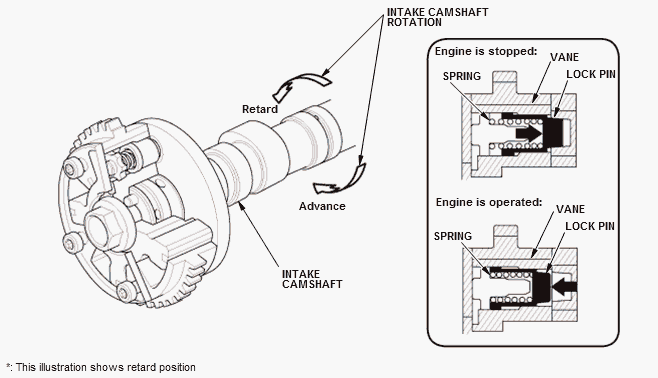

When the engine stops, the vane is fastened at the fully retard position by the lock pin so that the engine will start smoothly next time. After the engine starts, the vane turns to be free because the lock pin is set back against the spring tension by the oil pressure.

Courtesy of HONDA, U.S.A., INC.

VTC Oil Control Solenoid Valve

The VTC oil control solenoid valve controls oil pressure to the advance chamber/retard chamber of the VTC actuator according to the signal from the PCM. CMP sensor A detects the intake camshaft angle and sends the information to the PCM. The PCM controls the VTC oil control solenoid valve as the intake camshaft angle changes.

Courtesy of HONDA, U.S.A., INC.

CMP Sensor A

CMP sensor A detects intake camshaft angle position for the VTC system.

Courtesy of HONDA, U.S.A., INC.

Control

The VTC system diagram is as follows. The PCM advances or retards the valve timing based on the data from various sensors, and performs feedback-control to the VTC oil control solenoid valve.

Courtesy of HONDA, U.S.A., INC.

Operation

Advance Rotation Operation

When the advance chamber is charged with pressured oil from the VTC oil control solenoid valve, the intake camshaft rotates to the advanced side.

Courtesy of HONDA, U.S.A., INC.

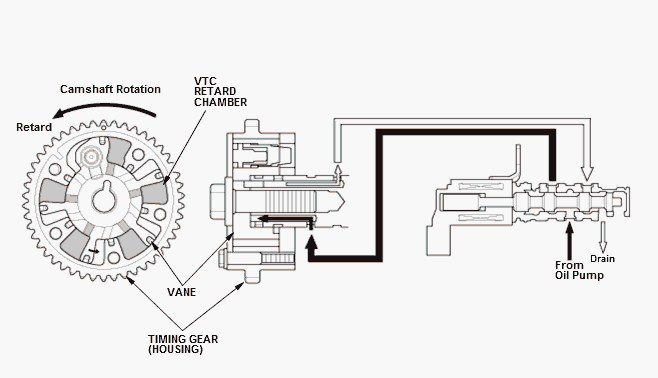

Retard Rotation Operation

When the retard chamber is charged with pressured oil from the VTC oil control solenoid valve, the intake camshaft rotates to the retarded side.

Courtesy of HONDA, U.S.A., INC.
