Engine Block Assembly Component Location Index (V6)

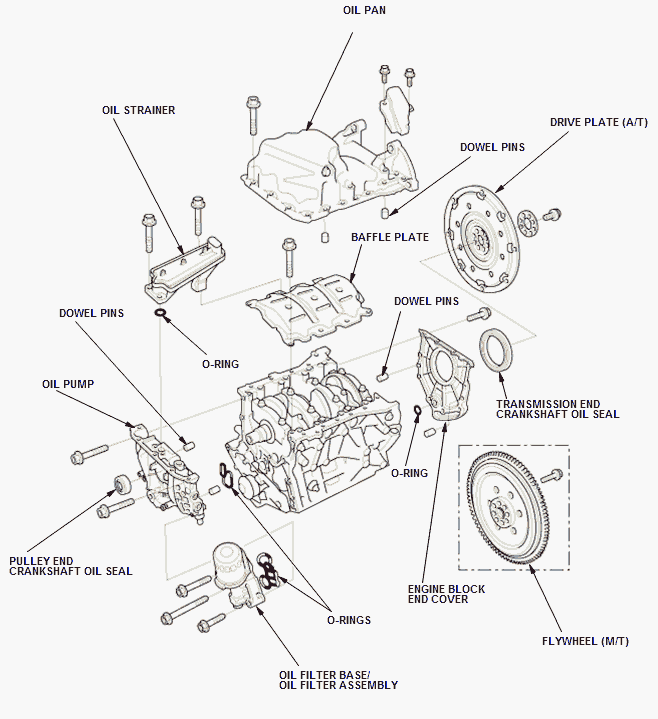

GHH60113

Courtesy of HONDA, U.S.A., INC.

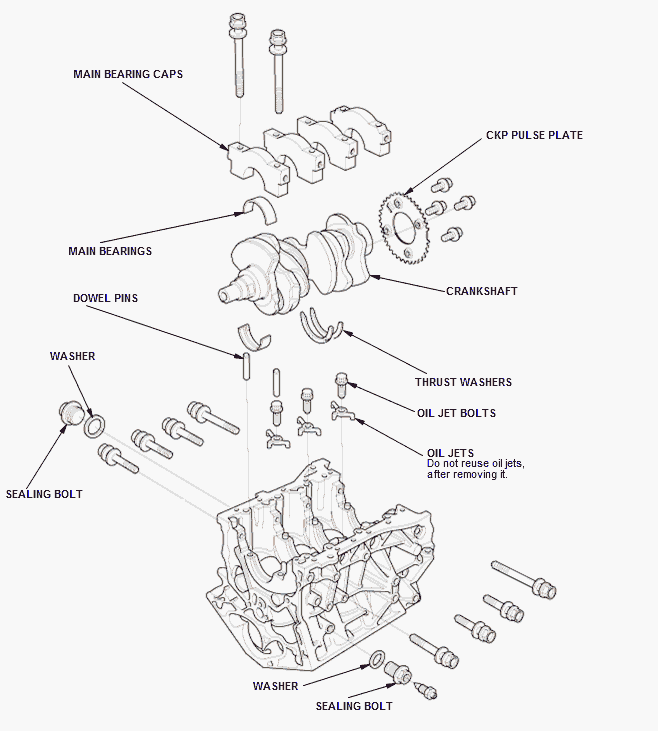

GHH60114

Courtesy of HONDA, U.S.A., INC.

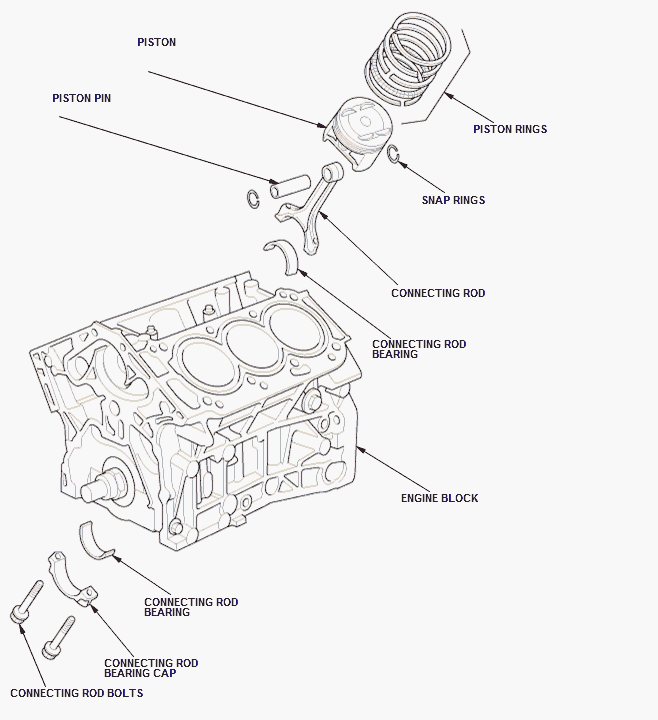

GHH60115

Courtesy of HONDA, U.S.A., INC.
