Electronic Throttle Control System Component Location Index (V6)

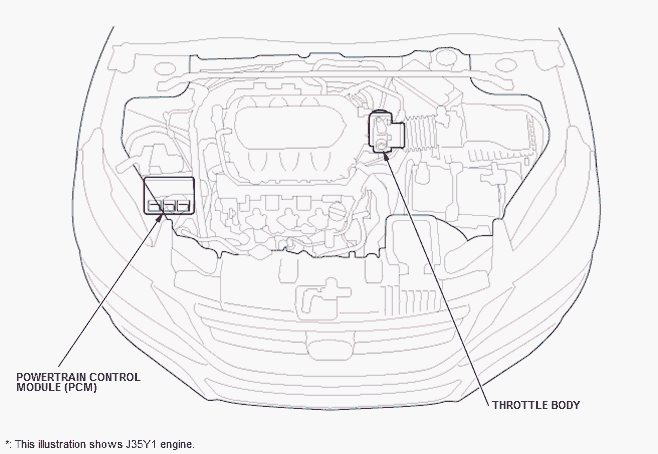

GHH60109

Courtesy of HONDA, U.S.A., INC.

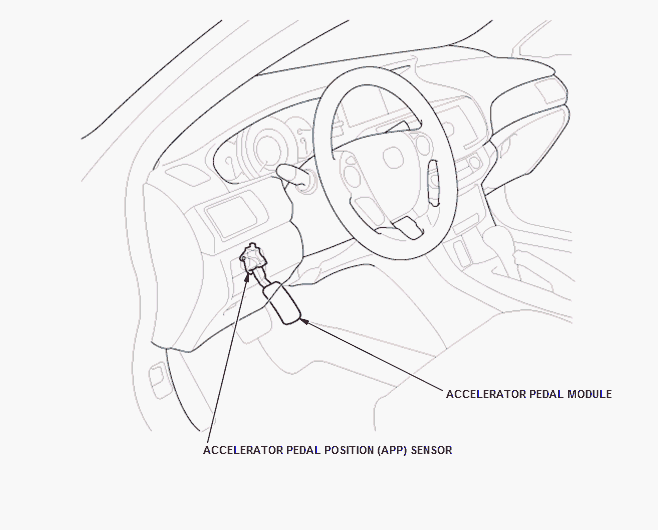

GHH60110

Courtesy of HONDA, U.S.A., INC.
