Keyless Access System Component Location Index: Notes

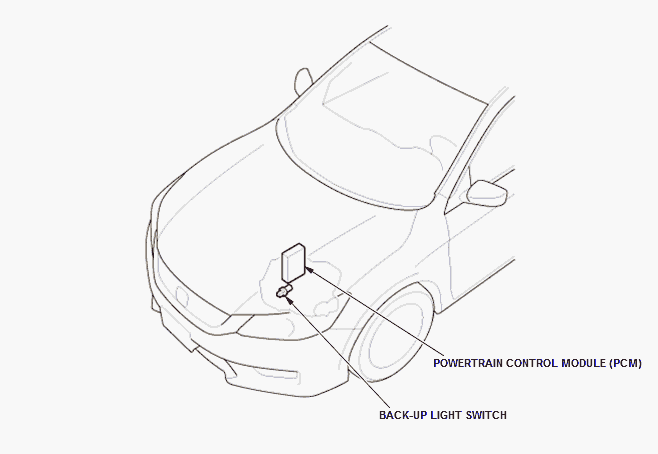

K24W1 Engine (M/T)

Courtesy of HONDA, U.S.A., INC.

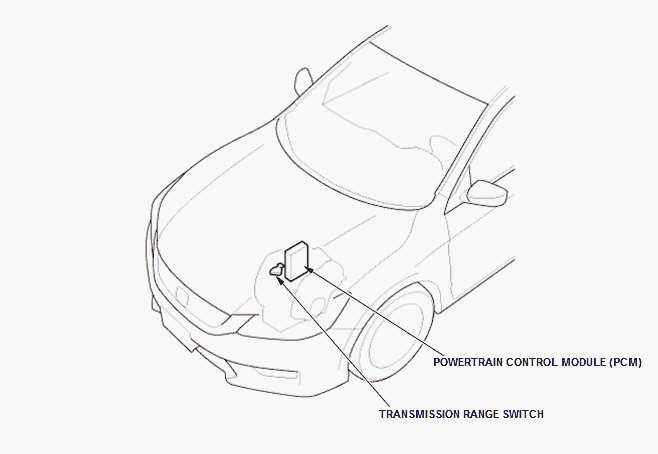

K24W1 Engine (CVT)

Courtesy of HONDA, U.S.A., INC.

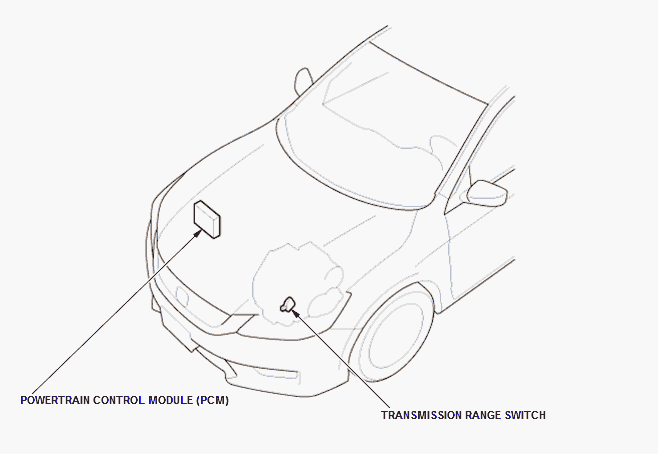

J35Y1 Engine

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

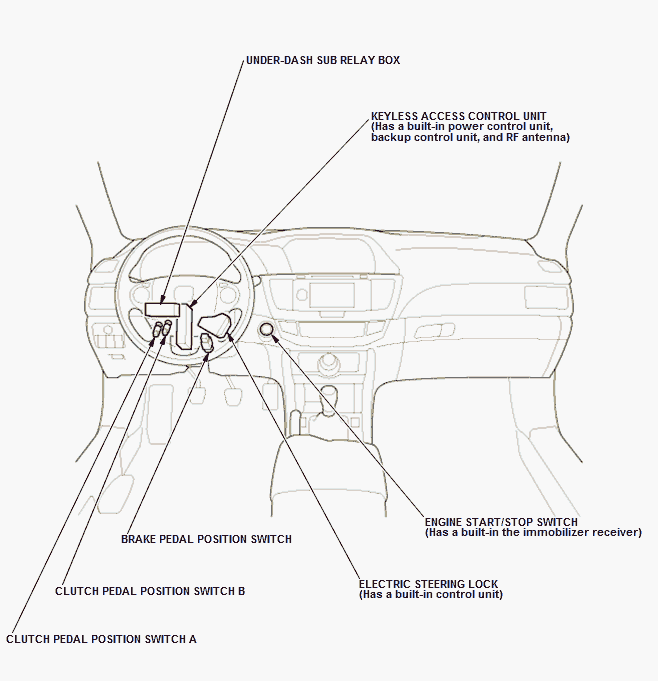

M/T

Courtesy of HONDA, U.S.A., INC.

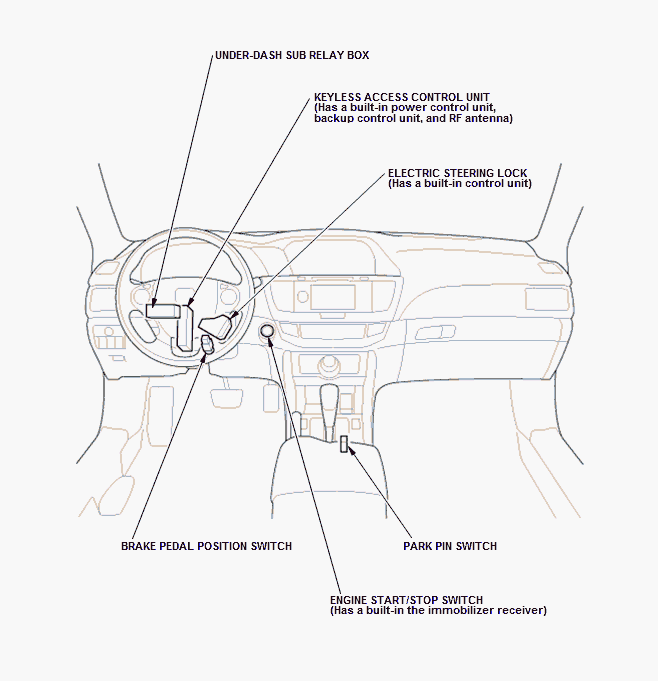

A/T and CVT

Courtesy of HONDA, U.S.A., INC.
