Steering Gearbox Mount Cushion Replacement: Replacement

NOTE:

Do not allow dust, dirt, or other foreign materials to enter the steering gearbox.

  1. Steering Gearbox - Remove
  2. Steering Gearbox Mount Cushion - Remove

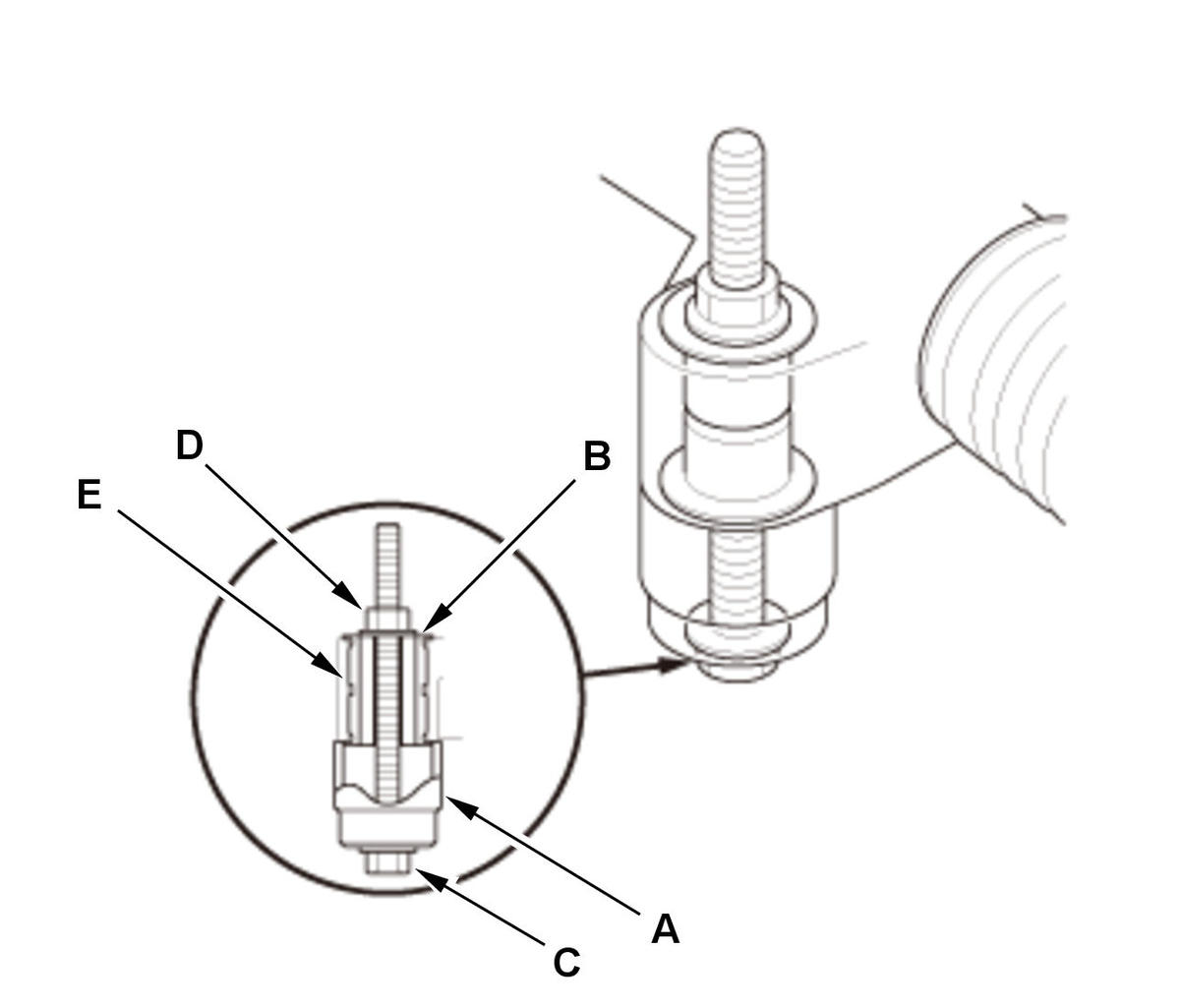

    GHH312676Courtesy of HONDA, U.S.A., INC.
    		 1. Position a 41 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C), and a 10 mm nut (D) as shown.

    2. Hold the flange bolt with a wrench, and tighten the nut with a wrench.

    3. Remove the gearbox mount cushion (E).
  3. Steering Gearbox Mount Cushion - Install

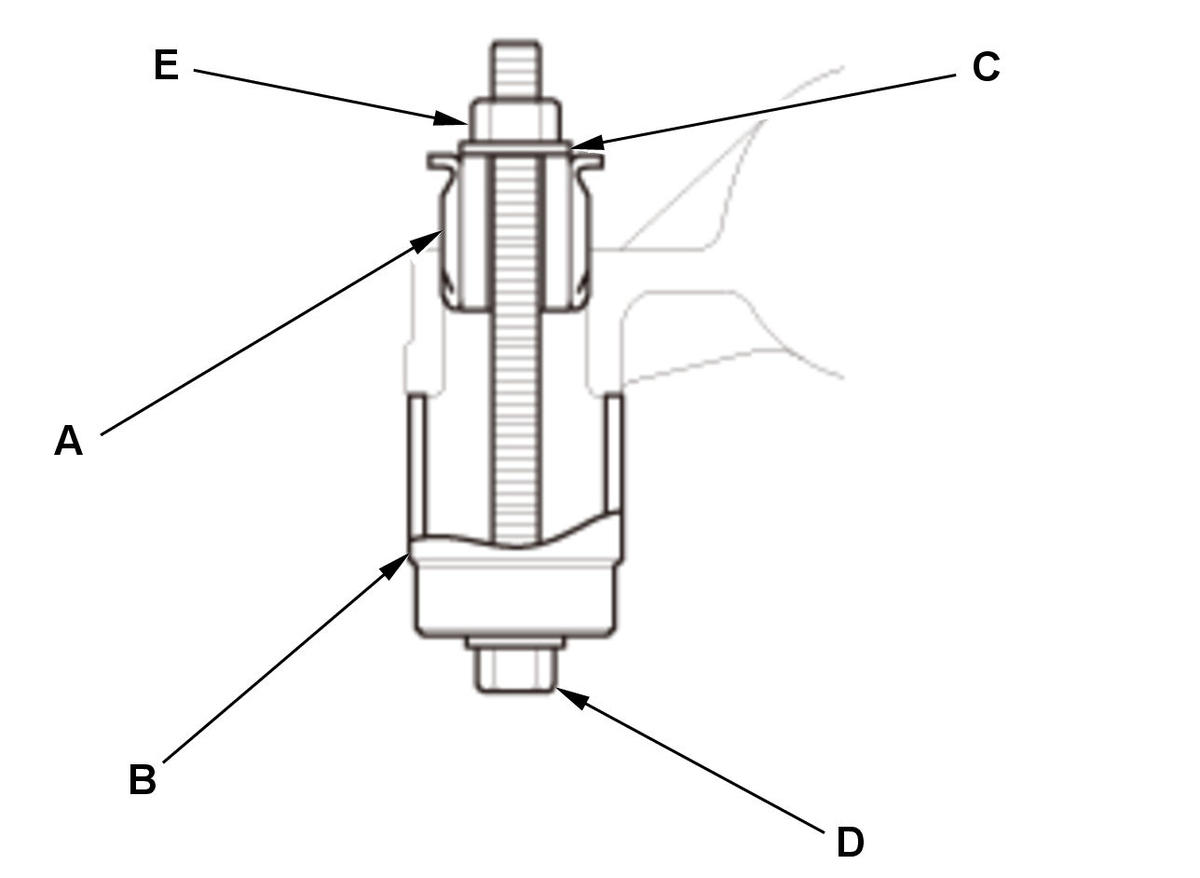

    GHH312677Courtesy of HONDA, U.S.A., INC.
    		 1. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place the mount cushion on the gearbox mounting cushion hole.

    2. Position a 41 mm socket (B) on the flange part of the gearbox housing with a washer (C), a flange bolt (D), and a nut (E) as shown.

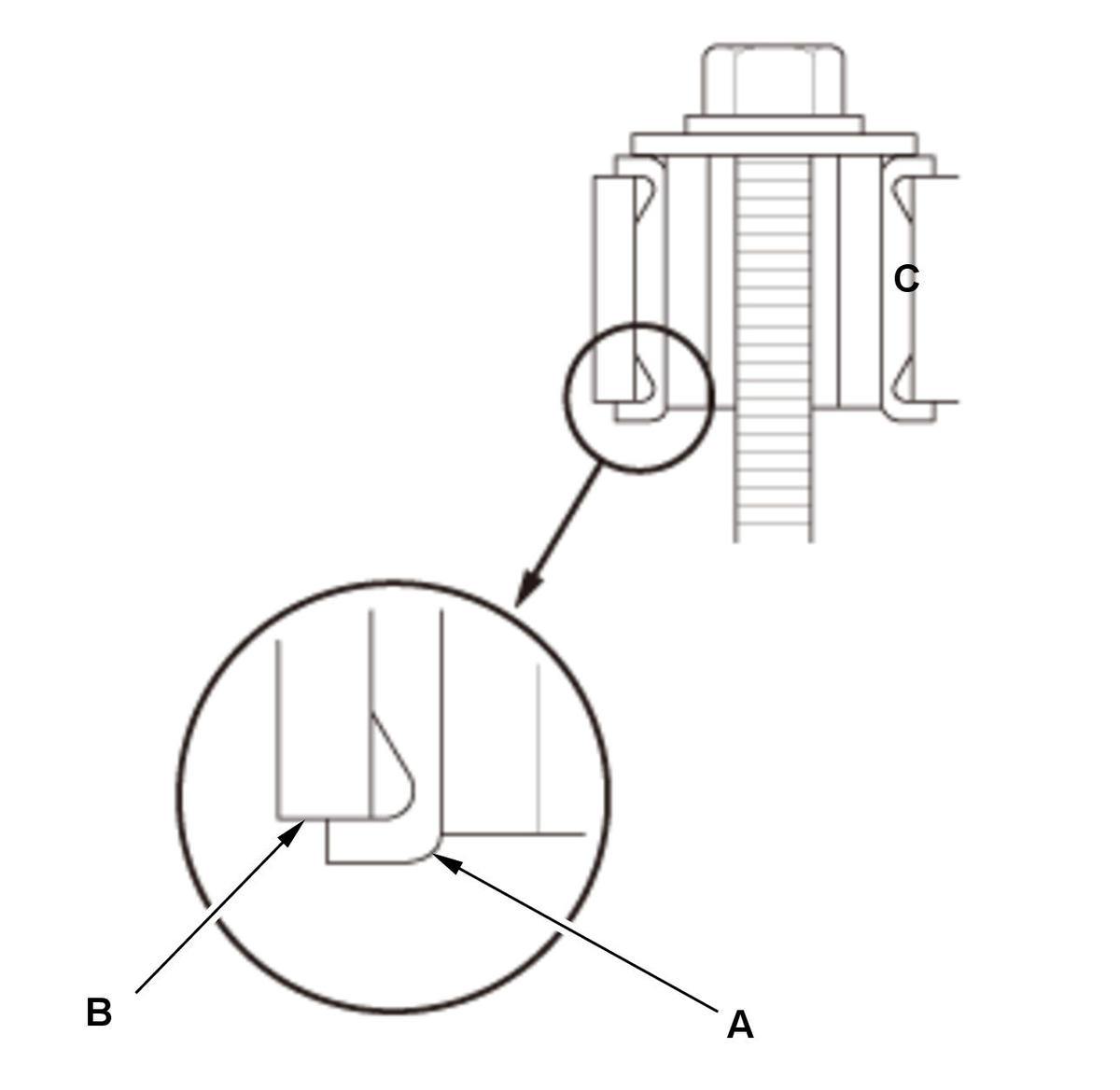

    GHH312678Courtesy of HONDA, U.S.A., INC.
    		 3. Install the gearbox mount cushion by tightening the nut until the mount cushion edges (A) properly fits on the gearbox flange surfaces (B).
  4. Steering Gearbox - Install
