Entering Audio System Diagnostic Mode On An Android Display Audio (A15110C)

Publication date: 2015-11-01
Reference number: A15110C

ENTERING AUDIO SYSTEM DIAGNOSTIC MODE ON AN ANDROID DISPLAY AUDIO

TECHNICAL SERVICE BULLETIN

Reference Number(s): A15110C, Date of Issue: November, 2015

HONDA:

2016 Pilot

AFFECTED VEHICLES

2016 Pilot

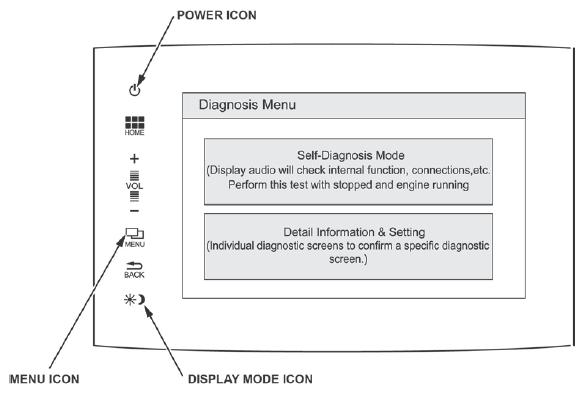

Entering the audio system diagnostic mode on an Android Display Audio takes a little more precise timing than what you might be used to. Once the audio unit or audio-navigation unit is fully booted up, you need to select and hold the Power, MENU, and Display Mode icons at exactly the same time until the Select Diagnosis Items menu comes up.
