Lane Keeping Assist System (LKAS) - System Diagram

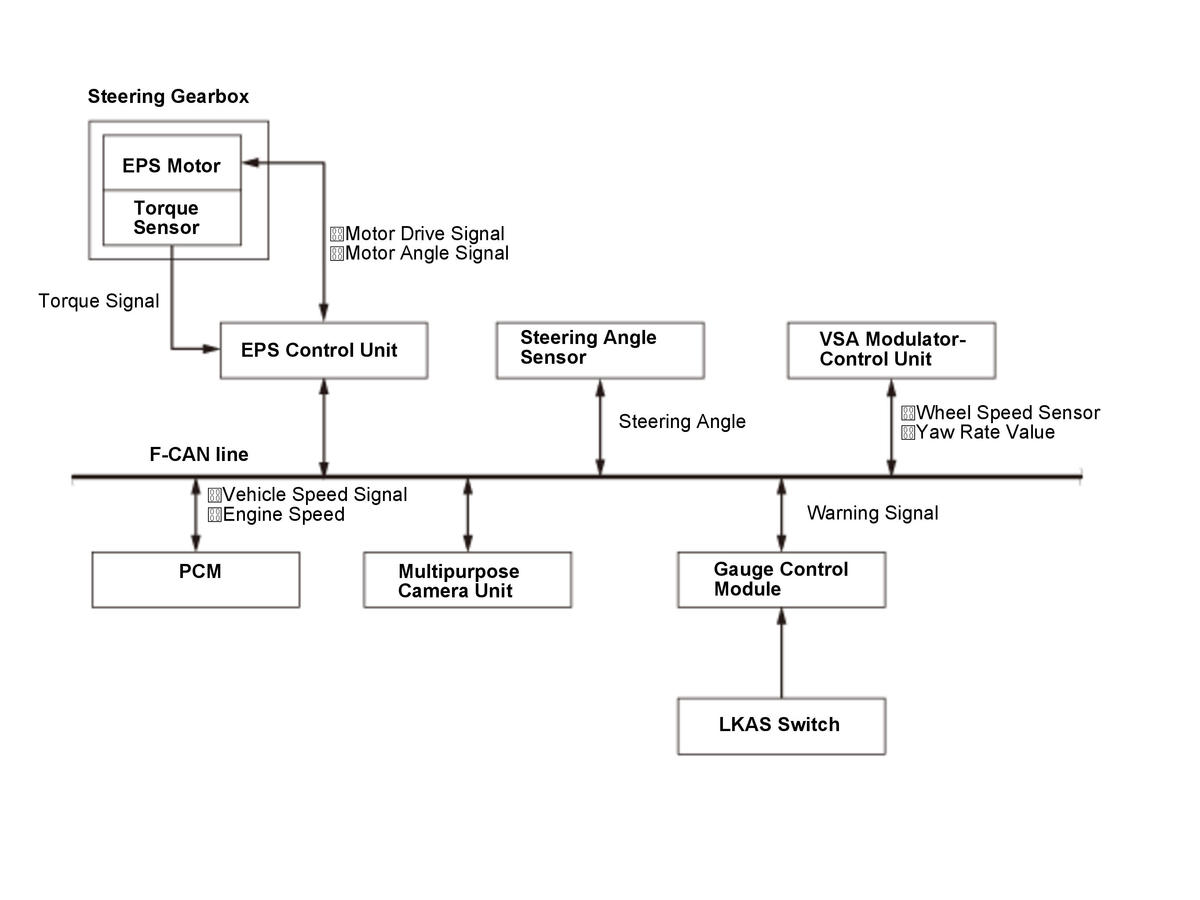

LKAS Control Block Diagram

GHH305803

Courtesy of HONDA, U.S.A., INC.
