Exploded View

  1. Steering Wheel

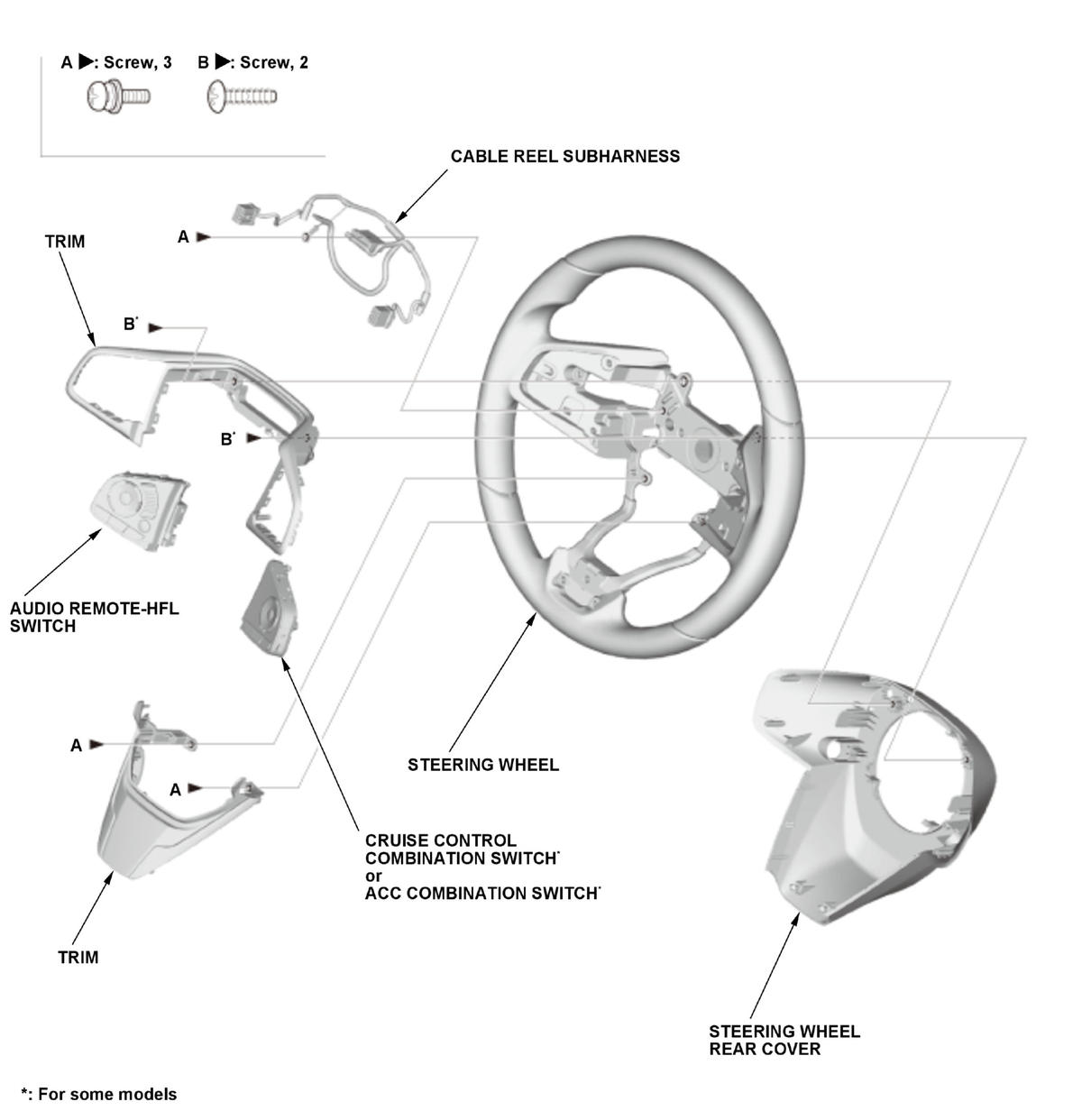

    Without paddle shifter

    GHH412108Courtesy of HONDA, U.S.A., INC.

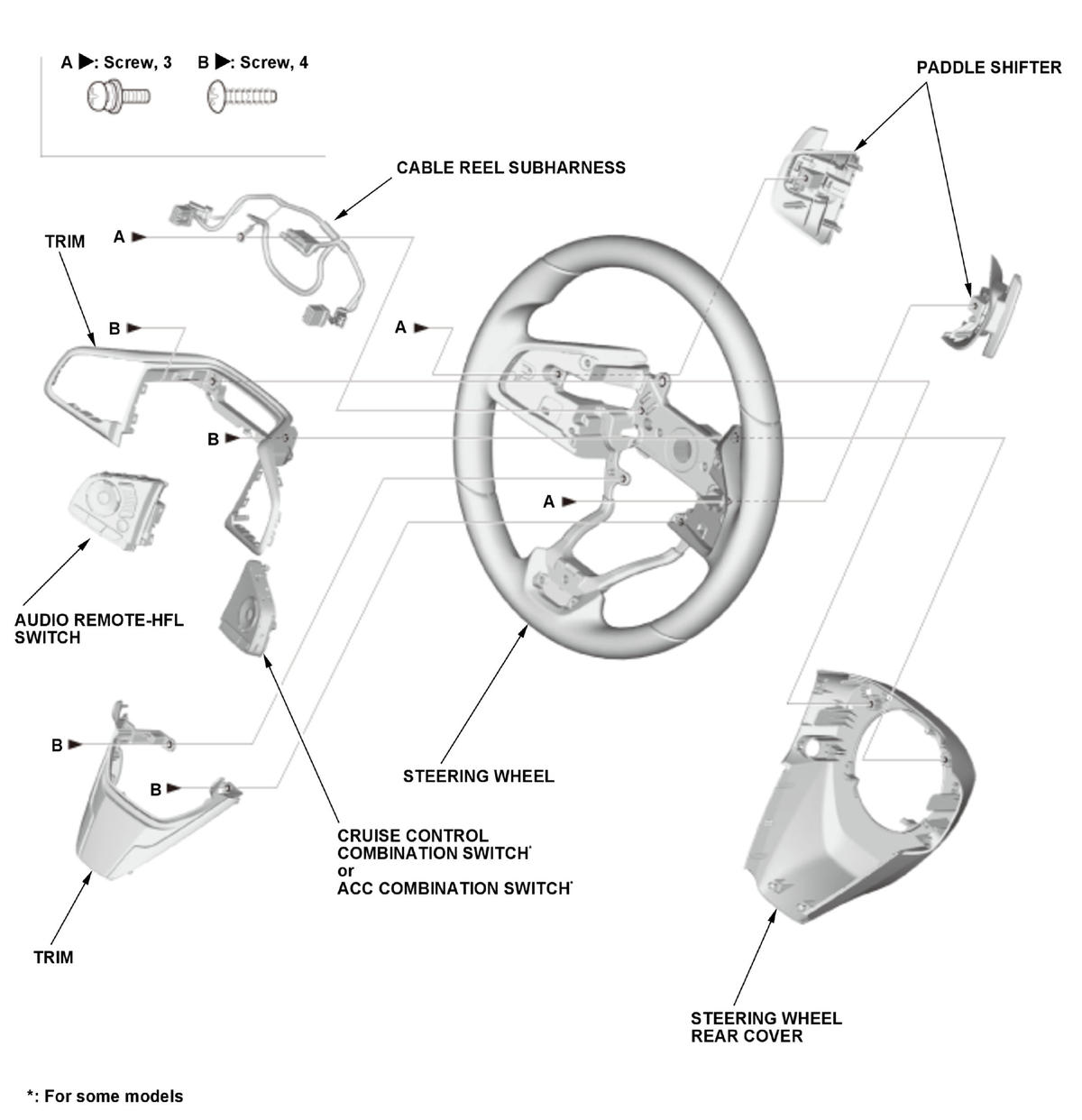

    With paddle shifter

    GHH412109Courtesy of HONDA, U.S.A., INC.
