Exploded View

NOTE:  For these operations, refer to the complete procedure as needed.

  1. Steering Gearbox

    Exploded view

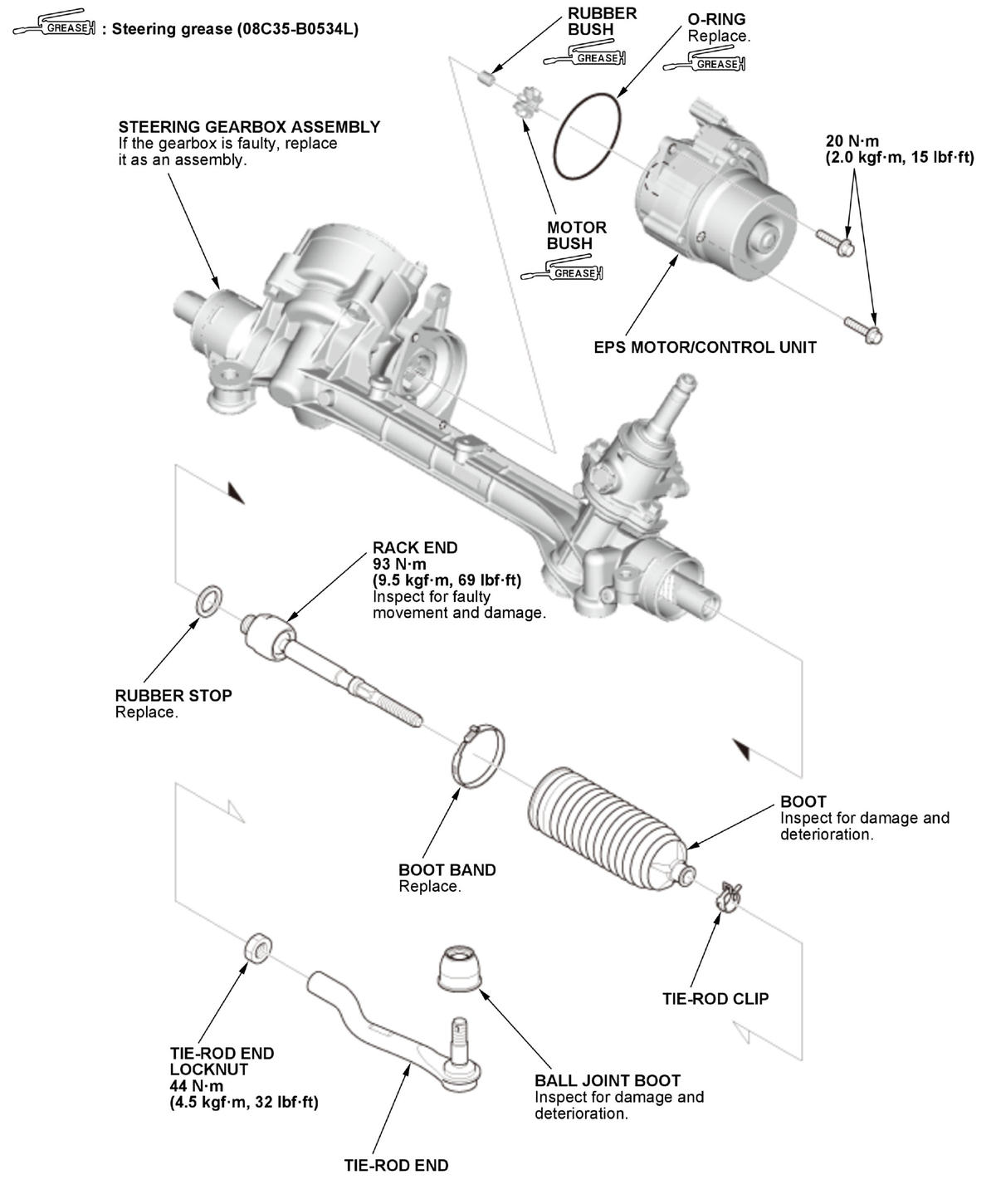

    Fig 1: Exploded View Of Steering Gearbox Components With Torque Specifications
    GHH412107Courtesy of HONDA, U.S.A., INC.
