Removal & Installation

1. 12 Volt Battery Terminal - Disconnect
2. ELD - Remove

Courtesy of HONDA, U.S.A., INC.

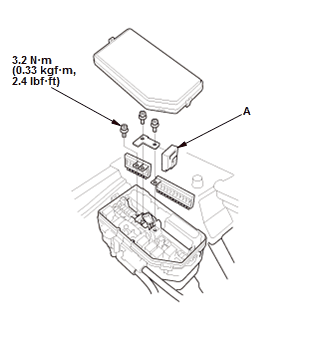

1. Remove the ELD (A).
3. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: Make sure the connector is firmly locked into place.
