DTC P0011: VTC System Malfunction

NOTE:

• Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions SystemsHow to Troubleshoot the CVT System(CVT System) .
• If DTC P0010 and/or P0341 are stored at the same time as DTC P0011, troubleshoot those DTCs first, then recheck for DTC P0011.

DTC (PGM-FI)

• 1. Oil pressure check:

  - 1. Turn the vehicle to the ON mode.

  - 2. Clear the DTC with the HDS.

  - 3. Start the engine.

  - 4. Watch the low oil pressure indicator in the gauge with the engine running.

  Is the low oil pressure indicator on?

  YES

  Check the engine oil level. If the level is OK, check the engine oil pressure .

  NO

  Go to step 2.

• 2. Problem verification:

  - 1. Select the VTC TEST in the INSPECTION MENU with the HDS.

  Is the result OK?

  YES

  The failure is not duplicated. Go to step 3.

  NO

  Go to step 6.

• 3. VTC system check (HDS data list check):

  - 1. Test-drive at a steady speed between 19-37 mph (30-60 km/h) for 10 minutes.

  - 2. Check the parameter(s) below with the HDS.

  Signal	Threshold		Current conditions
  	Values	Unit	Values	Unit
  VTC STATUS	ON

  Do the current condition(s) match the threshold?

  YES

  Go to step 4.

  NO

  Go to step 3, and recheck.

• 4. VTC system check (OBD STATUS check):

  - 1. Test-drive at a steady speed between 19-37 mph (30-60 km/h) for 10 minutes.

  - 2. Monitor the OBD STATUS for DTC P0011 with the HDS.

  DTC Description	OBD STATUS
  P0011 VTC System Malfunction

  Does the HDS indicate FAILED?

  YES

  Go to step 5.

  NO

  If the HDS indicates PASSED, intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the VTC oil control solenoid valve and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot. If the HDS indicates NOT COMPLETED, go to step 2 and recheck.

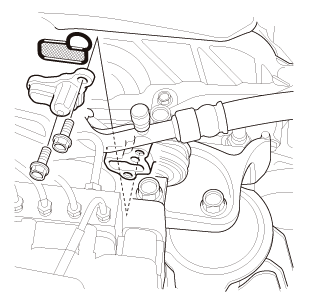

• 5. VTC strainer check:

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Remove the VTC strainer.

  - 3. Check the VTC strainer for clogging.

  Courtesy of HONDA, U.S.A., INC.

  Is the strainer OK?

  YES

  Go to step 6.

  NO

  Clean the VTC strainer, replace the engine oil filter and engine oil .

• 6. VTC oil control solenoid valve check:

  - 1. Test the VTC oil control solenoid valve .

  Is the valve OK?

  YES

  Go to step 7.

  NO

  Replace the VTC oil control solenoid valve .

• 7. VTC actuator check:

  - 1. Inspect the VTC actuator .

  Is the VTC actuator OK?

  YES

  Check the VTC system oil passages, and clean them if needed.

  NO

  Replace the VTC actuator .
