Engine Oil Pump Removal & Installation: Removal

1. Oil Pump Chain - Remove
2. Oil Pump - Remove

Courtesy of HONDA, U.S.A., INC.

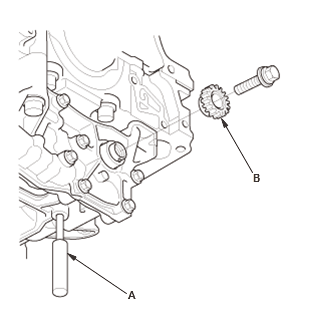

1. To hold the front balancer shaft, insert a 6 mm long pin punch (A) (Snap-on PPC108LA or equivalent) into the maintenance hole in the balancer shaft holder and through the front balancer shaft

2. Remove the oil pump sprocket (B).

Courtesy of HONDA, U.S.A., INC.

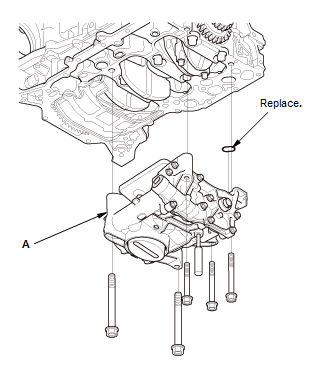

3. Remove the oil pump (A).
