Engine Oil Pump Removal & Installation: Installation

Courtesy of HONDA, U.S.A., INC.

1. Align the dowel pin (A) on the rear balancer shaft with the mark (B) on the oil pump.

Courtesy of HONDA, U.S.A., INC.

2. To hold the front balancer shaft, insert a 6 mm long pin punch (A) (Snap-on PPC108LA or equivalent) into the maintenance hole in the balancer shaft holder and through the front balancer shaft.

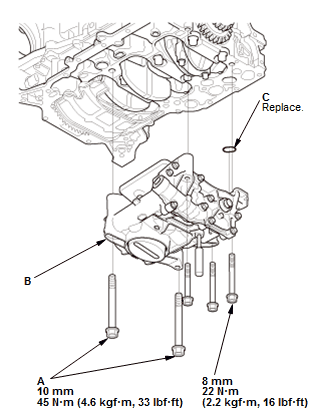

Fig 1: Oil Pump Mounting Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

3. Apply new engine oil to the threads of the oil pump mounting bolts (A), then loosely install the oil pump (B) with a new O-ring (C)

4. Tighten the oil pump mounting bolts.

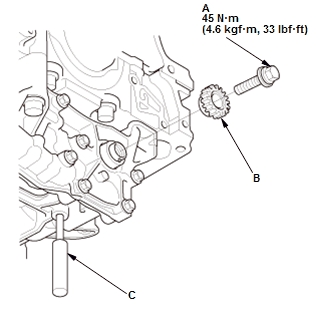

Fig 2: Oil Pump Sprocket Mounting Bolt With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

5. Apply new engine oil to the threads of the oil pump sprocket mounting bolt (A)

6. Install the oil pump sprocket (B)

7. Remove the 6 mm long pin punch (C).
