Engine Oil Pan Removal & Installation: Removal

1. Drive Belt - Remove
2. Splash Shield - Remove
3. A/C Compressor - Move

Courtesy of HONDA, U.S.A., INC.

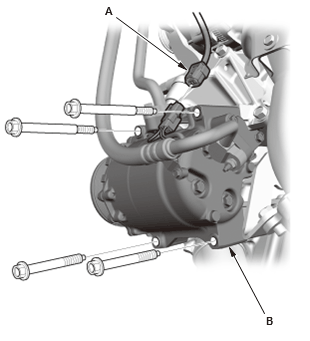

1. Disconnect the connector (A) and remove the A/C compressor (B).

NOTE:
- Do not disconnect the A/C hoses.
- Do not bend the A/C hoses excessively.
- Hang the A/C compressor with a wire tie.
4. Engine Oil - Drain
5. Exhaust Pipe A and Exhaust Pipe Bracket - Remove
6. Engine - Support the engine with a transmission jack and a wood block under the oil pan.

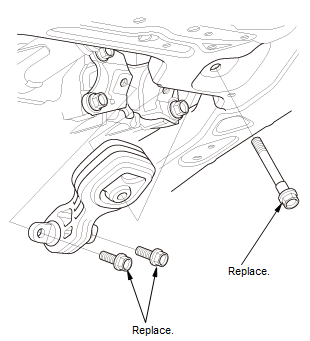

7. Lower Torque Rod - Remove

Courtesy of HONDA, U.S.A., INC.
8. Transmission Jack - Remove

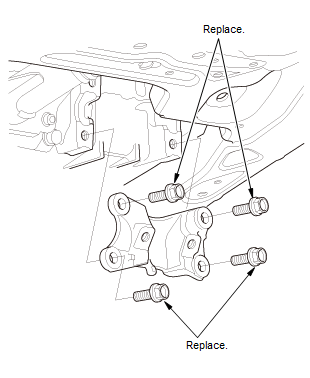

9. Lower Torque Rod Bracket - Remove

Courtesy of HONDA, U.S.A., INC.

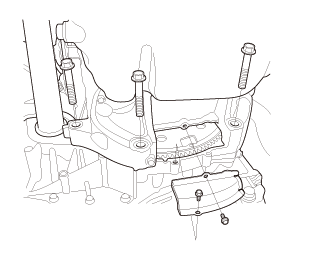

10. Torque Converter Case Cover and Transmission Mounting Bolt - Remove

Courtesy of HONDA, U.S.A., INC.

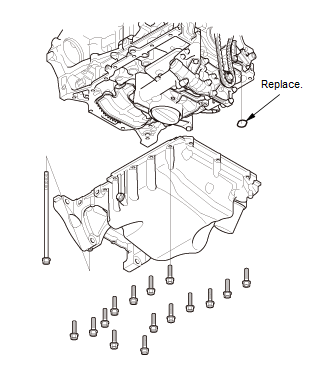

11. Oil Pan - Remove

Courtesy of HONDA, U.S.A., INC.

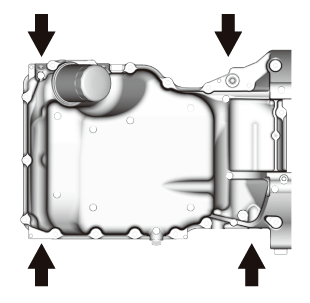

1. Loosen the bolts, then using a flat blade screwdriver, separate the oil pan from the lower block in the places shown.

Courtesy of HONDA, U.S.A., INC.
2. Remove the oil pan.
