Removal & Installation

1. Transmission Assembly - Remove
2. Drive Plate Assembly - Remove

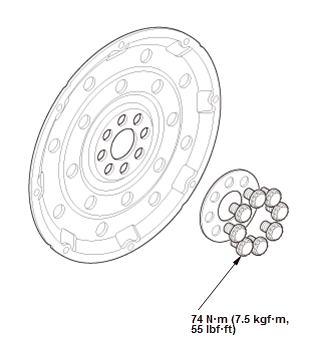

Fig 1: Drive Plate Assembly With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Remove the drive plate and the washer.
3. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: Tighten eight bolts in a crisscross pattern in at least two steps.
