Notes
Injector Removal & Installation: Notes
Description/Tool Number
Courtesy of HONDA, U.S.A., INC.

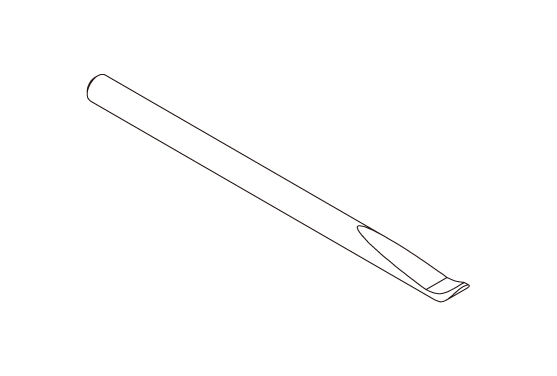

Pick Up Tool 070AC-5A0A100
Courtesy of HONDA, U.S.A., INC.

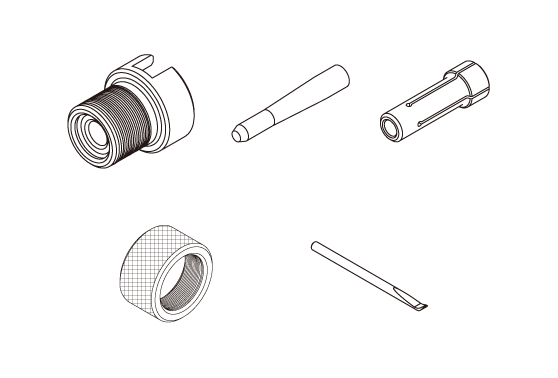

Injector Seal Installer Kit 070AG-5A0A100
Injector Removal and Installation
Special Tools Required
Description/Tool Number
Courtesy of HONDA, U.S.A., INC.
Pick Up Tool 070AC-5A0A100
Courtesy of HONDA, U.S.A., INC.
Injector Seal Installer Kit 070AG-5A0A100
