Test Procedure

Courtesy of HONDA, U.S.A., INC.

8P Connector Type

Courtesy of HONDA, U.S.A., INC.

14P Connector Type

Courtesy of HONDA, U.S.A., INC.

1. Test the rear power window motor in each direction by connecting 12 volt battery power and ground at the rear power window switch connector (A) according to the table. When the motor stops running, disconnect 12 volt battery power immediately.

2. If the motor does not run or fails to run smoothly, remove the rear power window regulator , then go to step 2.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

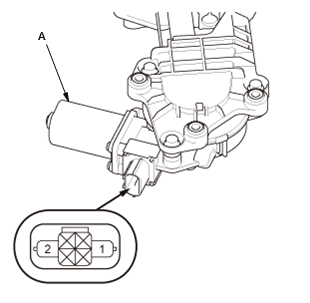

3. Test the rear power window motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 4. If the motor does not run or fails to run smoothly, the rear power window motor is faulty; replace the rear door power window regulator . If the motor runs smoothly, replace the wire harnesses or adjust the rear door glass .
