CR-V EX-L, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows - Testing & Troubleshooting
>>
Description
>>
Power Windows System Description - System Diagram
Power Windows System Description - System Diagram
Without Door Multiplex Control Unit
Courtesy of HONDA, U.S.A., INC.

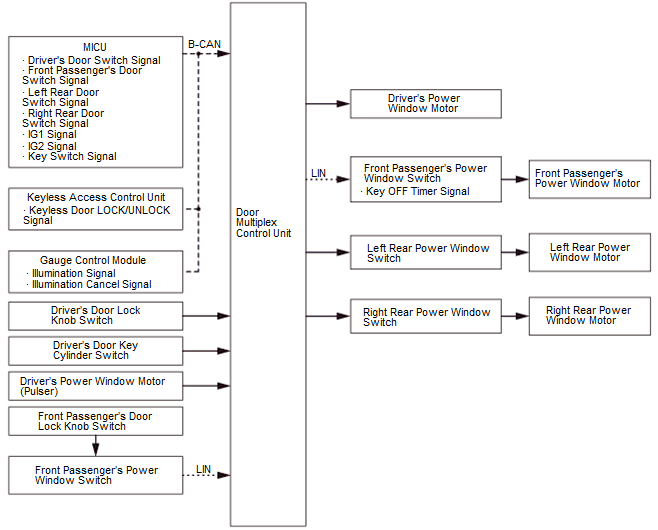

With Door Multiplex Control Unit
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
