Keyless Access System Circuit Diagram

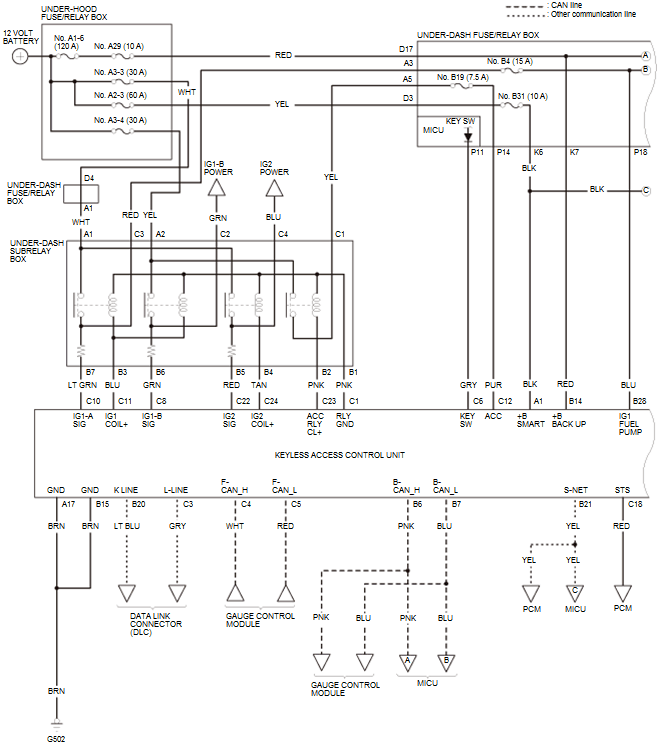

GHH51366

Courtesy of HONDA, U.S.A., INC.

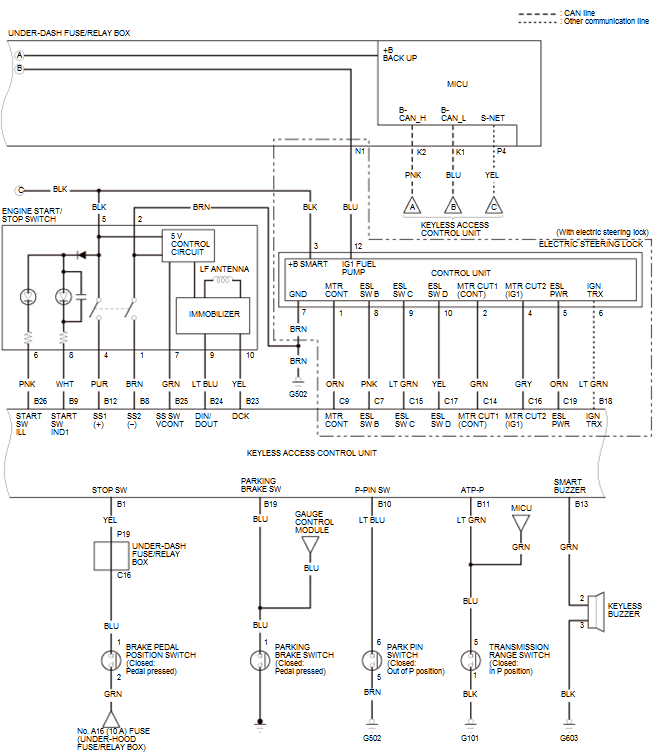

GHH51367

Courtesy of HONDA, U.S.A., INC.

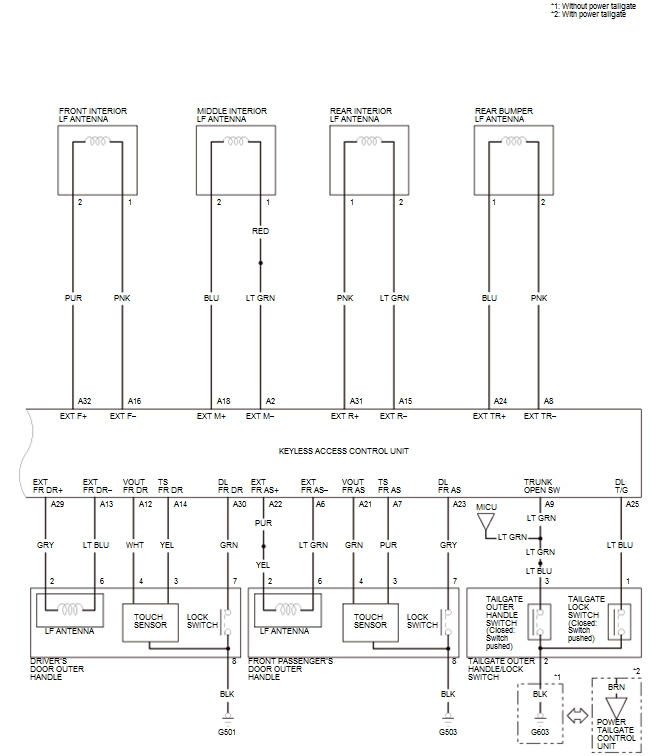

GHH51368

Courtesy of HONDA, U.S.A., INC.
