Test Procedure

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Driver's Seat Front Cover - Remove

  NOTE:  If you are removing the driver's seat front cover, you do not need to remove the driver's seat.

• 2. Driver's Power Seat Motor - Test

  Courtesy of HONDA, U.S.A., INC.

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect power seat control unit connector A.

  2. Test the motor by applying 12 volt battery power and ground at the power seat control unit connector A on the seat harness according to the table. When the motor stops running, disconnect 12 volt battery power immediately.

  3. If the motor does not run or fails to run smoothly, remove the driver's seat , then go to step 4.

  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

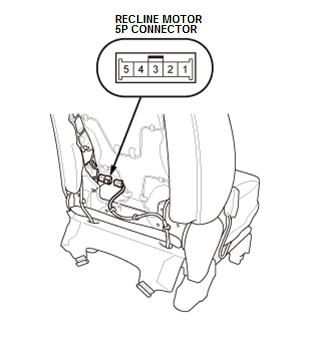

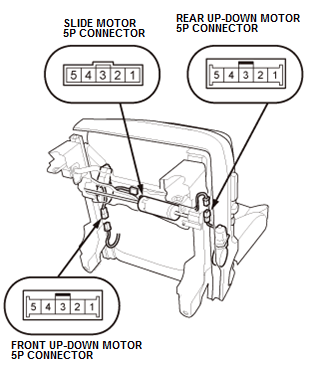

  4. Turn over the driver's seat-back cover as needed . 5. Disconnect these connectors: Front up-down motor connector Rear up-down motor connector Recline motor connector Slide motor connector NOTE:  All connectors shown are the terminal side of the male terminals.

  Courtesy of HONDA, U.S.A., INC.

  6. Test each motor in each direction by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately 7. If the motor does not run or fails to run smoothly, replace: NOTE:  The recline motor is part of the seat frame. Slide motor Front up-down motor Rear up-down motor Recline motor If the motor runs smoothly, replace the driver's seat wire harness.

• 3. All Removed Parts - Install - Install the parts in the reverse order of removal.
