Driving Position Memory System (DPMS) Circuit Diagram

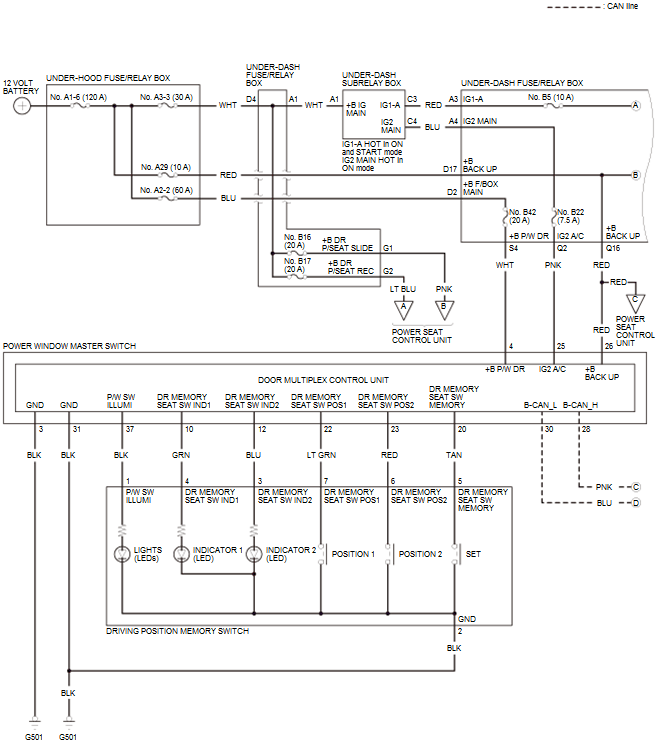

GHH50492

Courtesy of HONDA, U.S.A., INC.

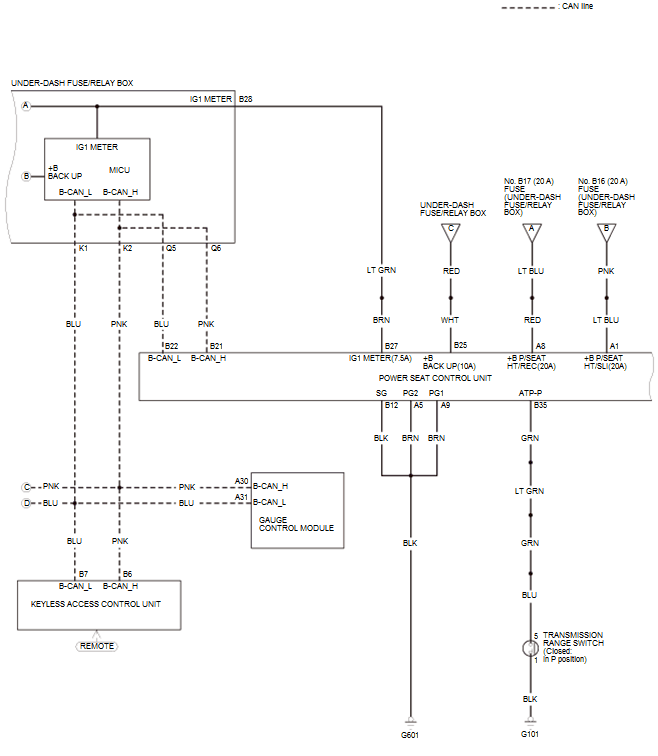

GHH50493

Courtesy of HONDA, U.S.A., INC.

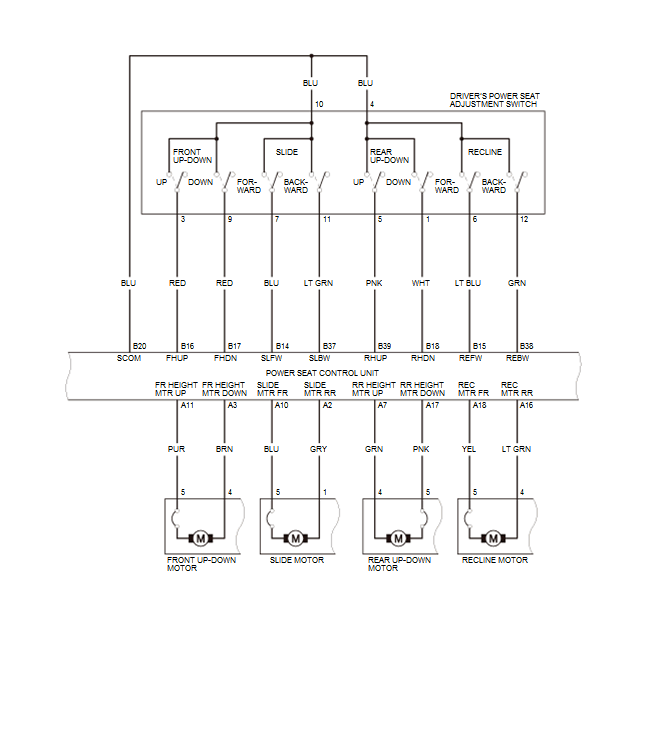

GHH50494

Courtesy of HONDA, U.S.A., INC.

GHH50495

Courtesy of HONDA, U.S.A., INC.
