Ignition Key Switch Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repair or servicing.
  1. Remove the steering column upper and lower covers (see COLUMN COVER REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A).

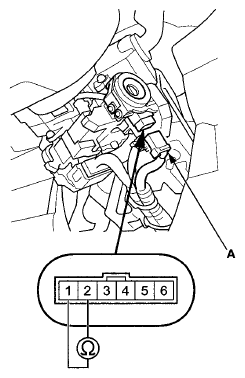

    Fig 1: Identifying 6P Connector
    G08089001Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between terminals No. 1 and No. 2.
    • There should be continuity with the key in the ignition switch.
    • There should be no continuity with the key removed.
  4. If the continuity is not as specified, replace the steering lock assembly (see CHECK OF LOCK LEVER FORCE ).
