Removal & Installation

  1. Crankshaft - Remove
  2. Oil Jet - Remove

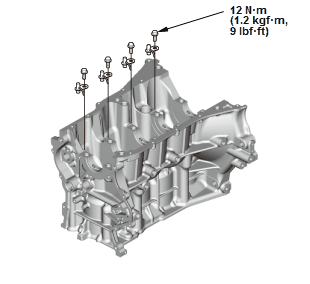

    Fig 1: Engine Oil Jet With Torque Specifications
    GHH81253Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install
      1. Install the parts in the reverse order of removal.
