Engine Assembly Torque Rod Removal and Installation: Installation

  1. Torque Rod Mounting Bolt - Loosely Install
    M/T

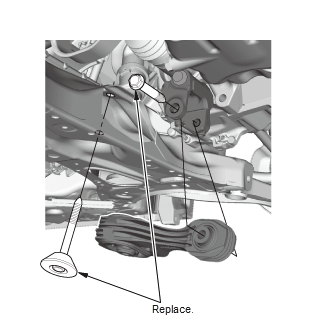

    GHH81248GHH81249Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    CVT

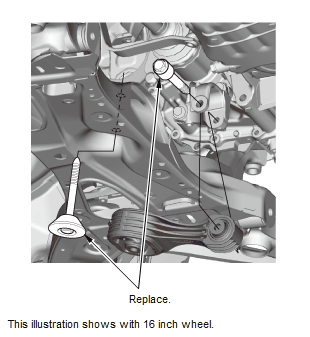

    GHH81248GHH81249Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Loosely install the new torque rod mounting bolts.
  2. Jack and Wood Block - Remove
  3. Torque Rod Mounting Bolt - Tighten
      1. Tighten the torque rod mounting bolts in the numbered sequence shown.

    M/T

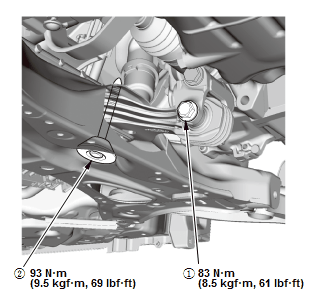

    Fig 1: Tightening Sequence Of Torque Rod Mounting Bolts With Torque Specifications
    GHH81250Courtesy of HONDA, U.S.A., INC.

    CVT

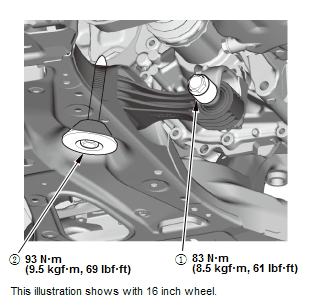

    Fig 2: Tightening Sequence Of Torque Rod Mounting Bolts With Torque Specifications
    GHH81251Courtesy of HONDA, U.S.A., INC.
  4. Engine Undercover - Install
