Camshaft Timing Inspection: Inspection

Cylinder Head Cover - Remove

Camshaft Timing - Inspect

Courtesy of HONDA, U.S.A., INC.

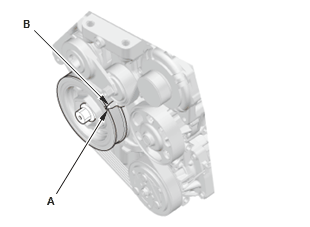

1. Turn the crankshaft to align No. 1 position at top dead center (TDC); the white mark on the crankshaft pulley (A) lines up with the pointer (B).

Courtesy of HONDA, U.S.A., INC.

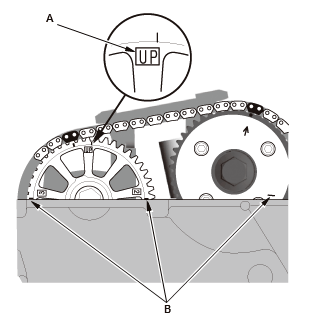

2. Check the No. 1 piston at top dead center (TDC). The "UP" mark (A) on the camshaft sprocket should be at the top, and the TDC grooves (B) on the camshaft sprocket should aline up with the top edge of the cylinder head.

Courtesy of HONDA, U.S.A., INC.

3. Make sure that the position shown (A) of the camshaft maintenance hole aligns with the upper camshaft holder groove (B).

NOTE:

If the marks are not aligned, rotate the crankshaft 360 degrees, and recheck the camshaft pulley mark.
If the marks still do not align, remove the cam chain and reinstall the cam chain properly .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
