Removal & Installation

1. Drain Bolt and Sealing Bolt - Remove

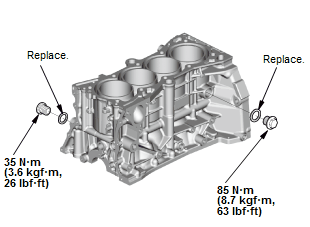

Fig 1: Drain Bolt & Sealing Bolt With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
2. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: When installing the drain bolt and/or sealing bolt, always use new washers.
