Removal & Installation

1. Vehicle - Lift
2. Engine - Lift and support the engine with a jack and a wood block under the oil pan.
3. Upper Torque Rod - Remove

Courtesy of HONDA, U.S.A., INC.

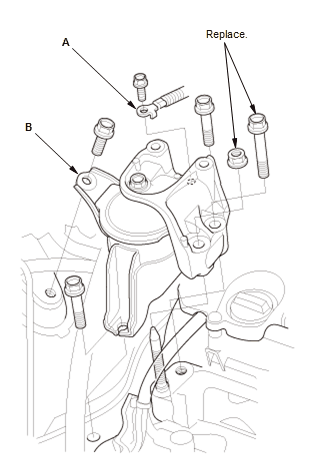

4. Side Engine Mount - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the ground cable (A)

2. Remove the side engine mount (B).
5. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.
