Removal & Installation

1. Rocker Arm Oil Control Valve - Remove

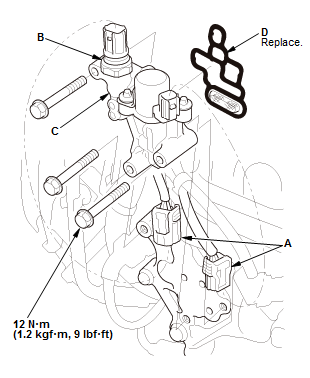

USA and Canada models

Courtesy of HONDA, U.S.A., INC.

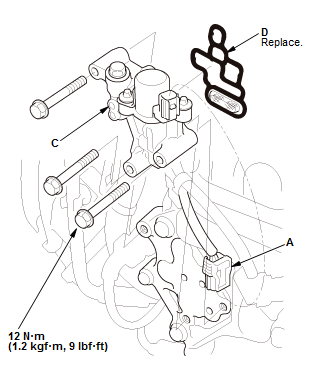

Mexico models

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector(s) (A).

2. USA and Canada models: Remove the rocker arm oil pressure switch (B) as needed

3. Remove the rocker arm oil control valve assembly (C) and the rocker arm oil control valve filter (D).
2. All Removed Parts - Install the parts in the reverse order of removal with a new rocker arm oil control valve filter.
