Removal & Installation

1. Splash Shield - Remove
2. Engine - Support the engine with a transmission jack and a wood block under the oil pan.

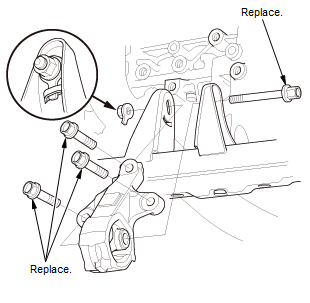

3. Front Engine Mount - Remove

Courtesy of HONDA, U.S.A., INC.
4. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.
