Front A/C Line Replacement

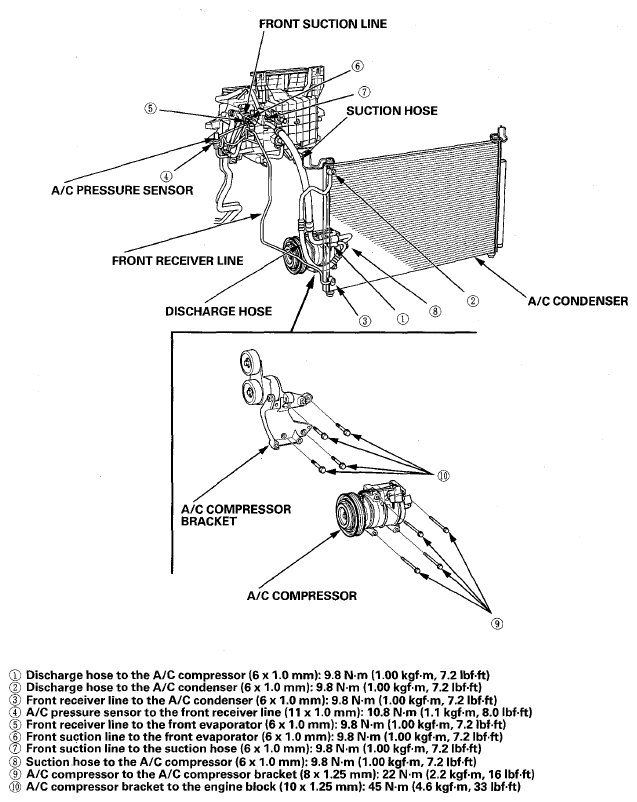

Fig 1: Front A/C Line With Torque Specifications

G08090314

Courtesy of AMERICAN HONDA MOTOR CO., INC.
