Blower Unit Removal/Installation

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ) and passenger's center console trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the wire harness clip (A) and the self-tapping screw (B), then remove the self-tapping screws (C) and the passenger's heater duct (D).

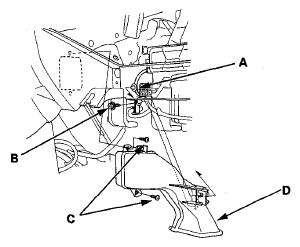

Fig 1: Identifying Passenger's Heater Duct, Self-Tapping Screws And Wire Harness Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clips (A), the bolts, and the glove box frame (B).

Fig 2: Identifying Harness Clips And Glove Box Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown in illustration, and discard it.

Fig 3: Identifying Plastic Cross Brace
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A) from the front blower motor. Remove the wire harness clips (B).

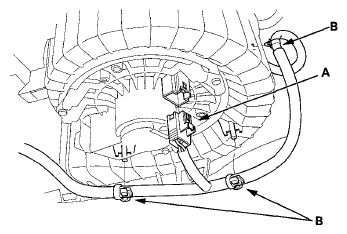

Fig 4: Identifying Front Blower Motor Connector And Wire Harness Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A) from the recirculation control motor. Remove the bolts, the self-tapping screws, the mounting nuts, and the blower unit (B).

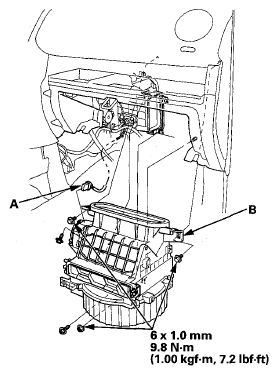

Fig 5: Recirculation Control Motor Connector And Blower Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
