Auxiliary Under-Hood Fuse/Relay Box
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

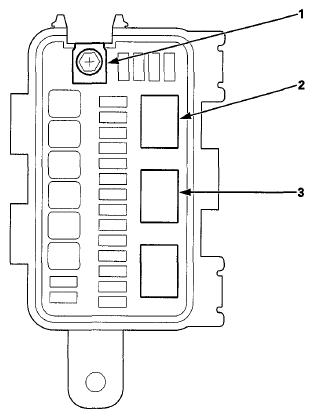

Courtesy of AMERICAN HONDA MOTOR CO., INC. AUXILIARY UNDER-HOOD FUSE/RELAY BOX REFERENCE TABLE
| Socket |
Ref |
Terminal |
Connects to |
Notes |
| Rear window wiper motor relay 1 (FORWARD) |
2 |
5 |
- |
- |
| Rear window wiper motor relay 2 (BACKWARD) |
3 |
5 |
- |
- |
| T5 |
1 |
- |
Starter cable |
- |
